1957 Volkswagen Beetle Survivor

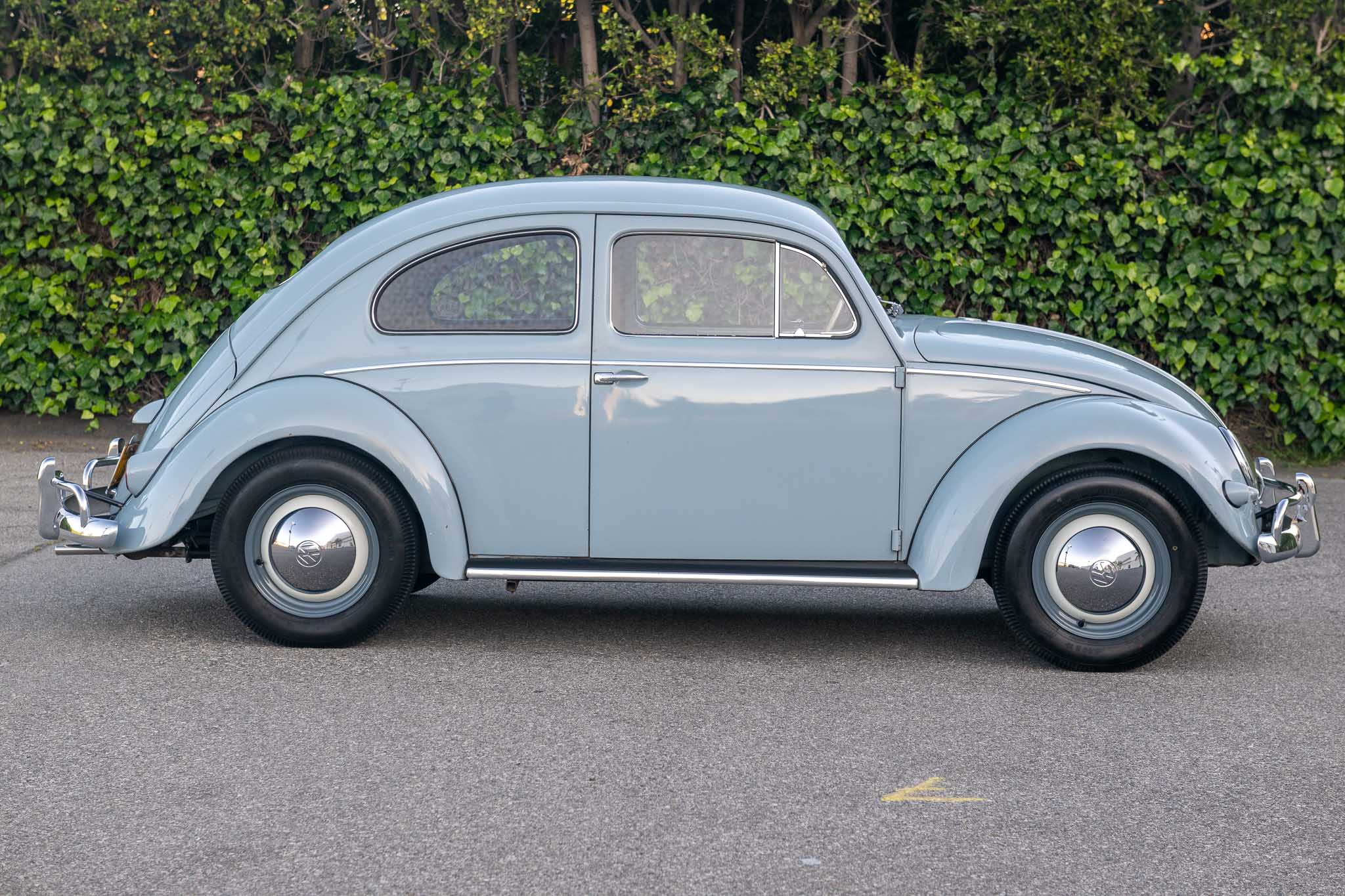

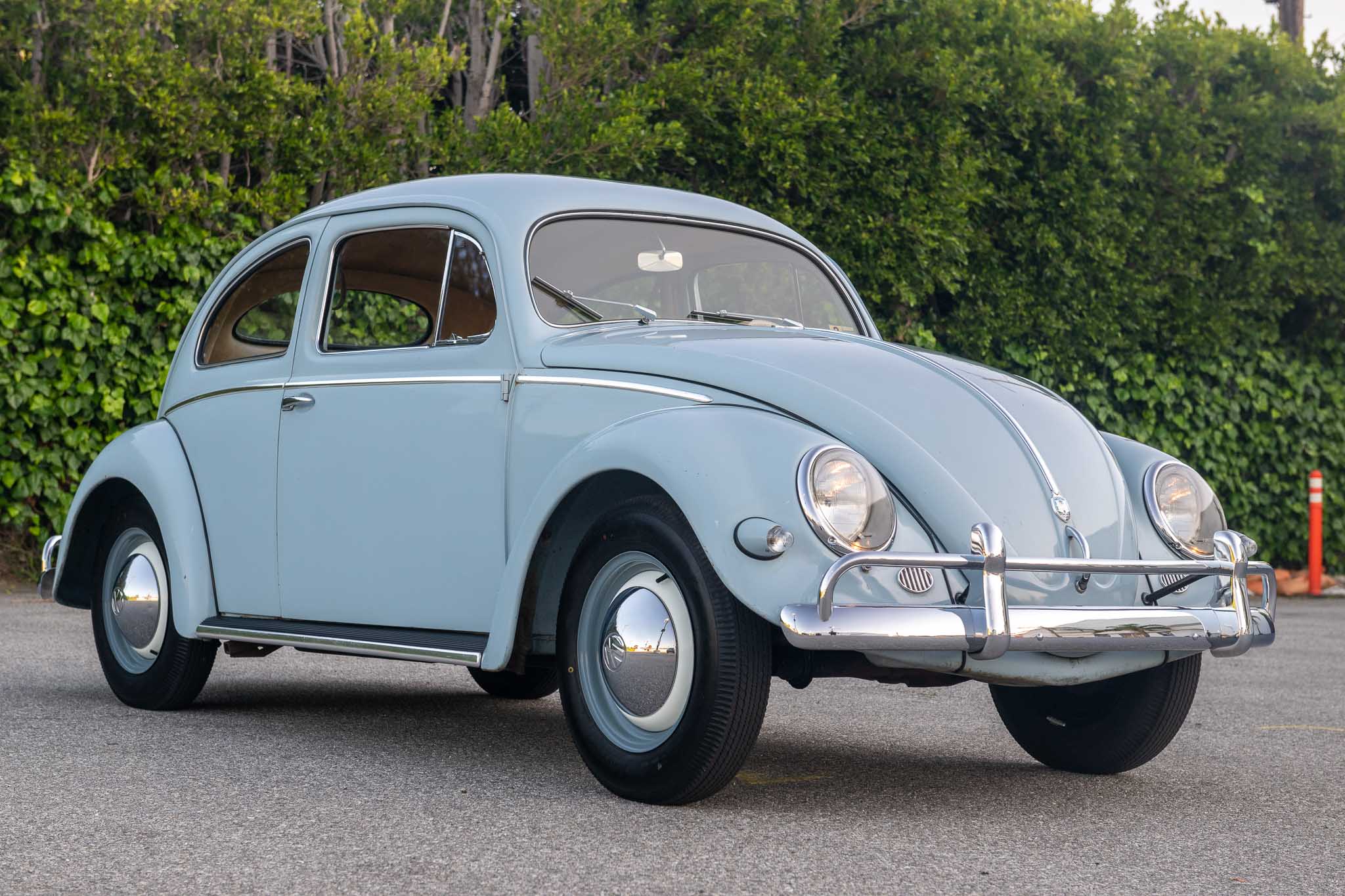

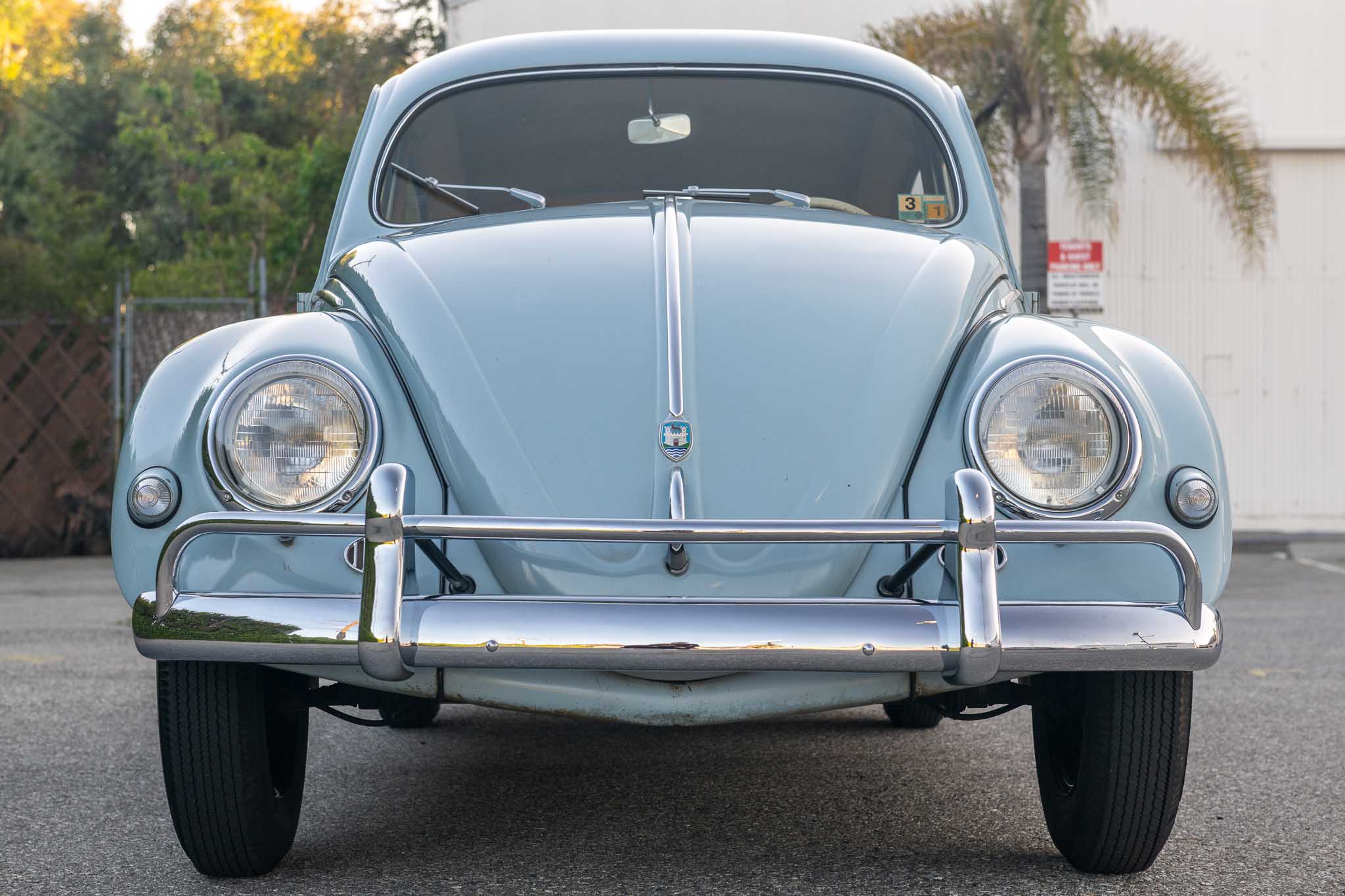

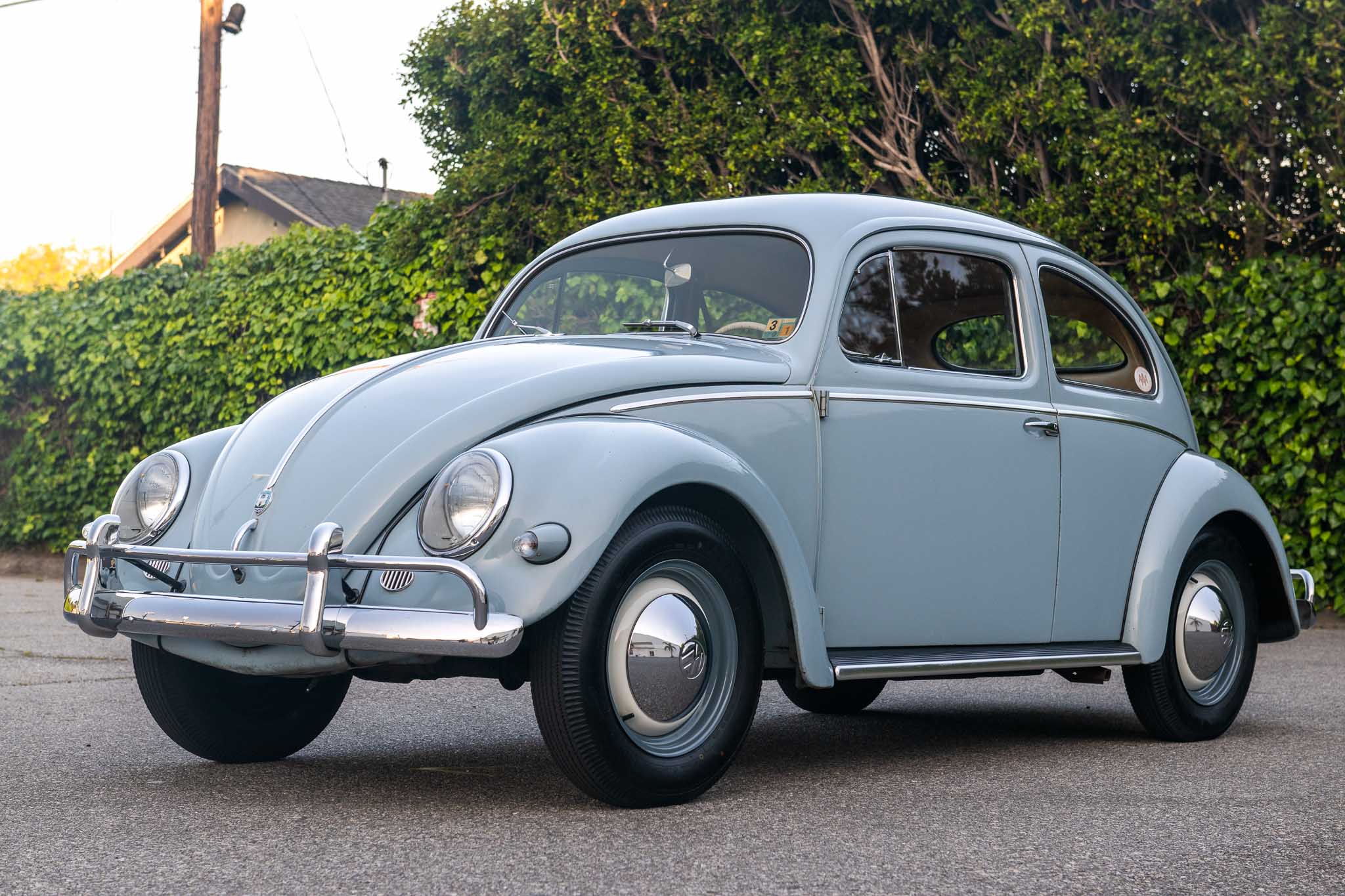

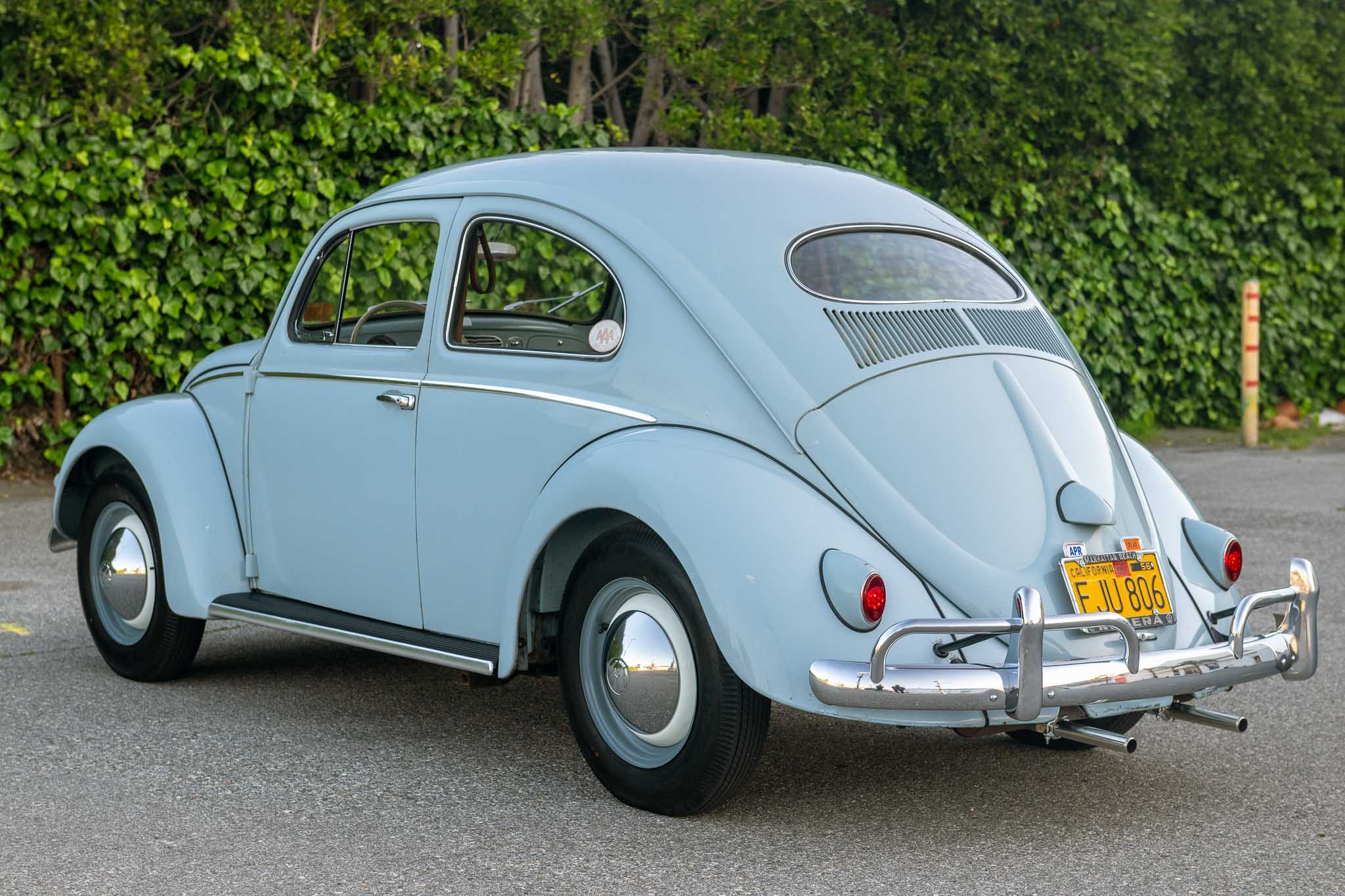

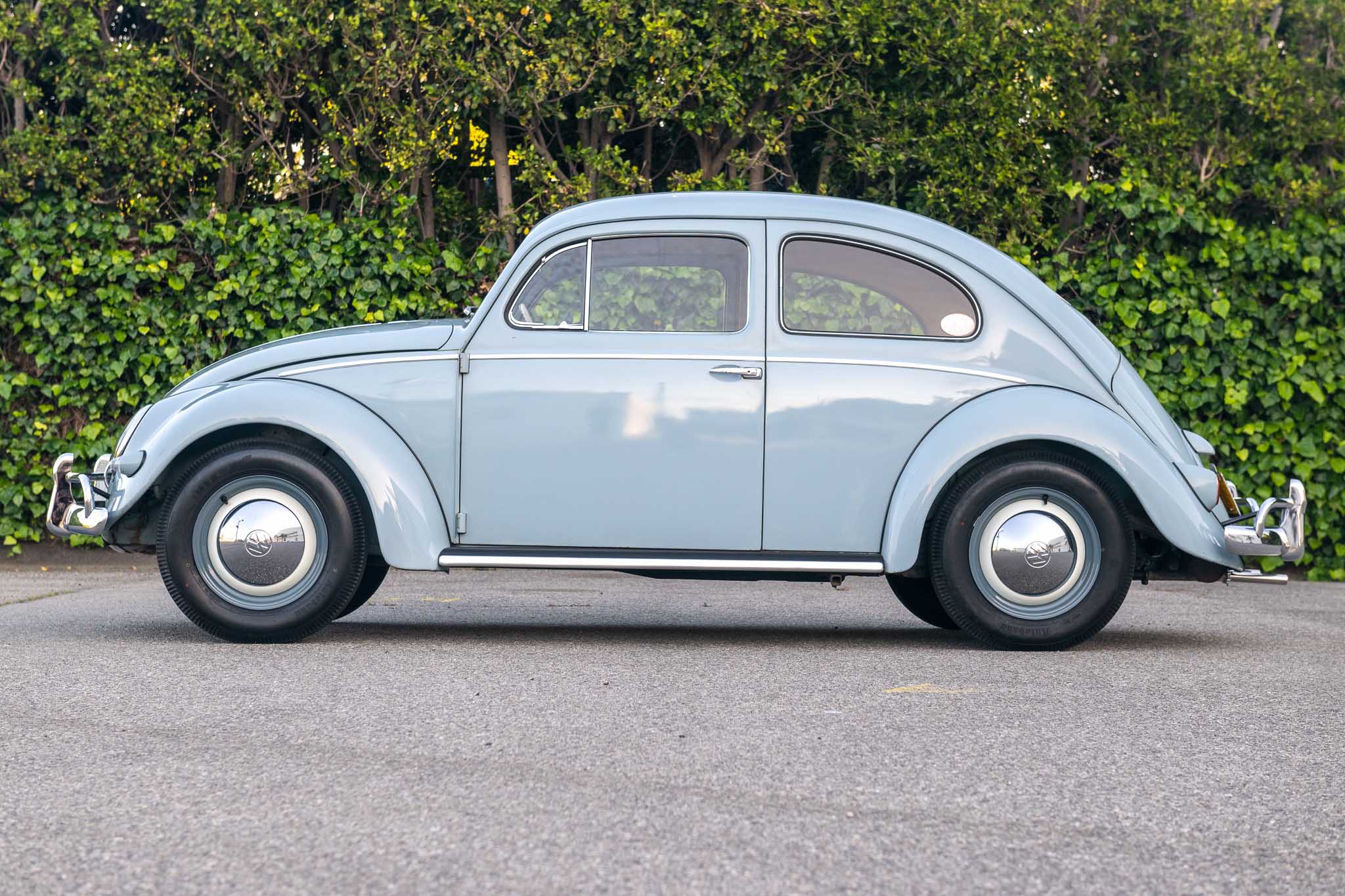

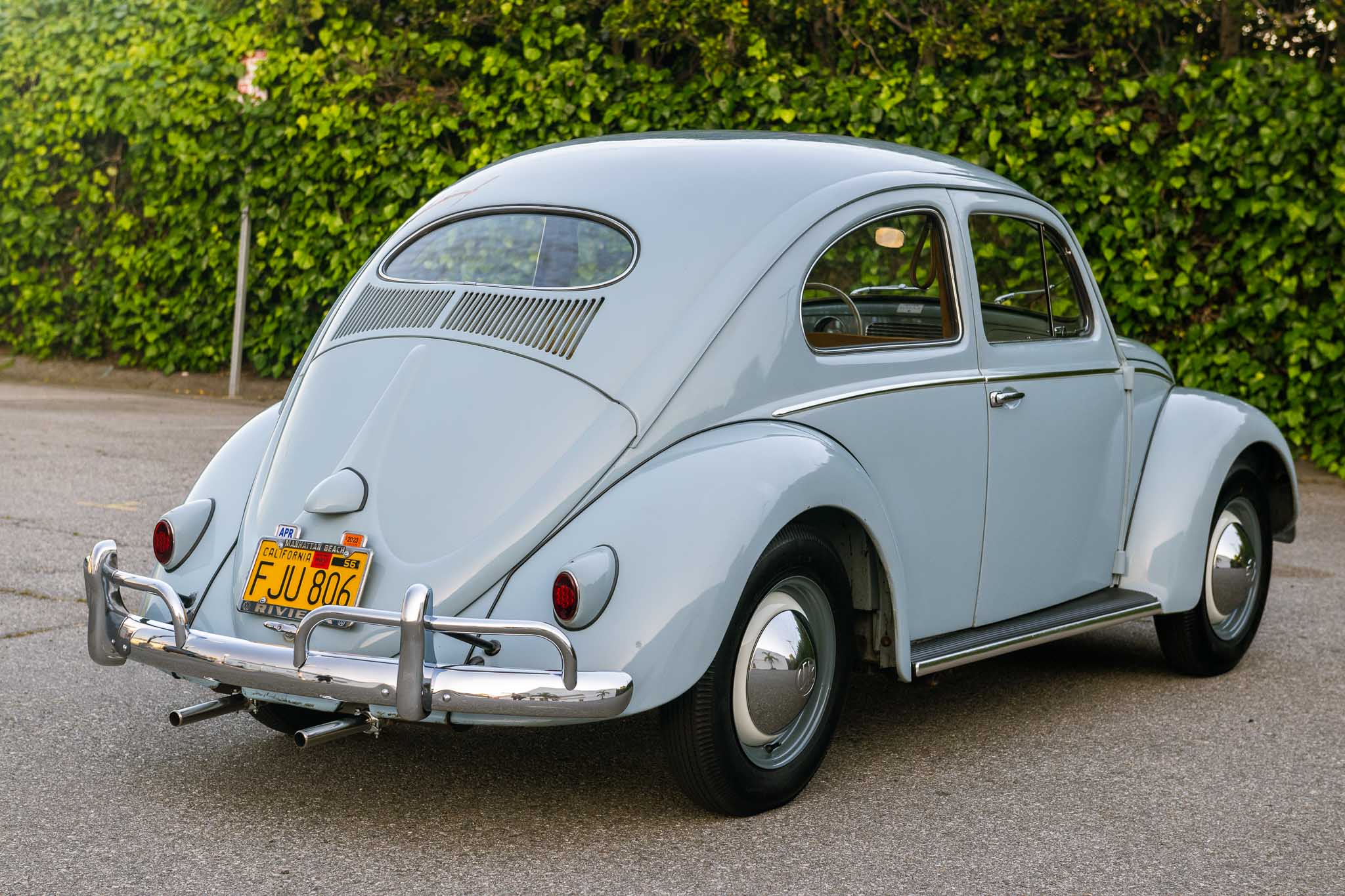

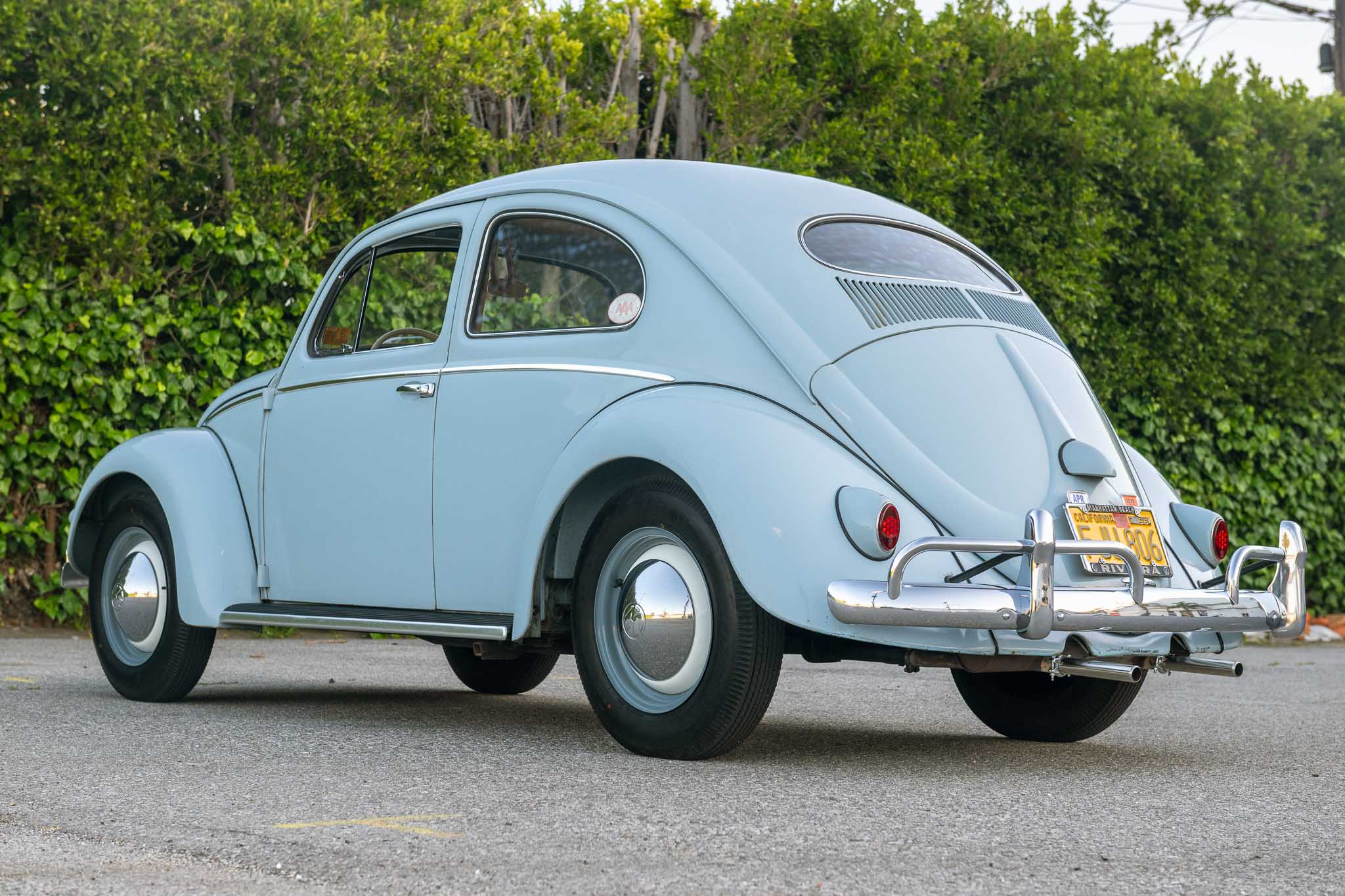

Let me introduce you to this sweet 1957 Horizon Blue Oval Window 51k mile survivor. This car is an opportunity to own a piece of history.

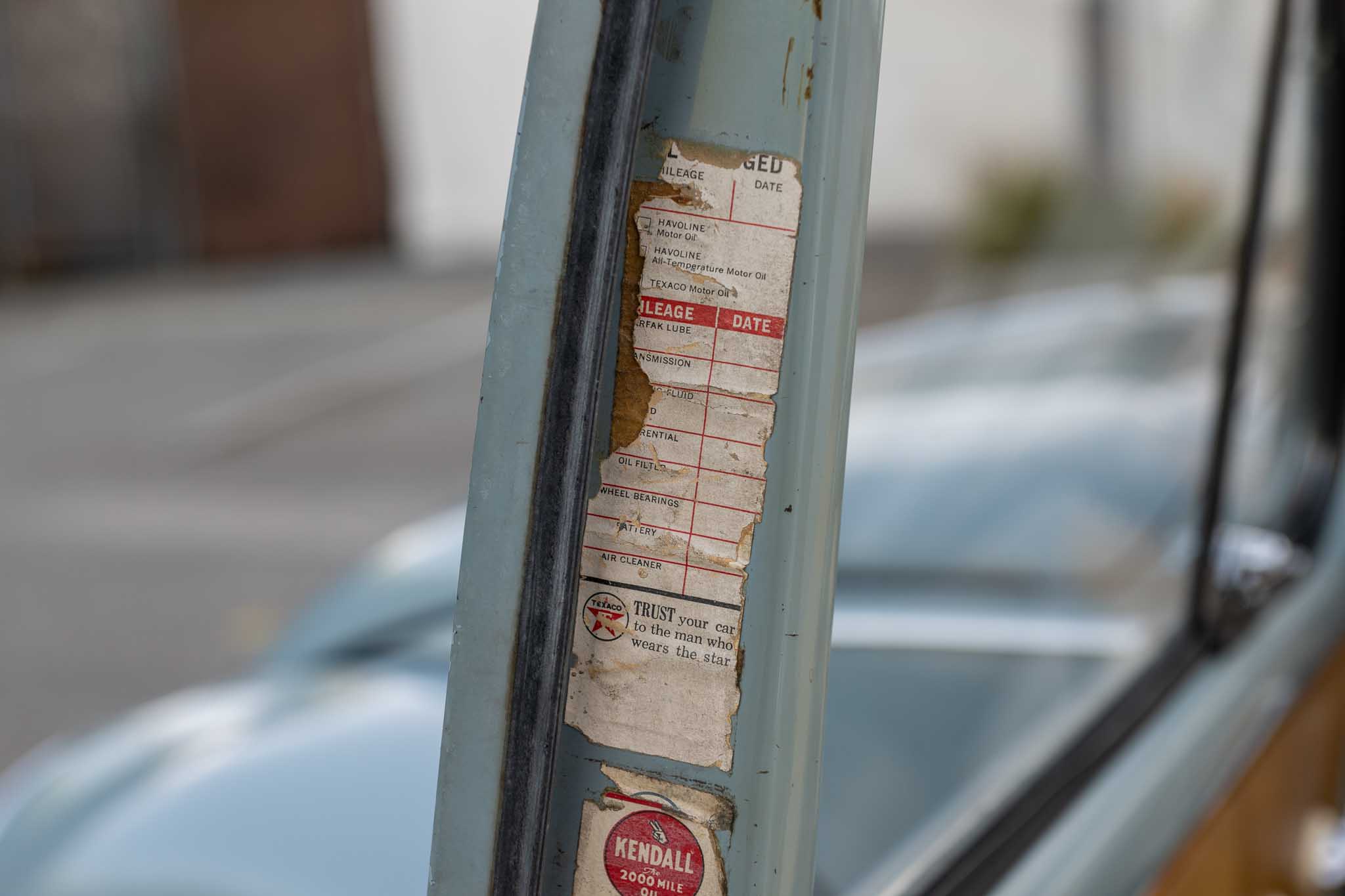

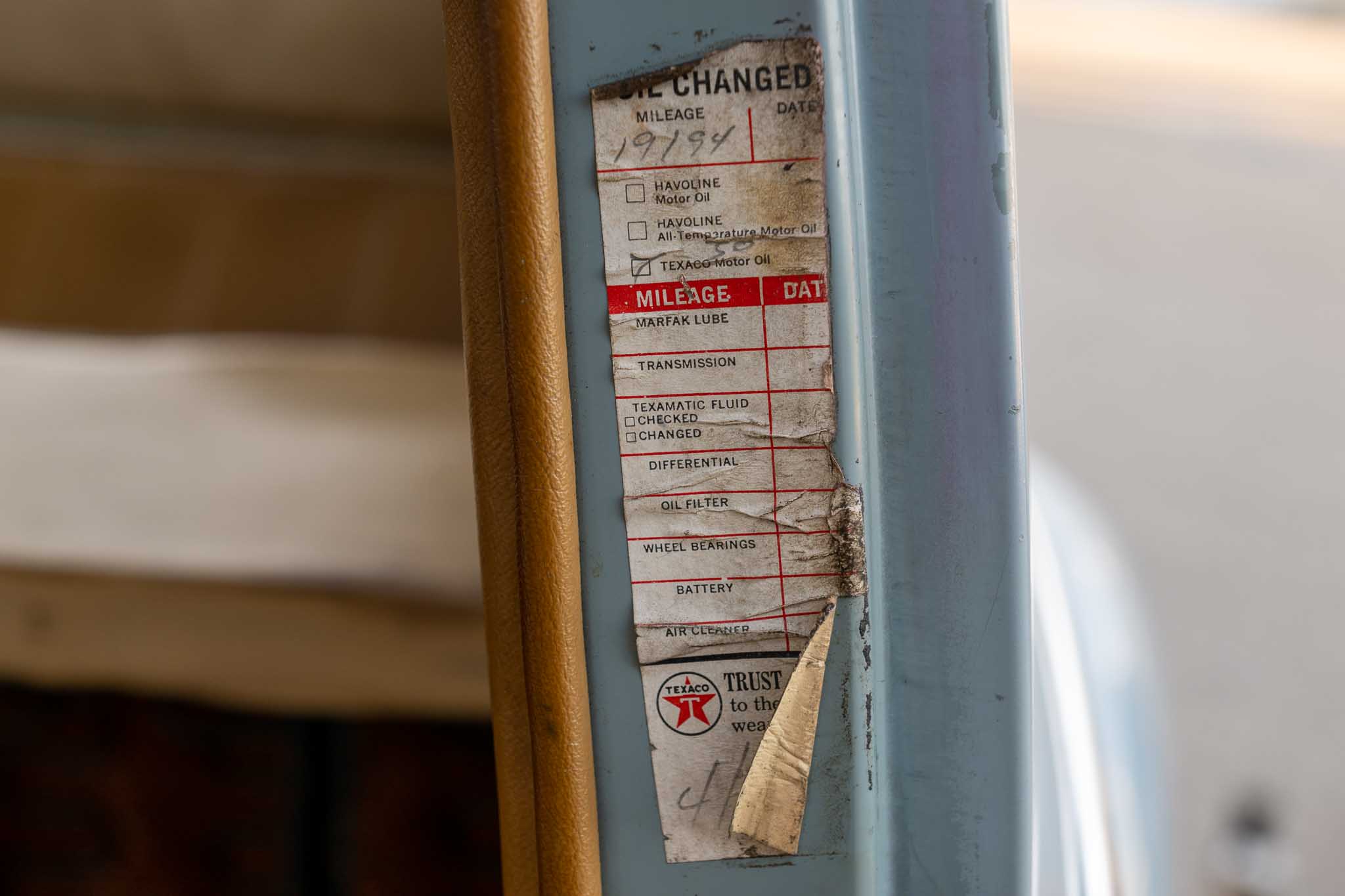

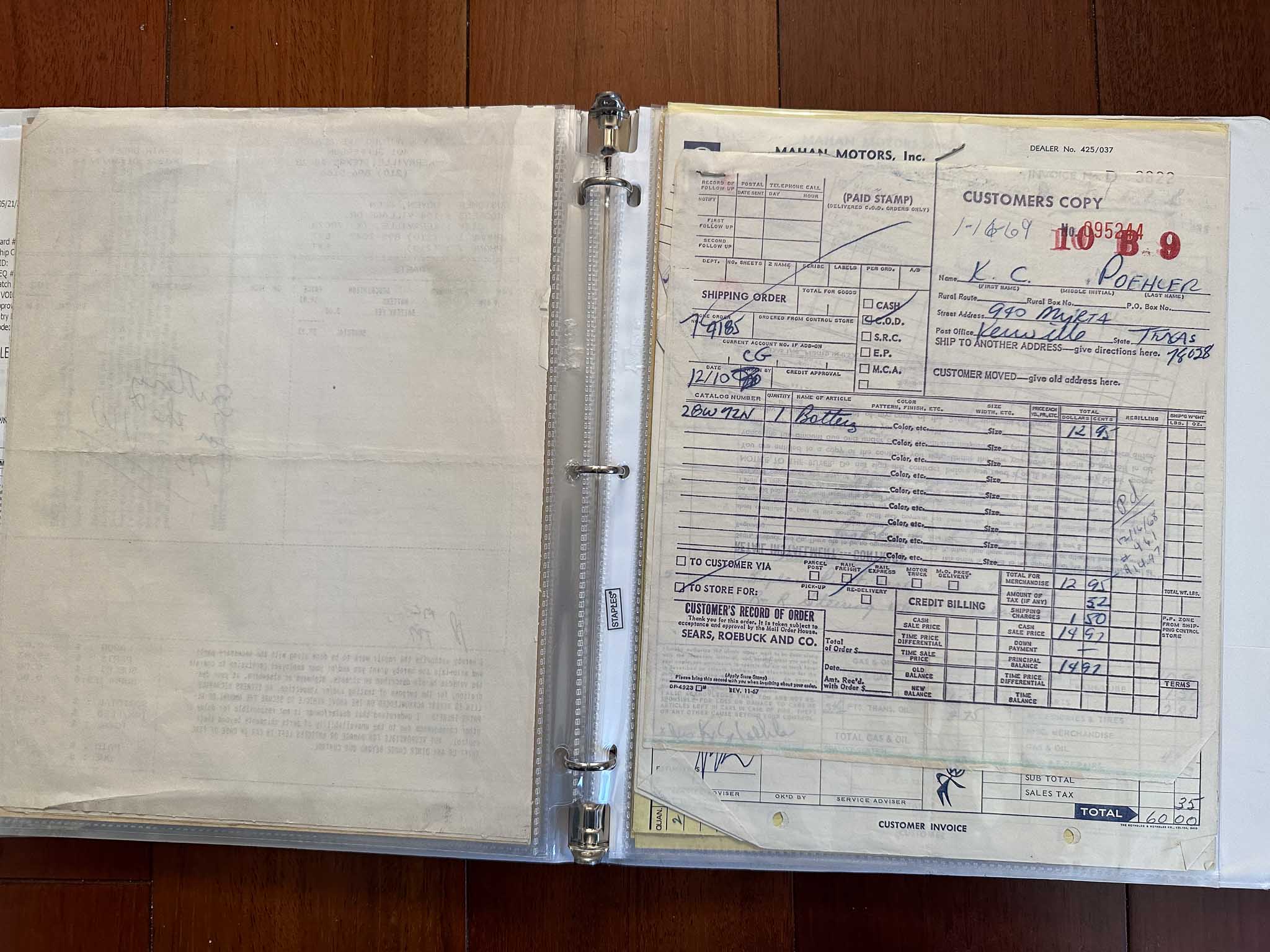

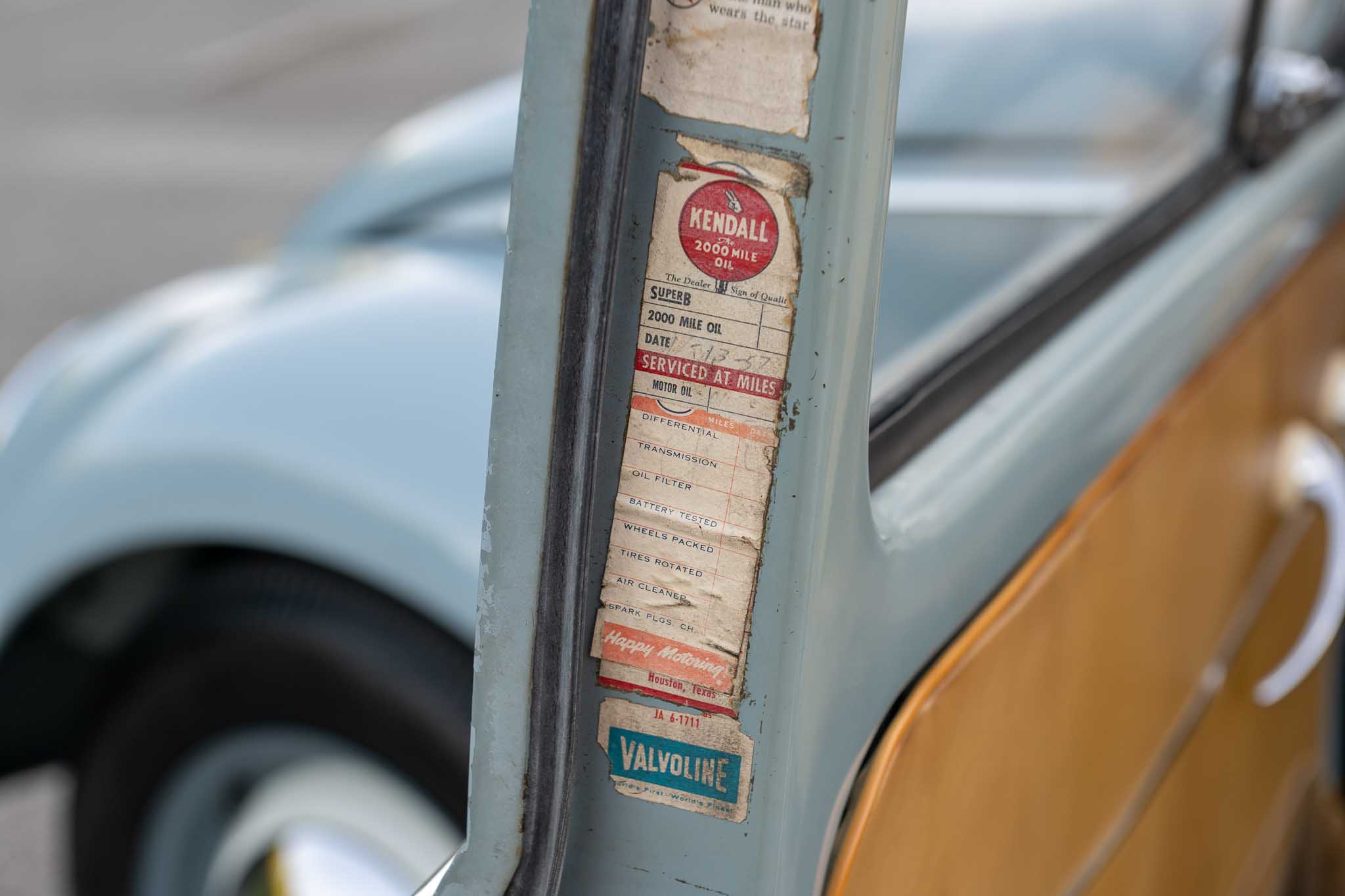

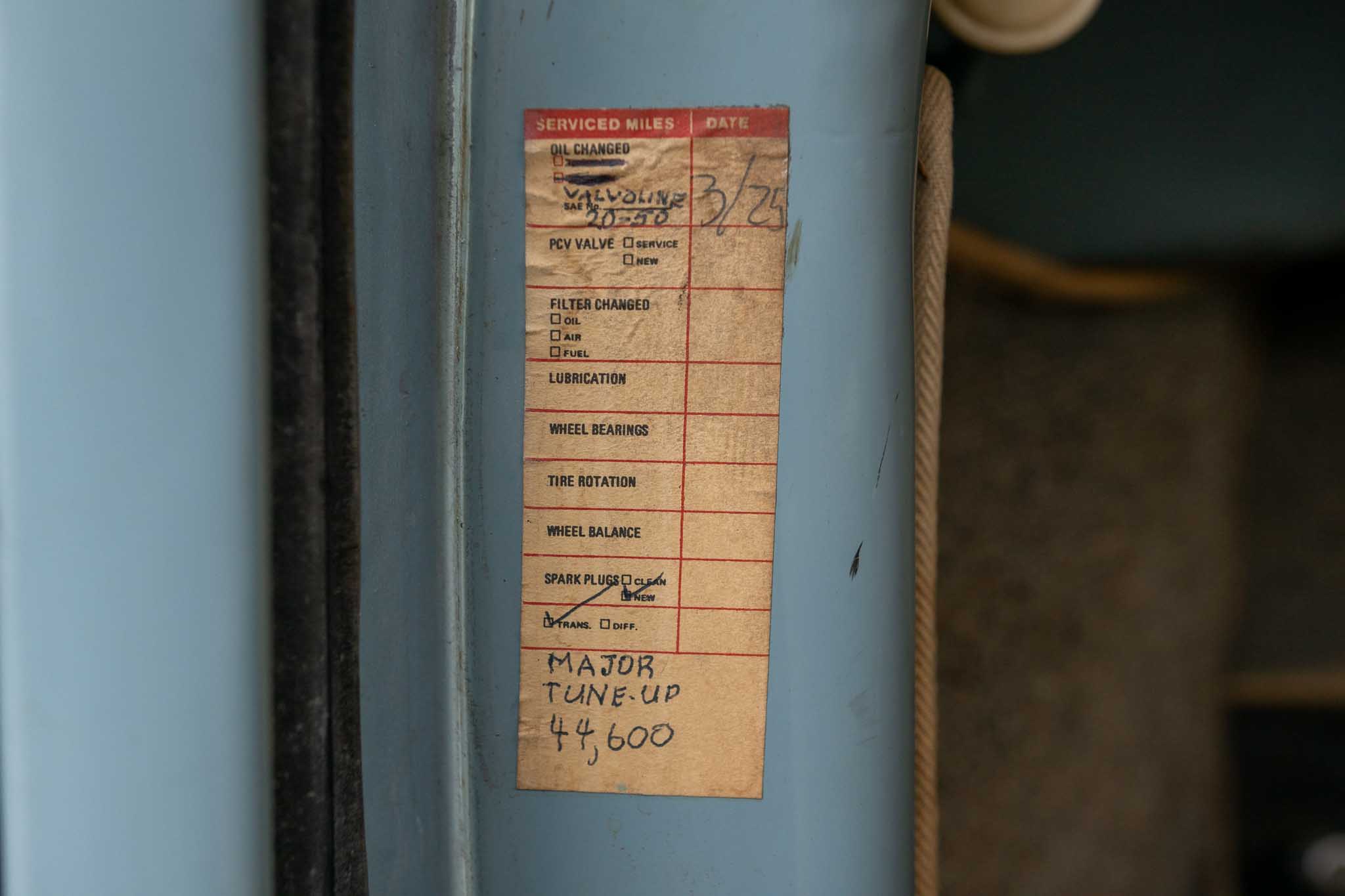

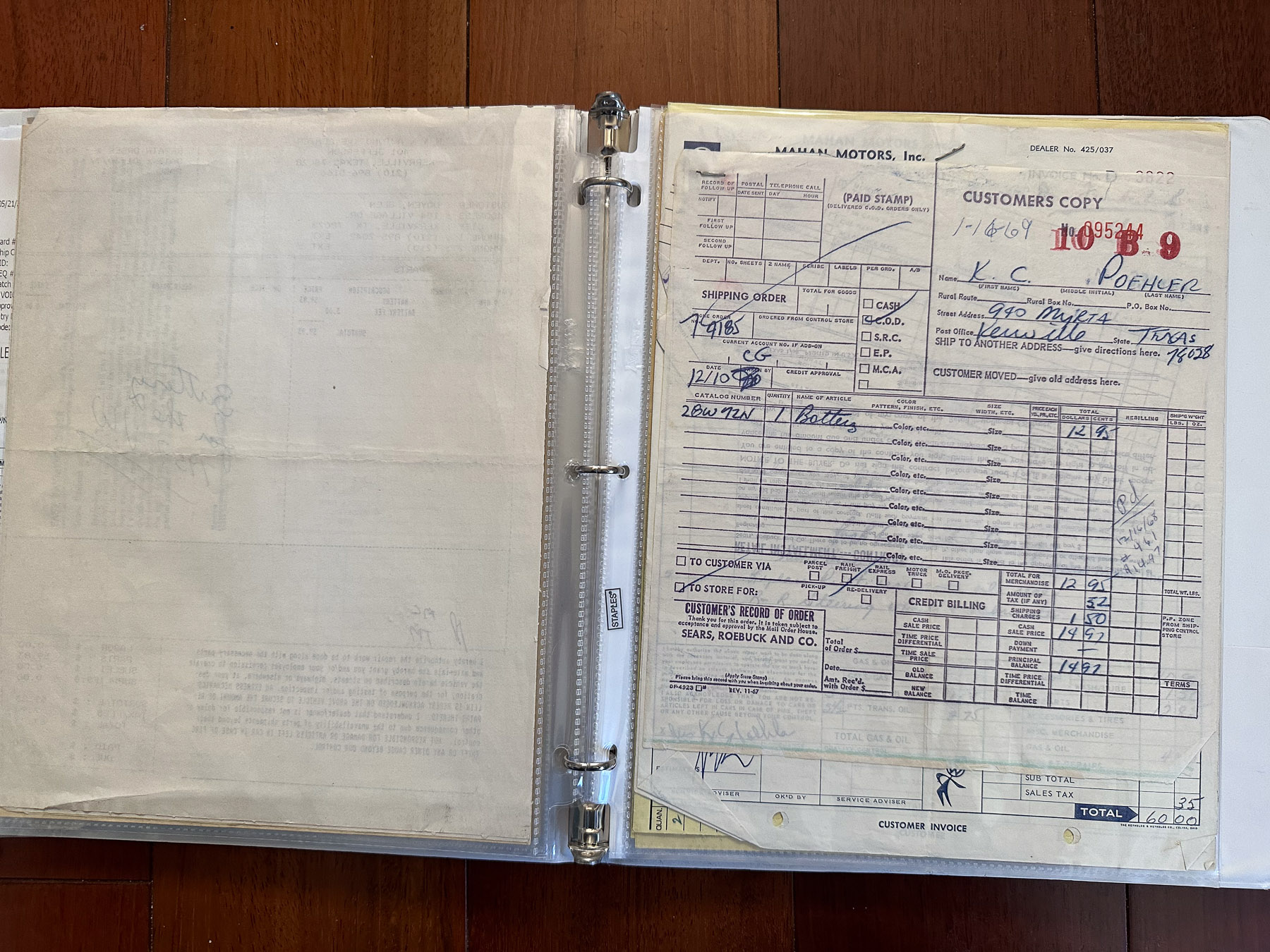

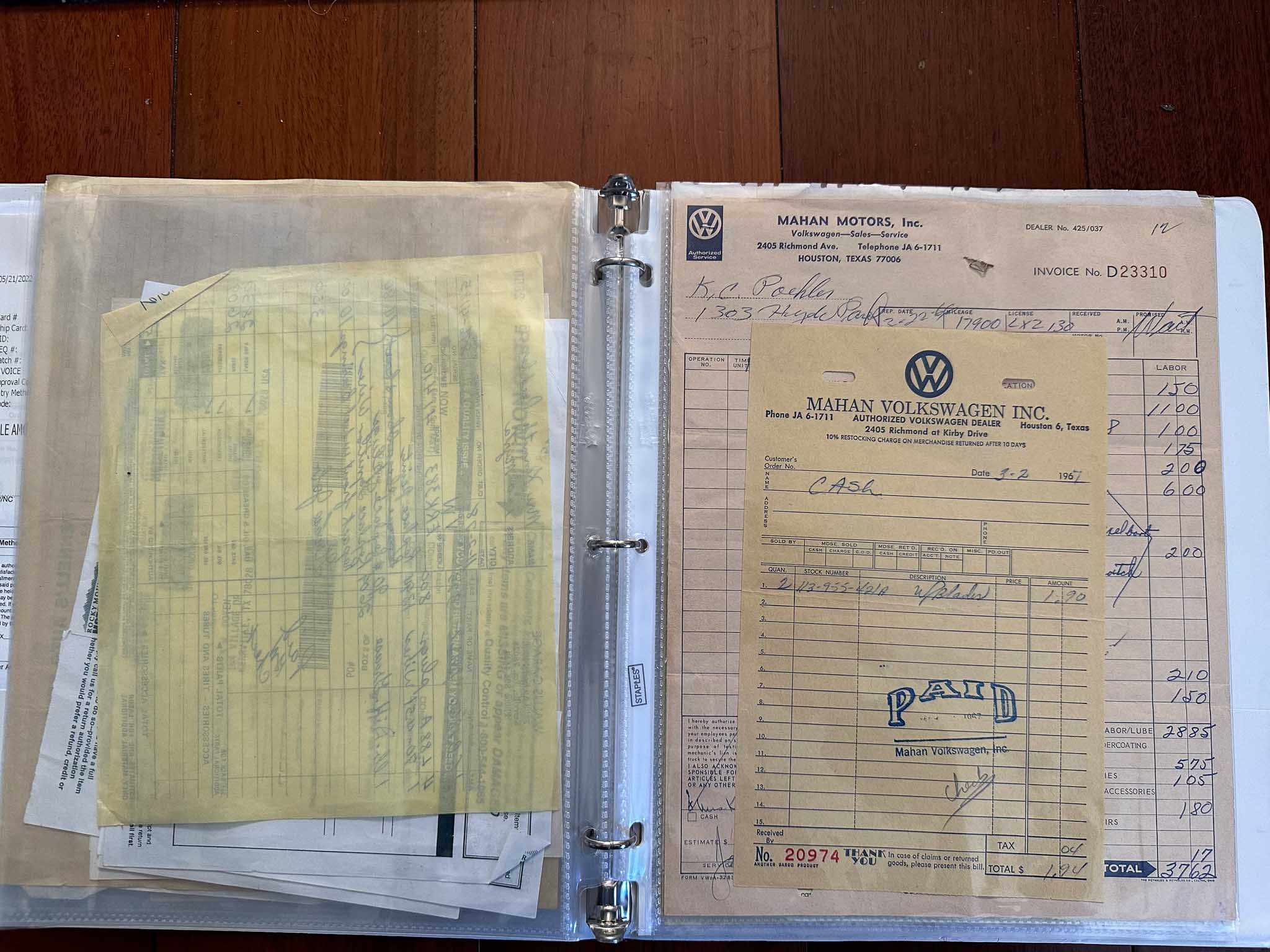

When I purchased the car, my main objective was to preserve the car while restoring it mechanically so I could enjoy driving it. As noted by the mileage records, most of the mileage was added by the original owner. From 1988 on, there have been just over 3700 miles added to the odometer. Having sat in collections for the second half of its life, the mechanical aspects of the car did not get much attention. Thankfully, that is what I love to do so it was a challenge I was up for.

Although the engine still ran well, after 50k miles, I was concerned that there could be issues and didn’t want to risk doing damage to the original engine if there was a problem. The engine and the transmission were sent off to get refurbished while I focused my attention on the rest of the mechanical parts as well as other small issues. Here is the list of work performed;

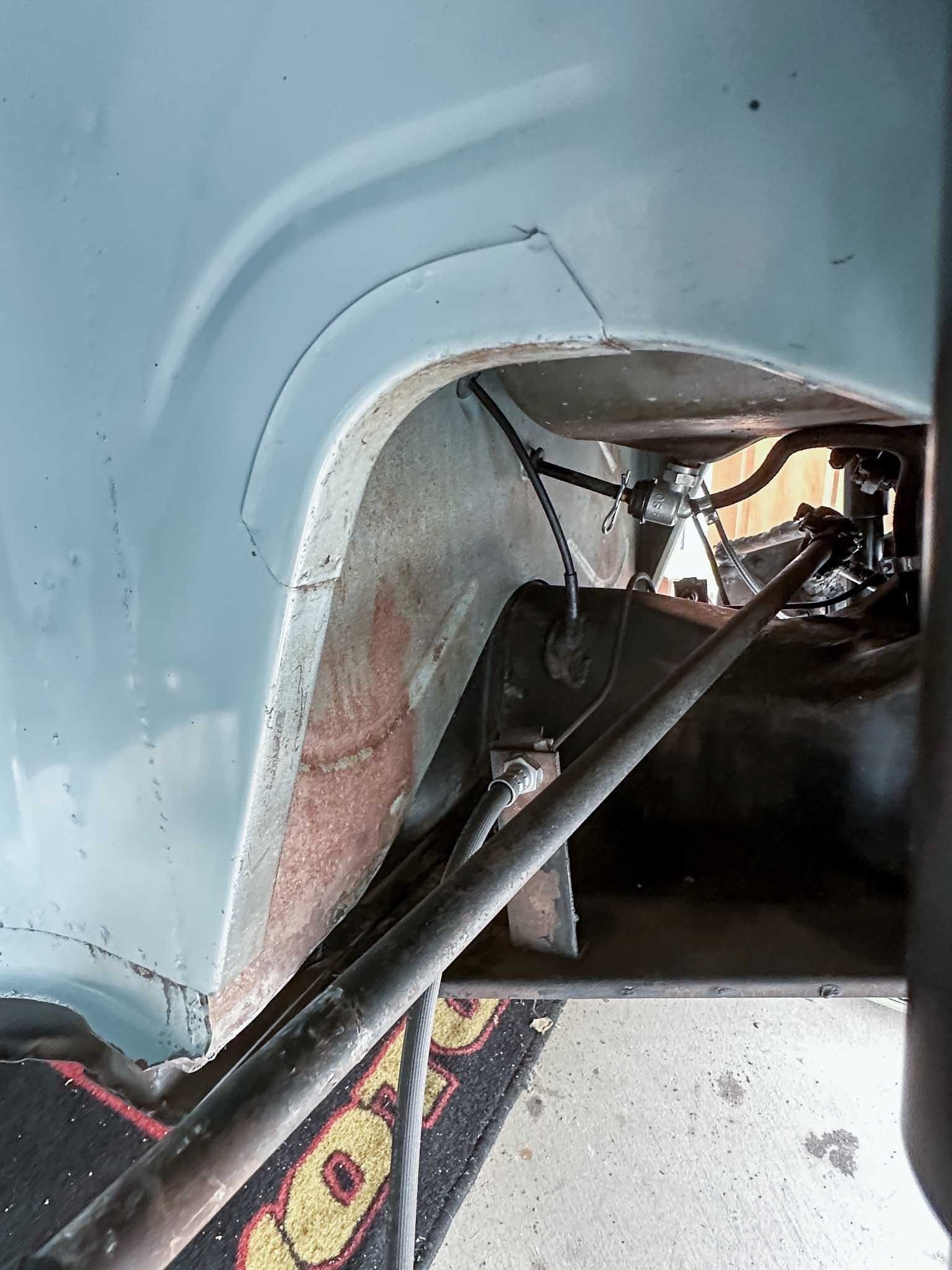

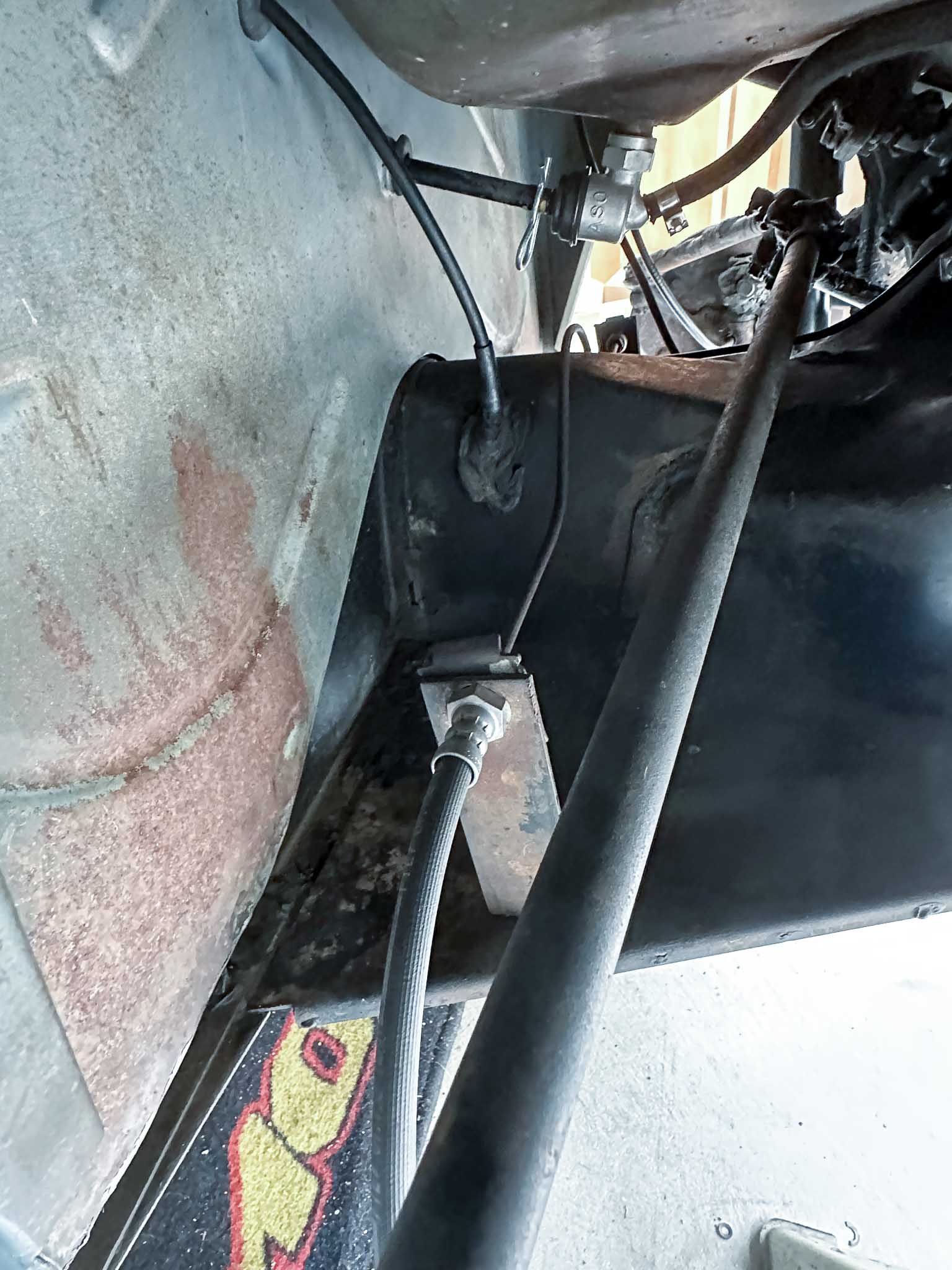

• New soft brake lines (ATE)

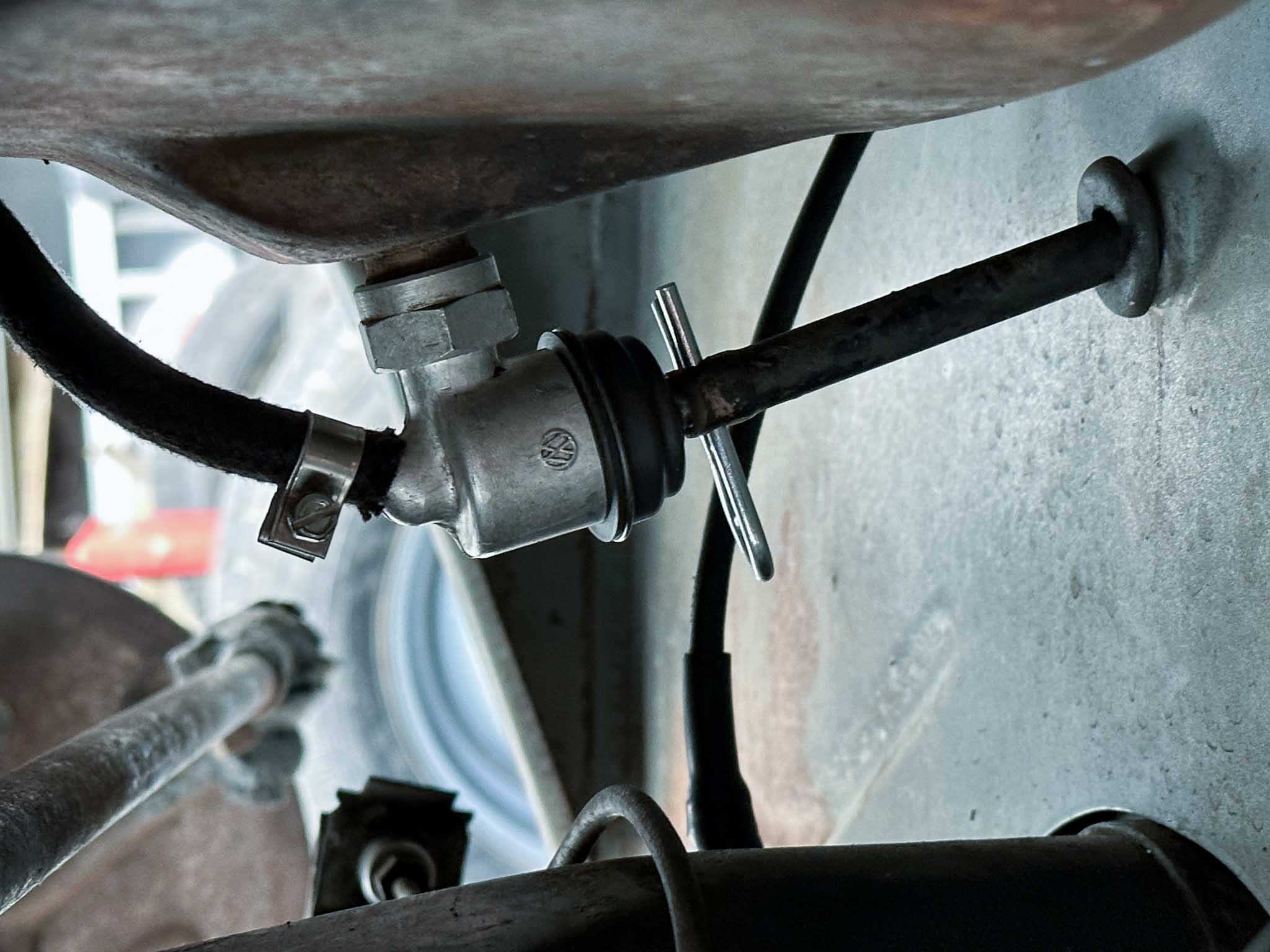

• New brake master cylinder (ATE)
• New brake wheel cylinders (ATE)
• Drums turned & new brake shoes
• Transmission Rebuilt by Rancho Transaxles
• Engine rebuilt by George Schmidt

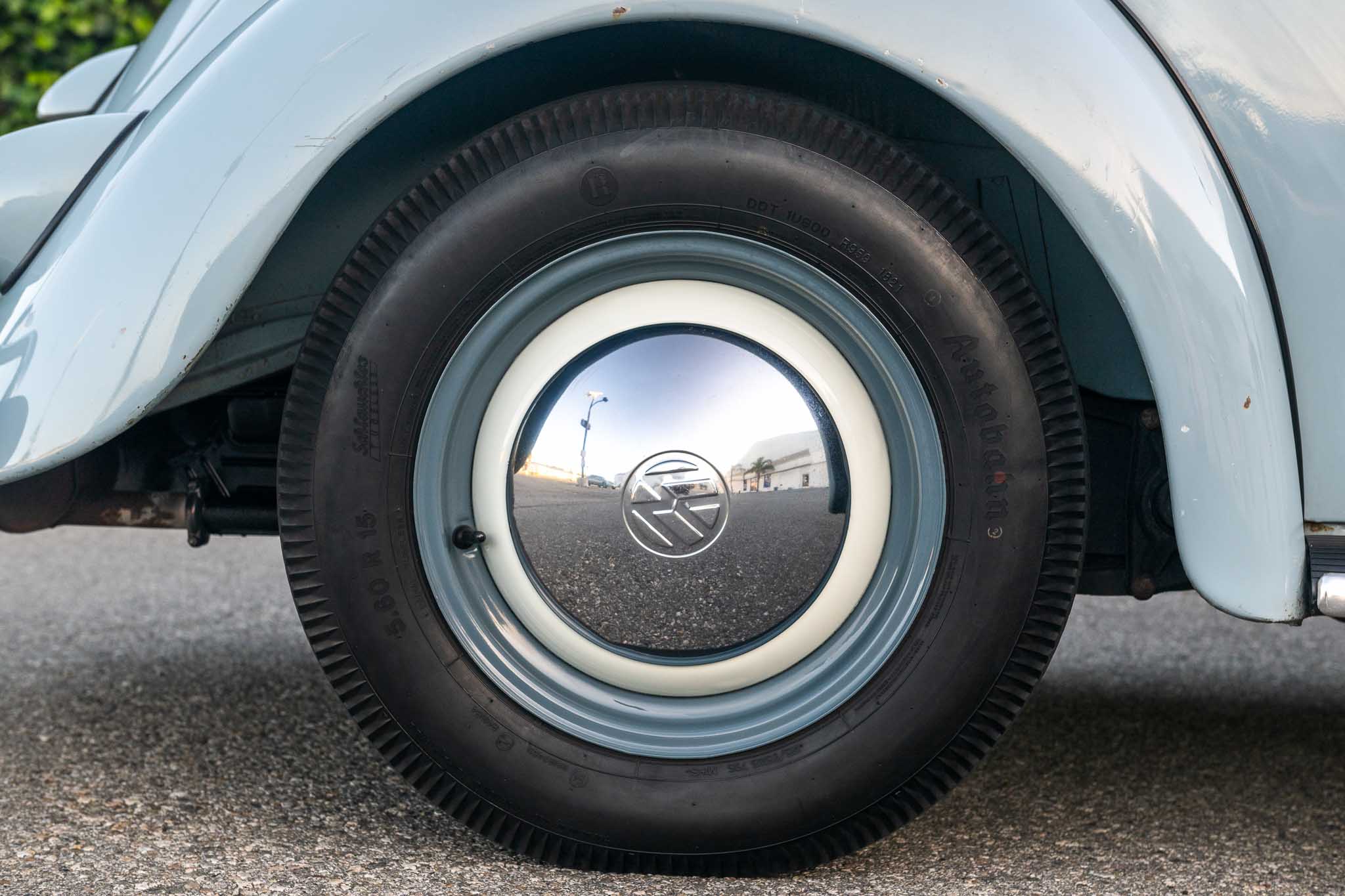

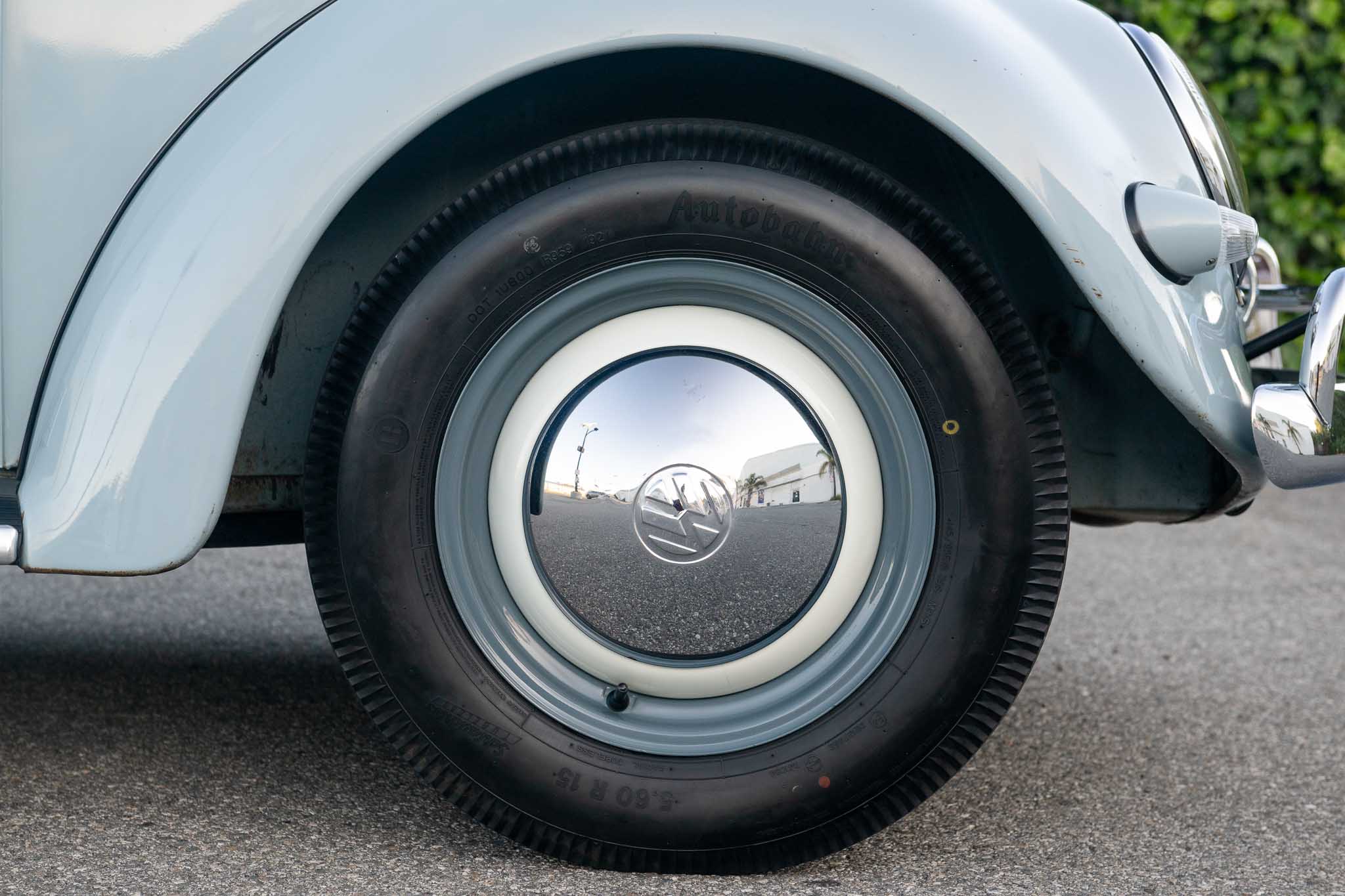

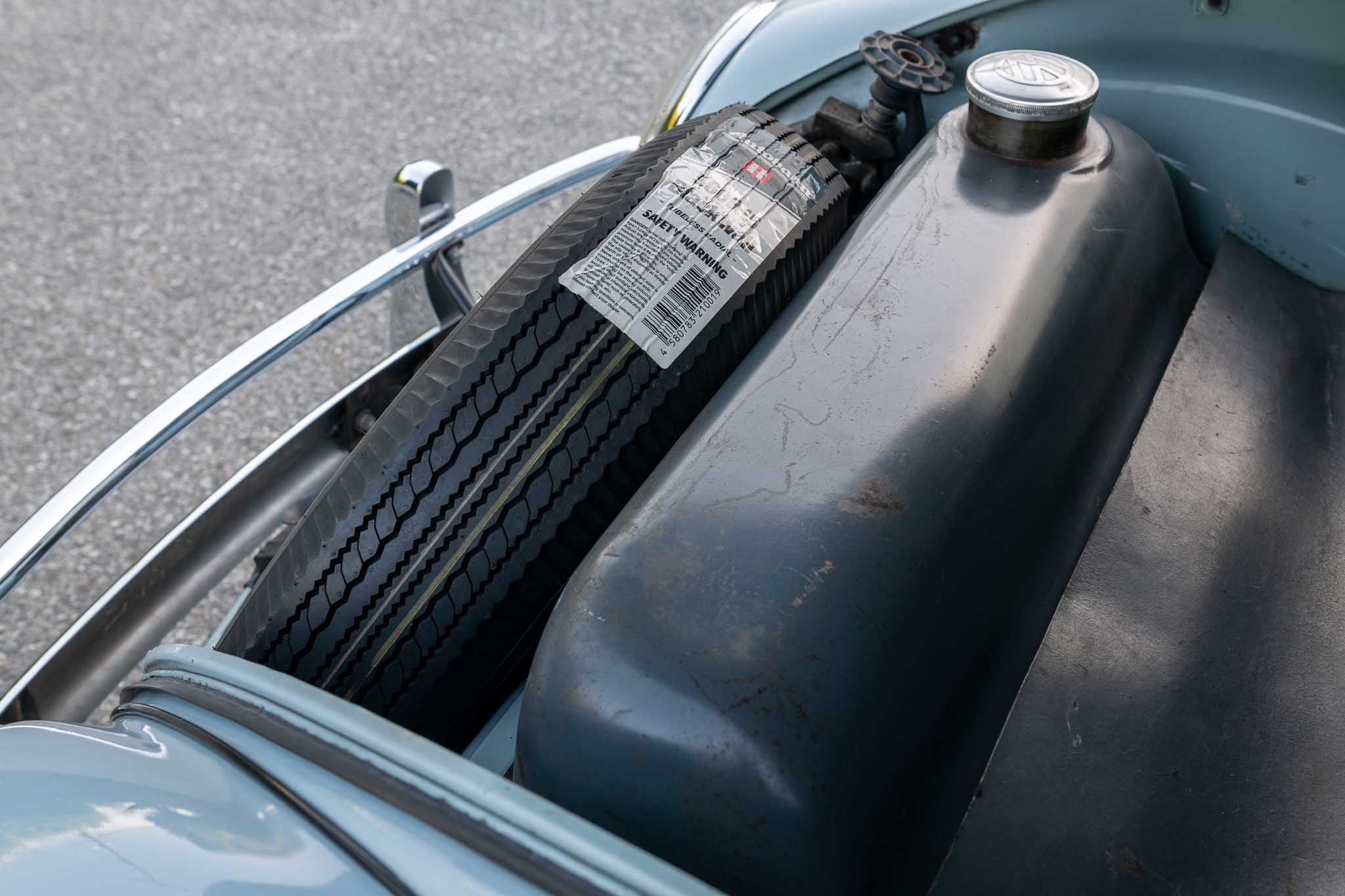

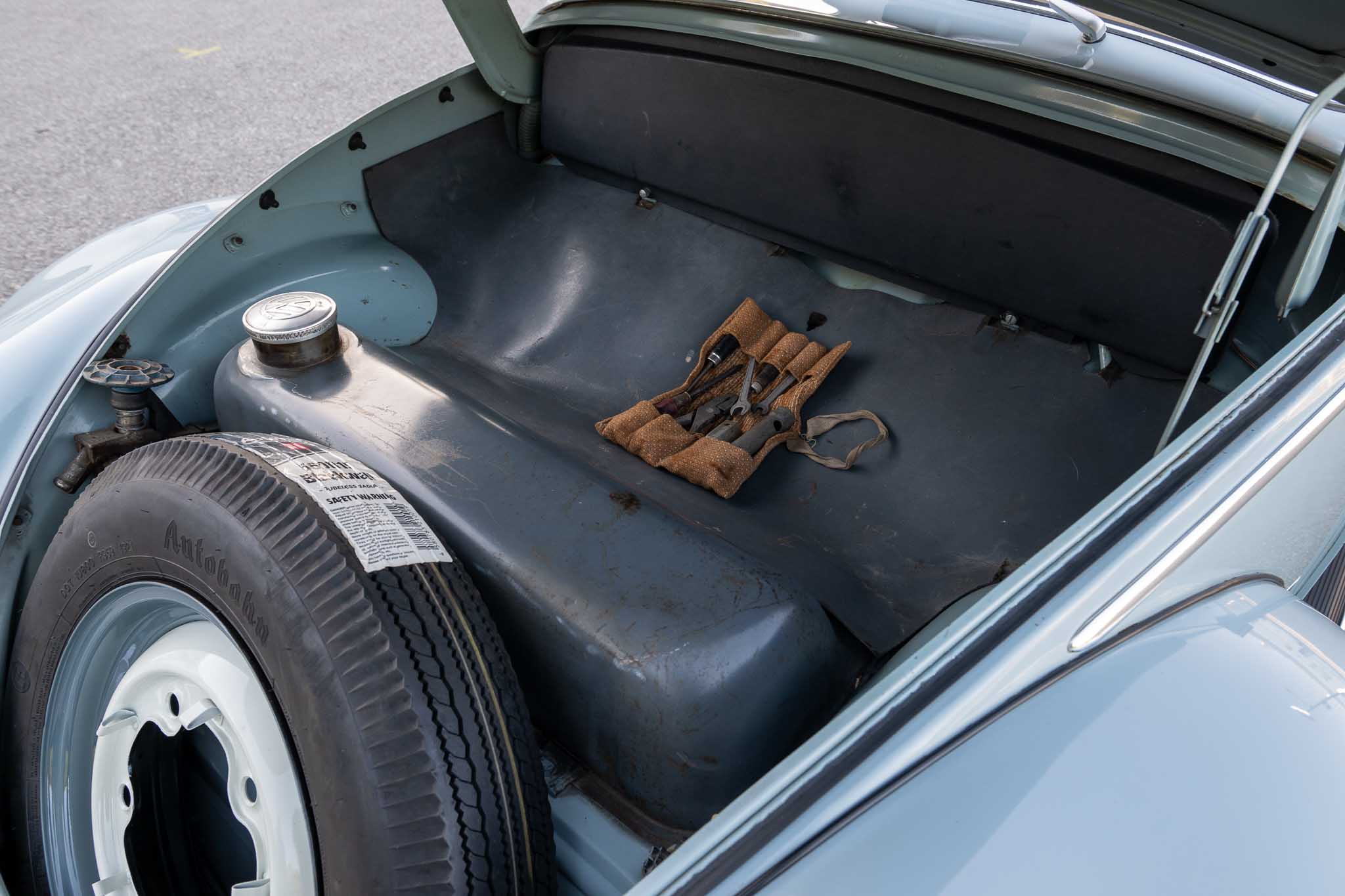

• Original date-coded rims painted and shod with new Autobahn(R) 560R15 Bias ply look Steel Belted Radial tires.

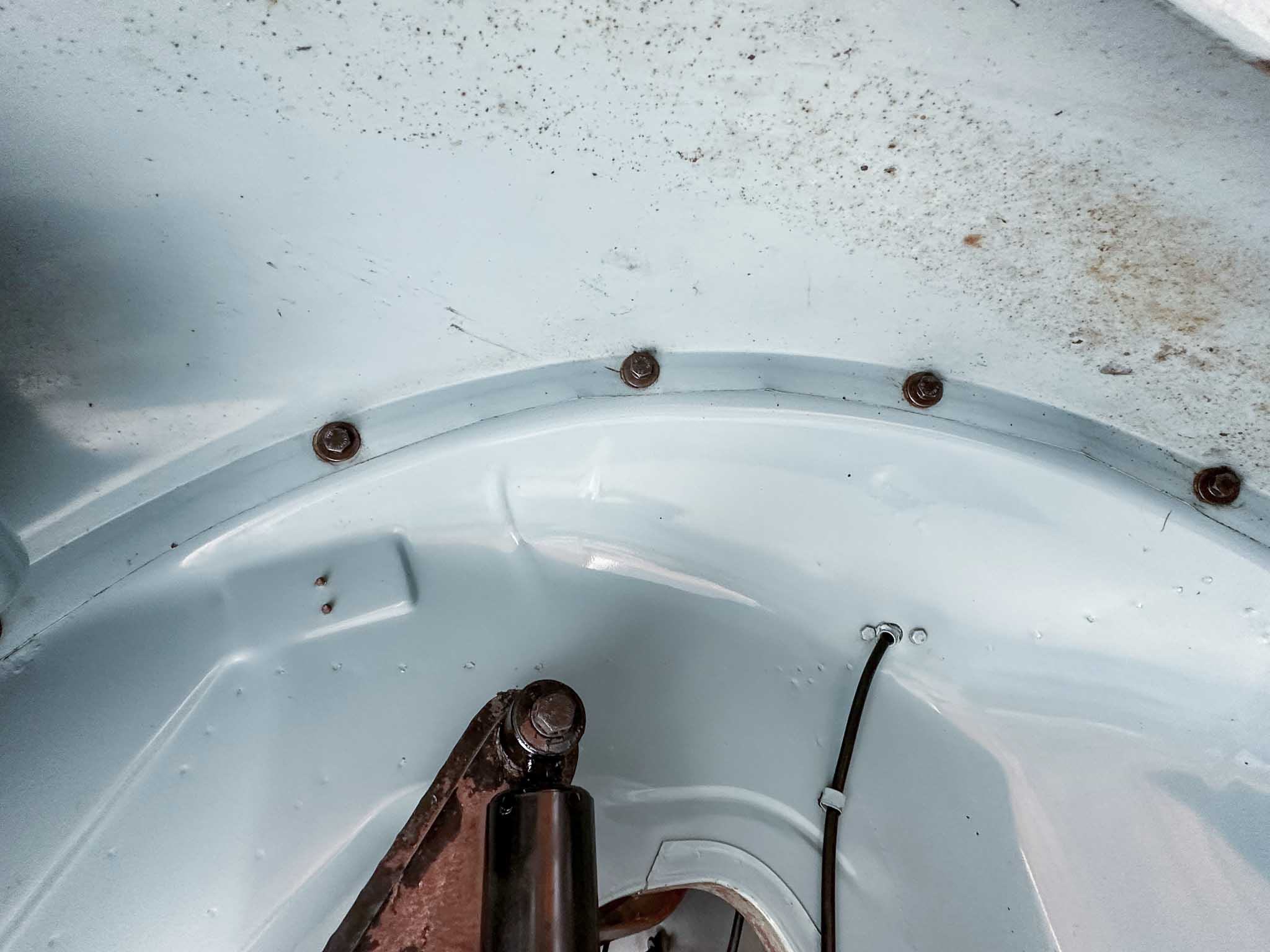

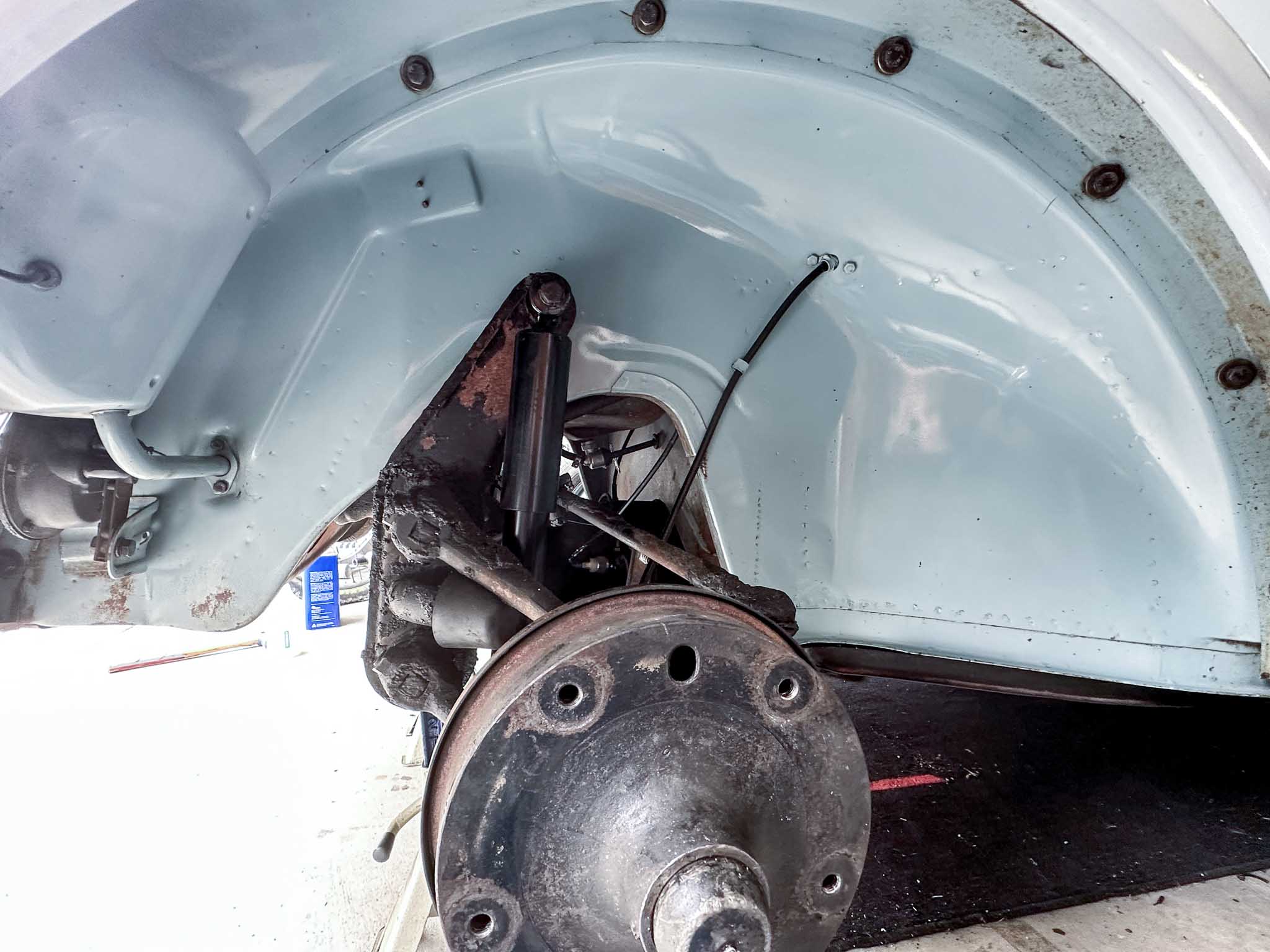

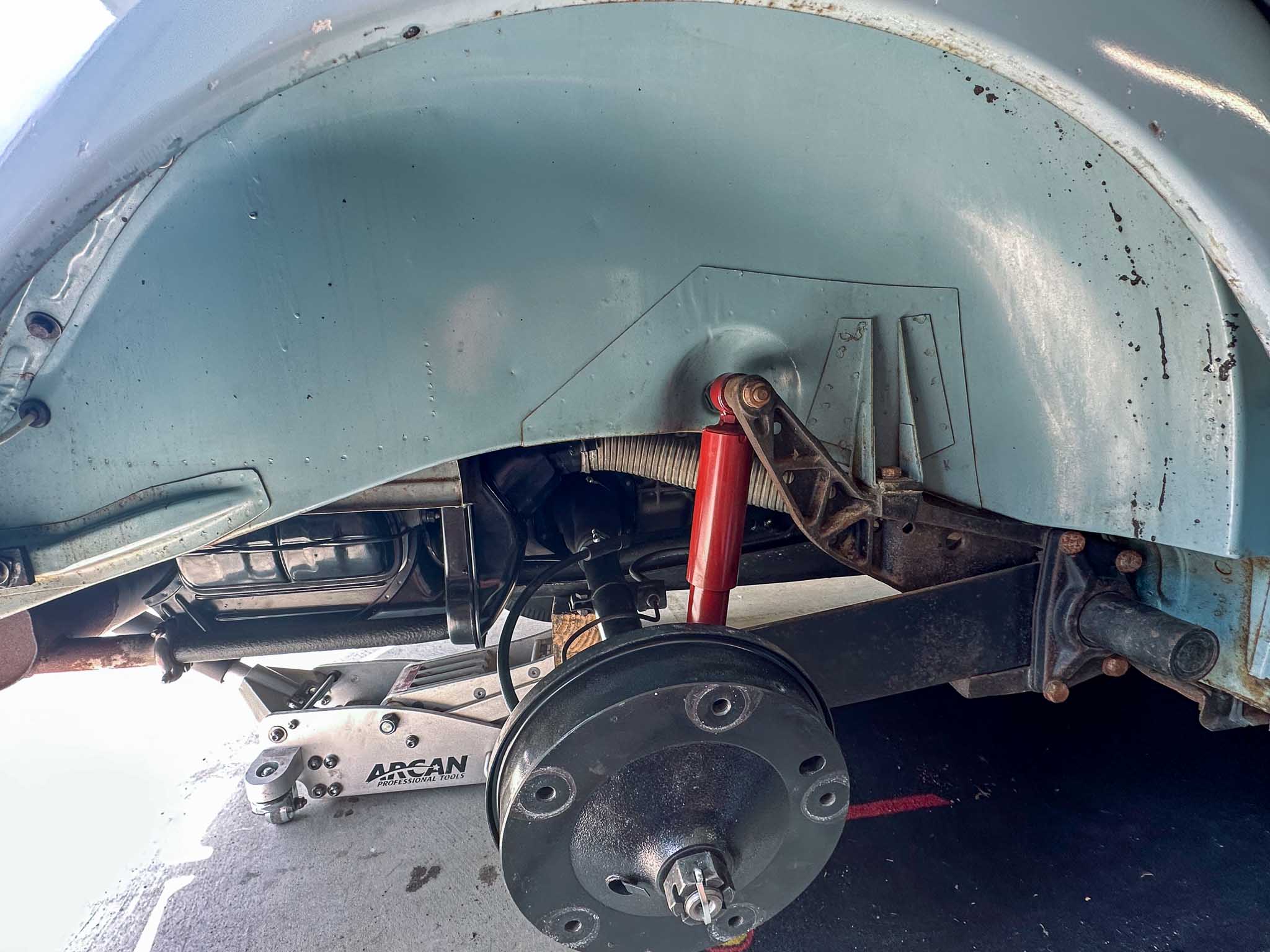

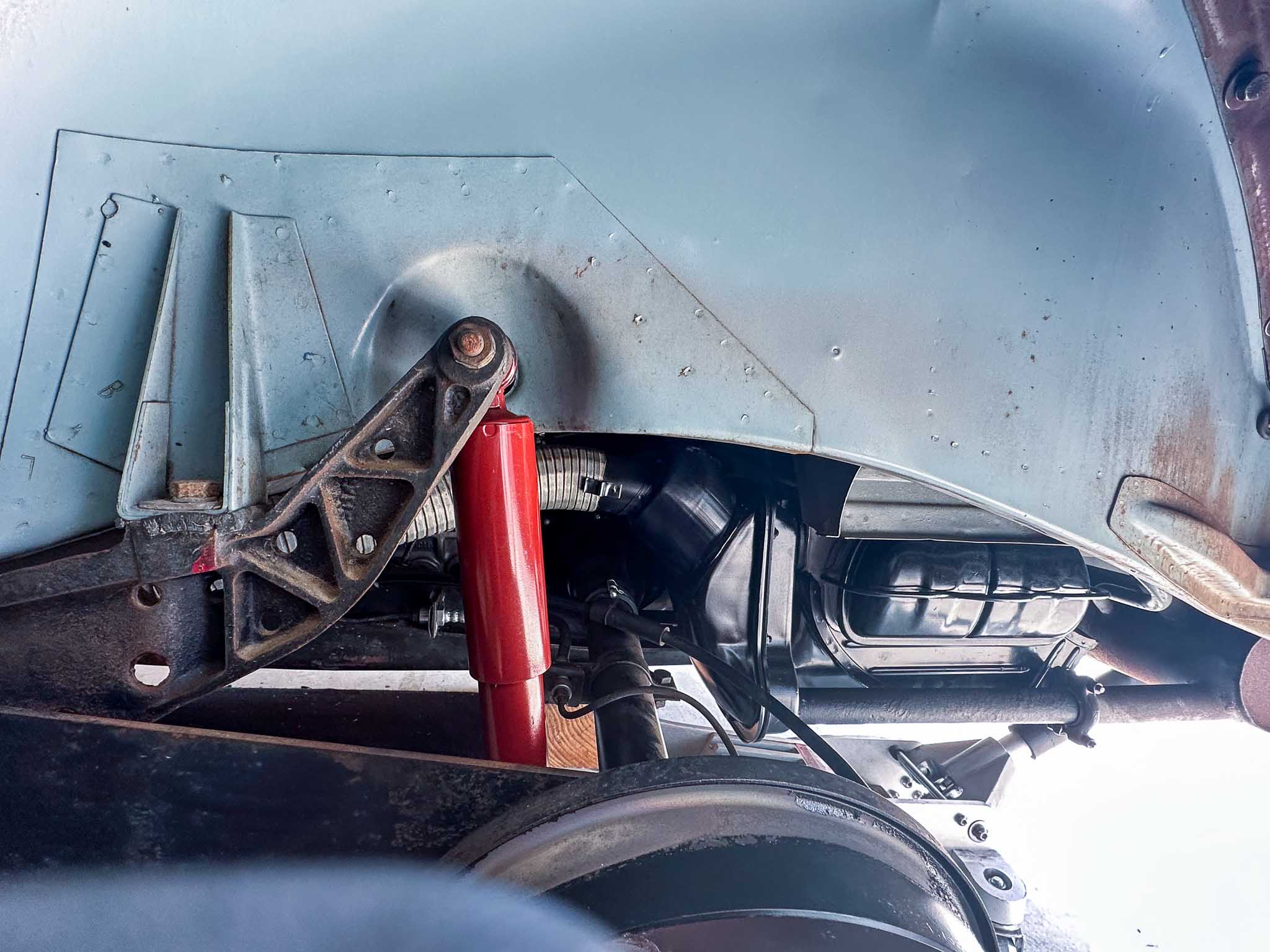

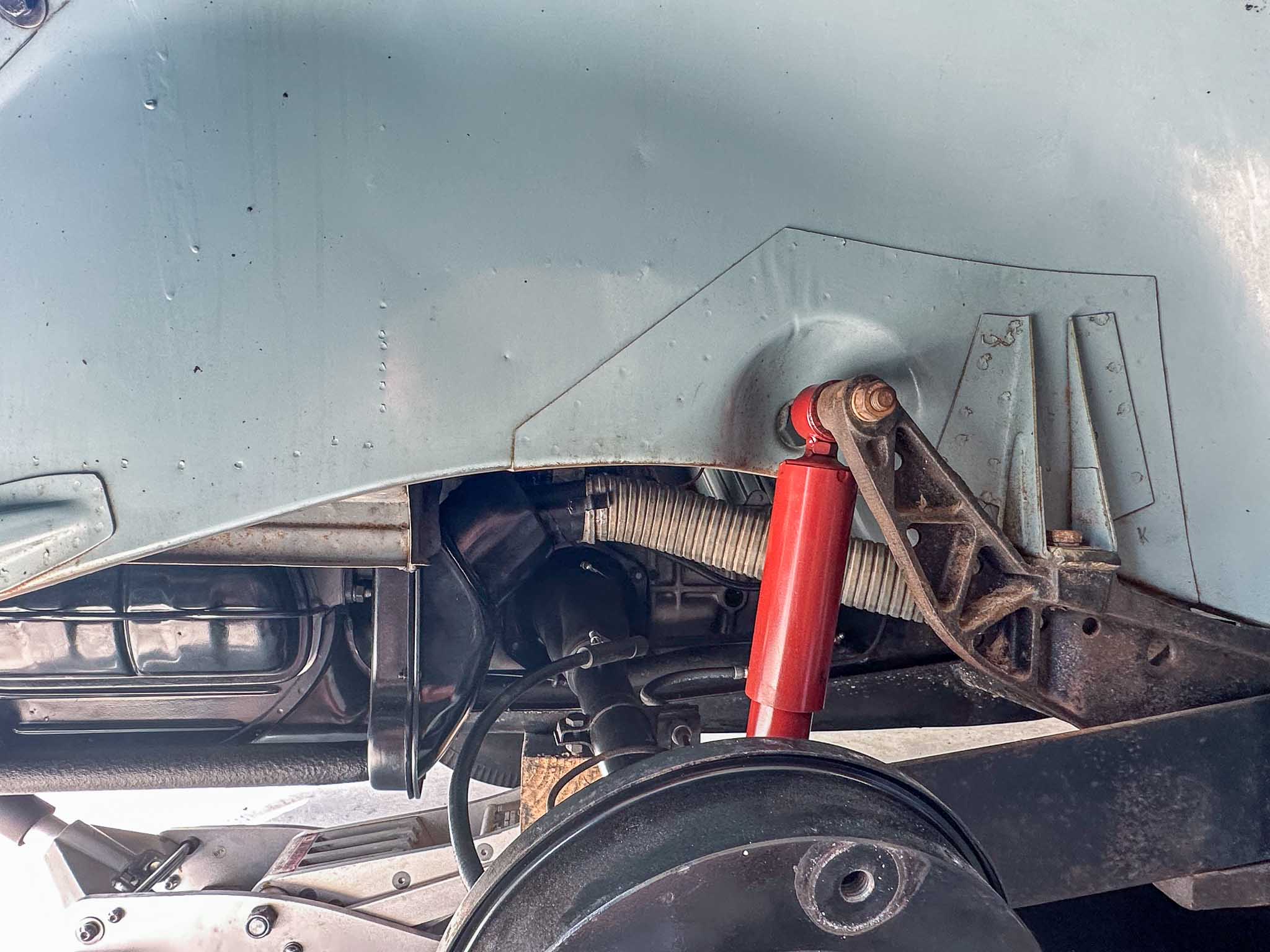

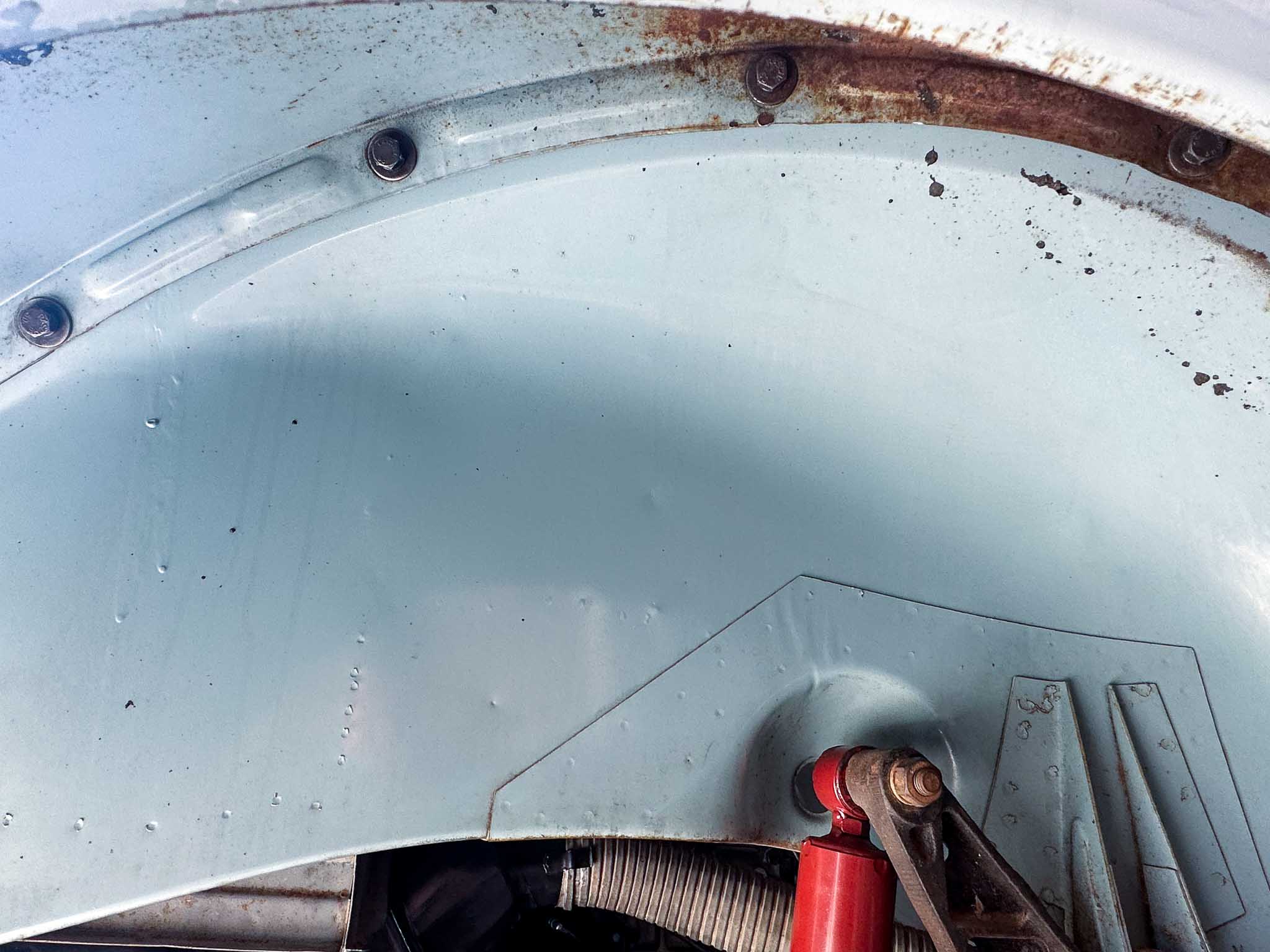

• New Wolfsburg West reproduction oil shocks front and rear.

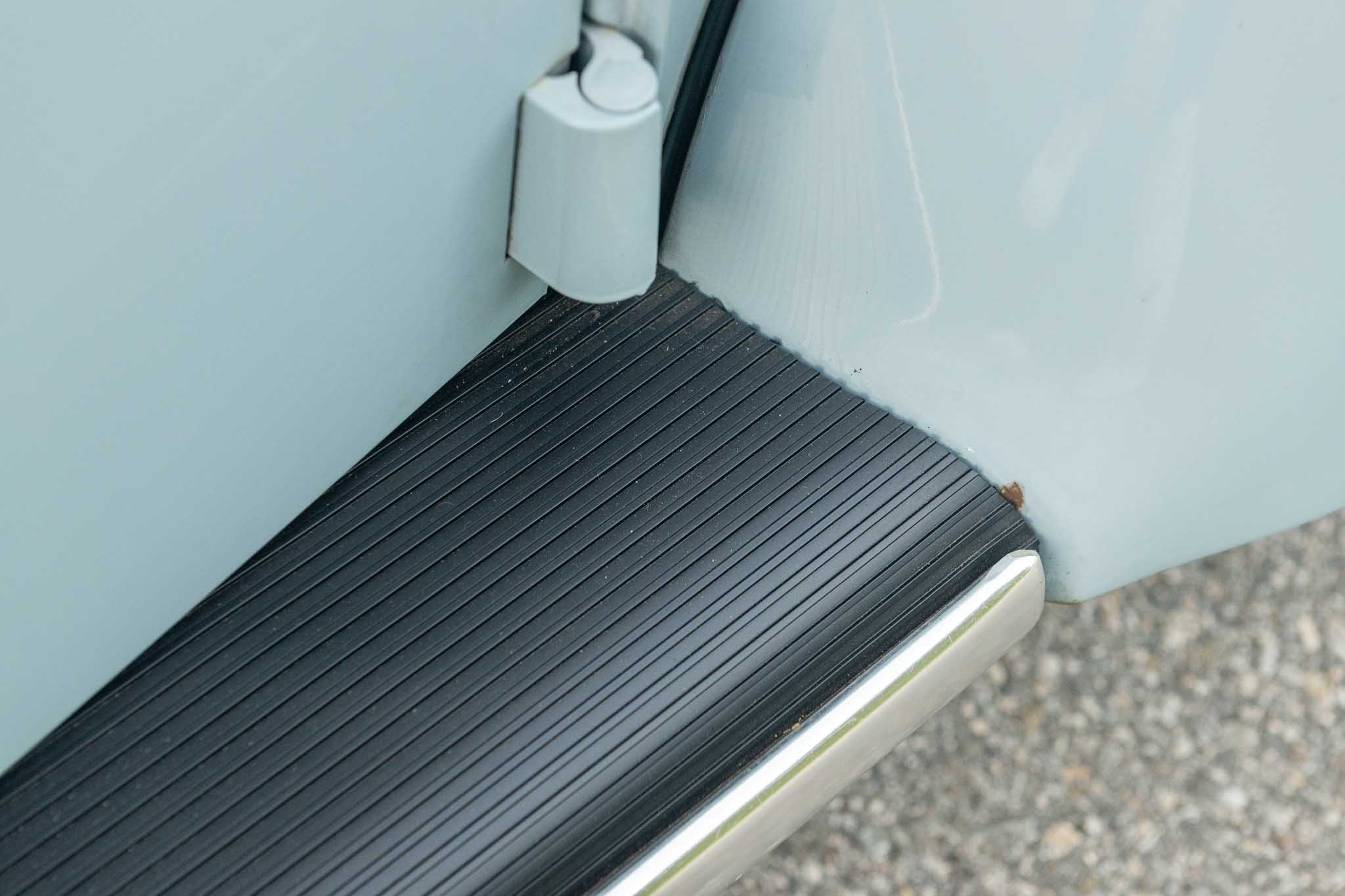

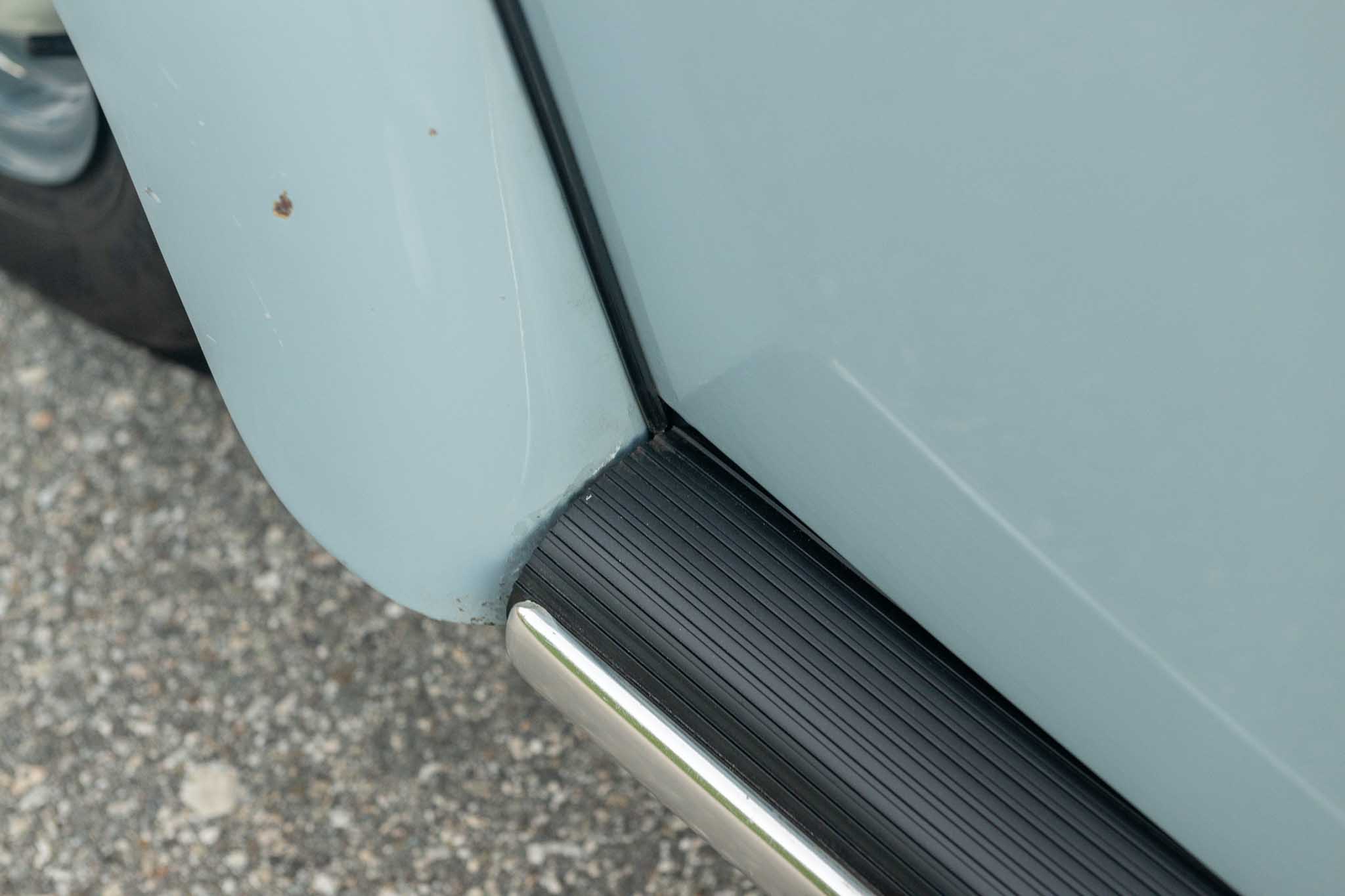

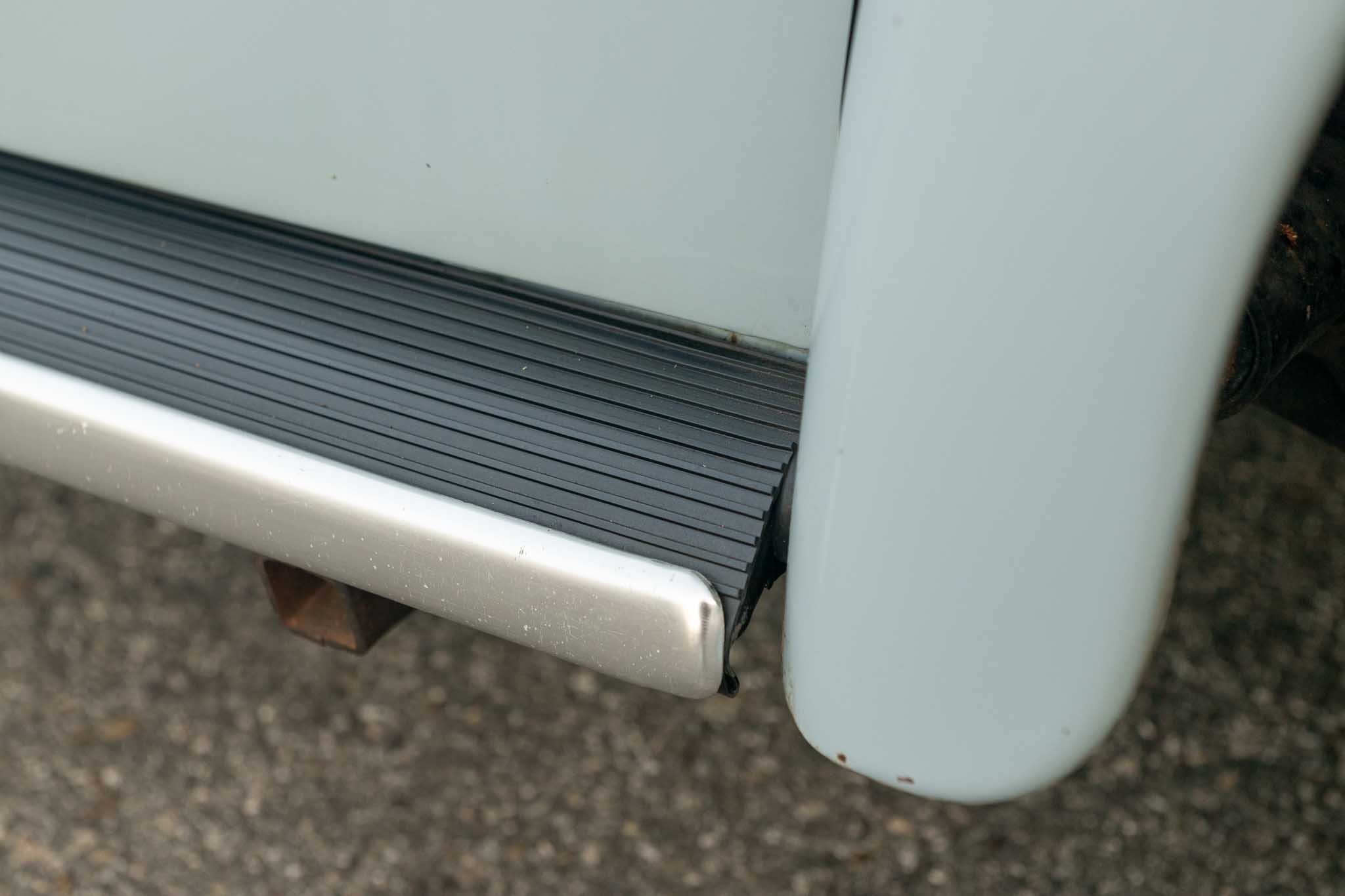

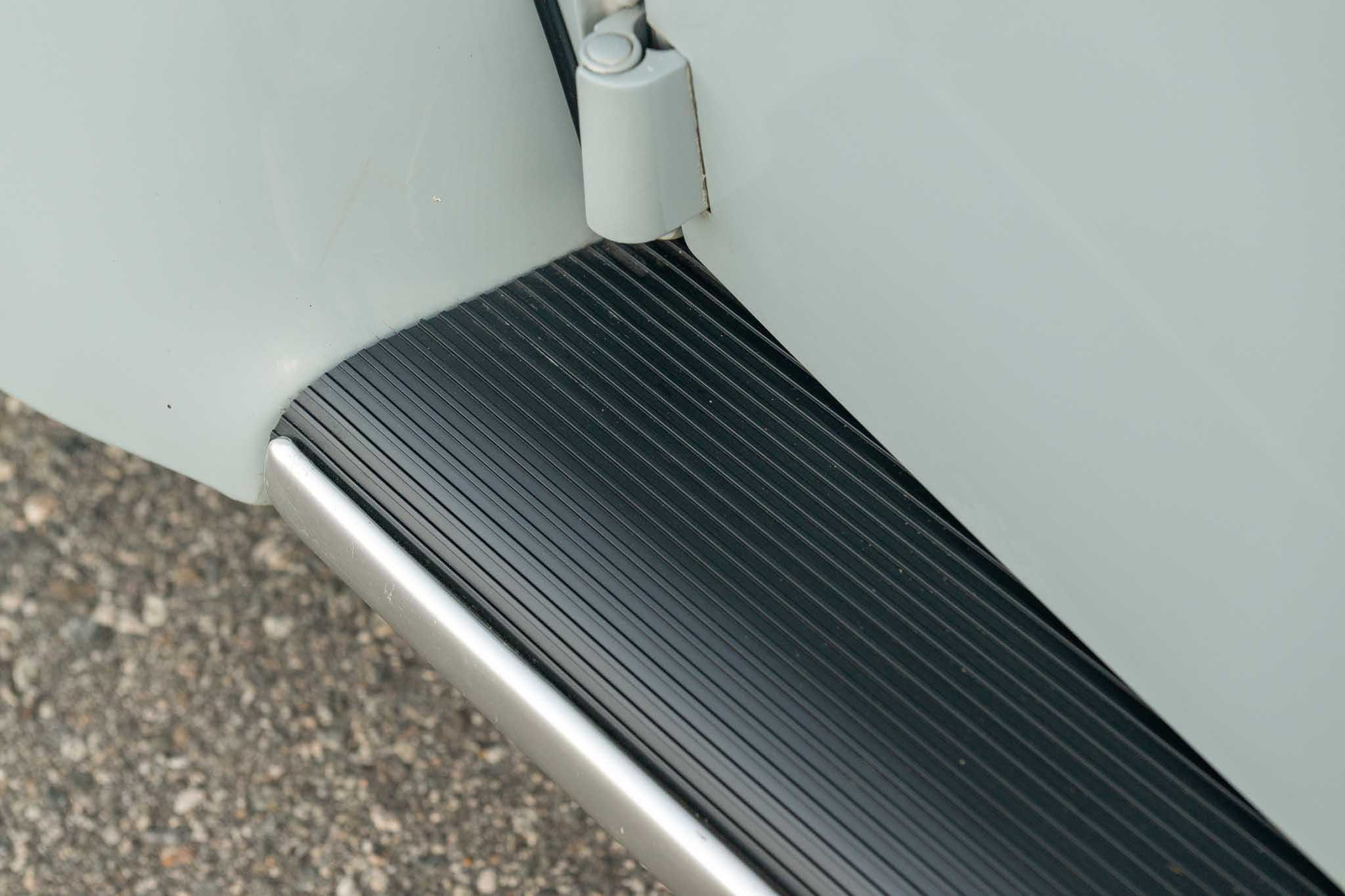

• New running boards with reuse of the original trim.

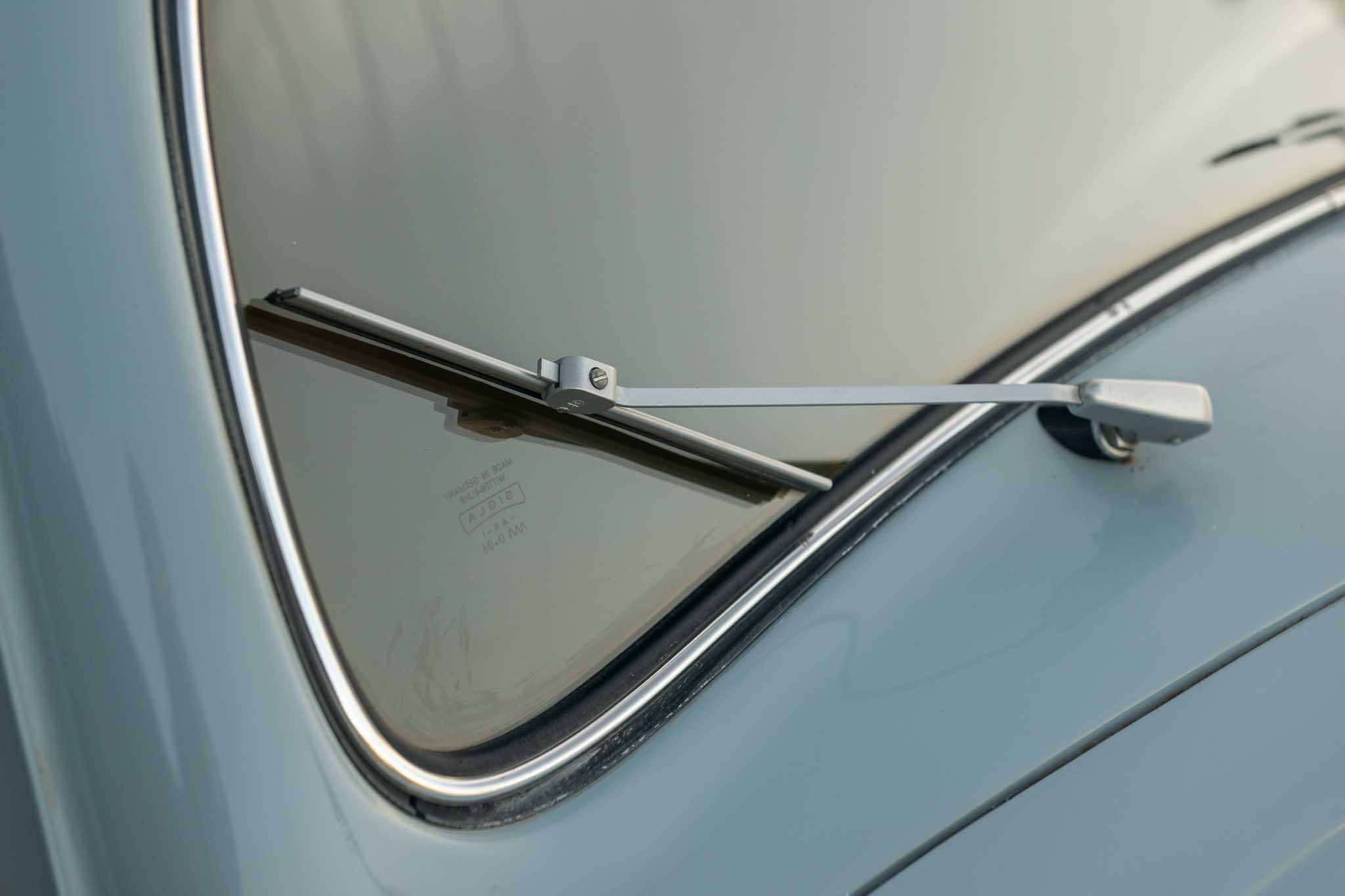

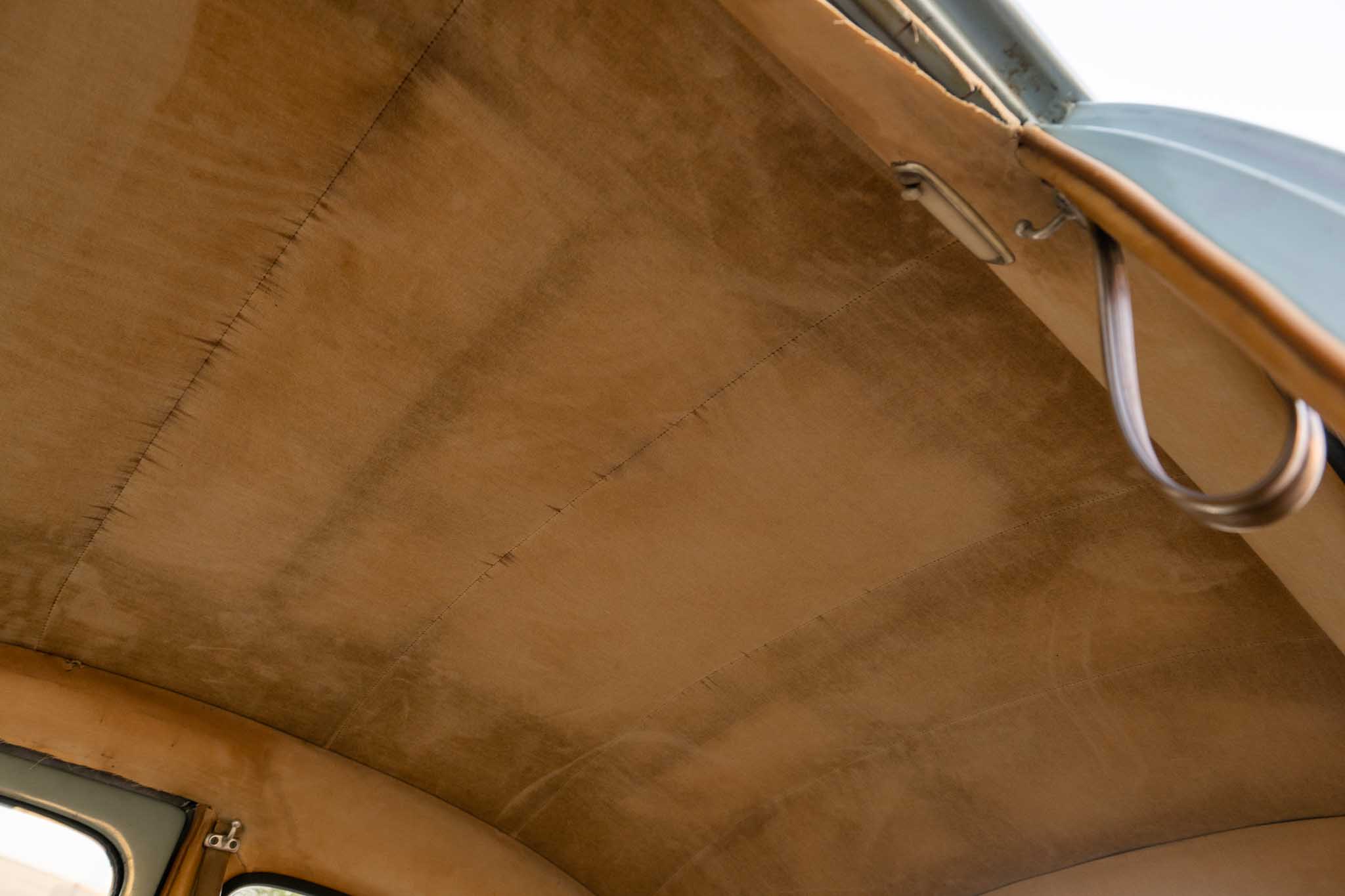

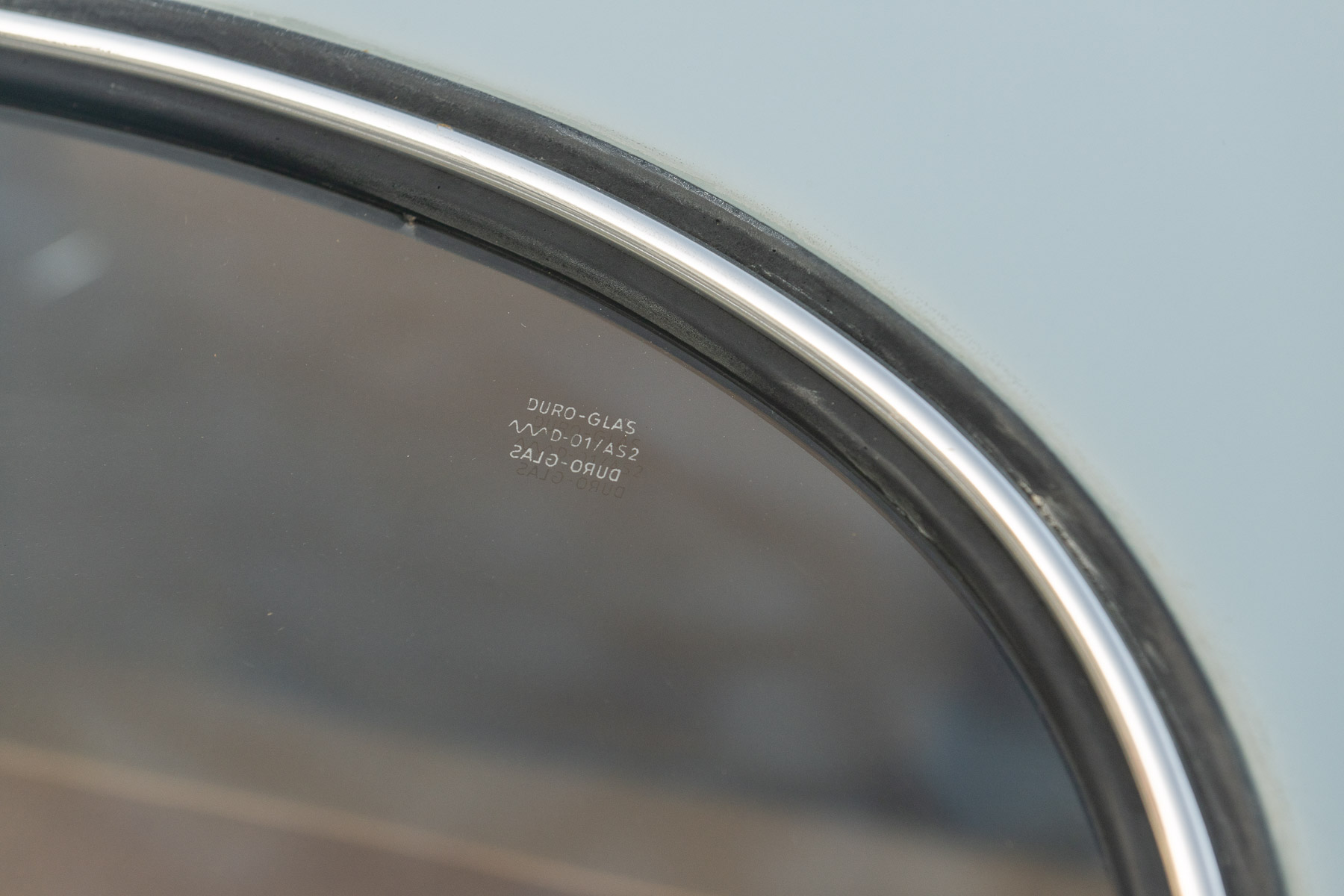

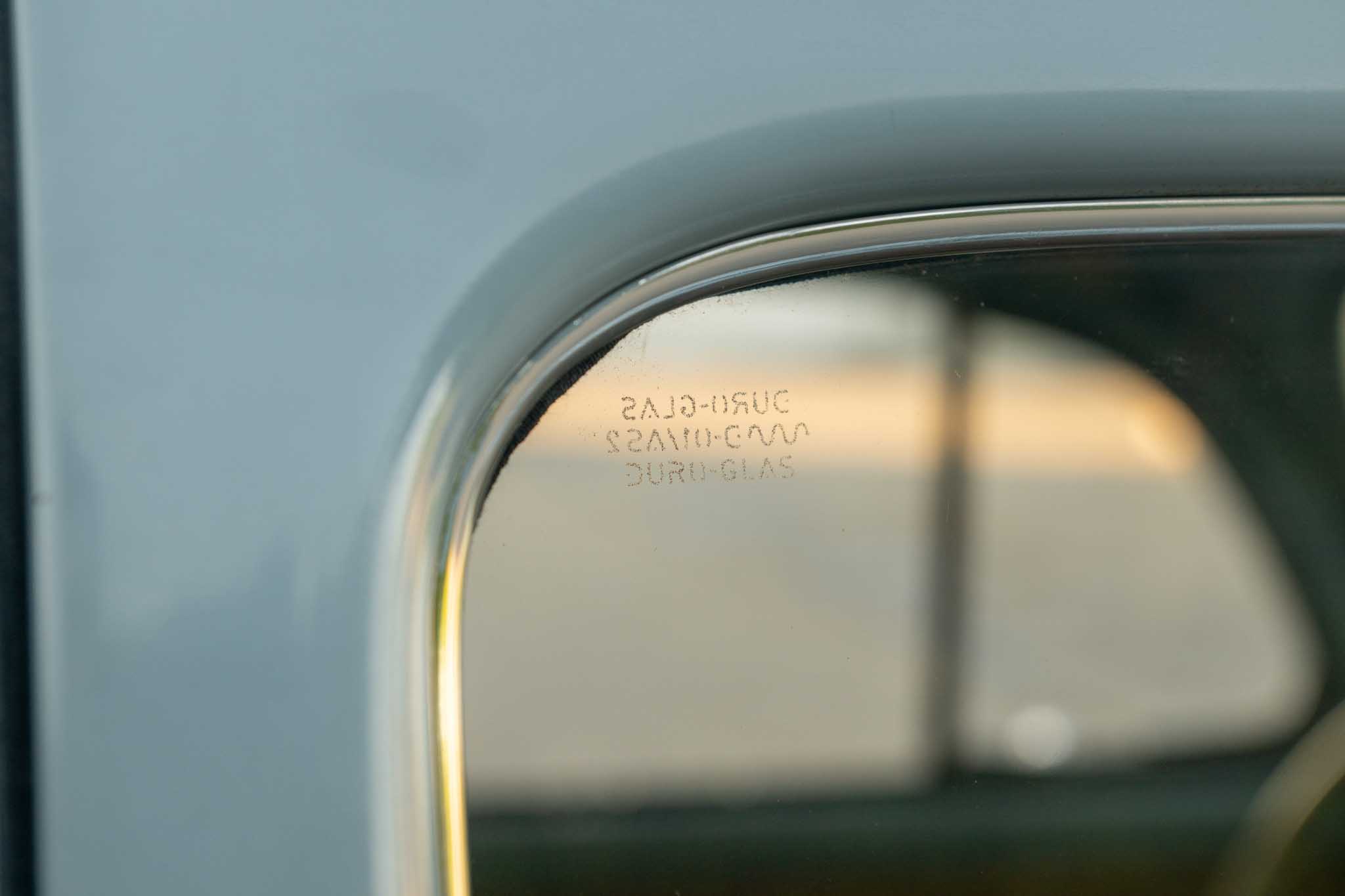

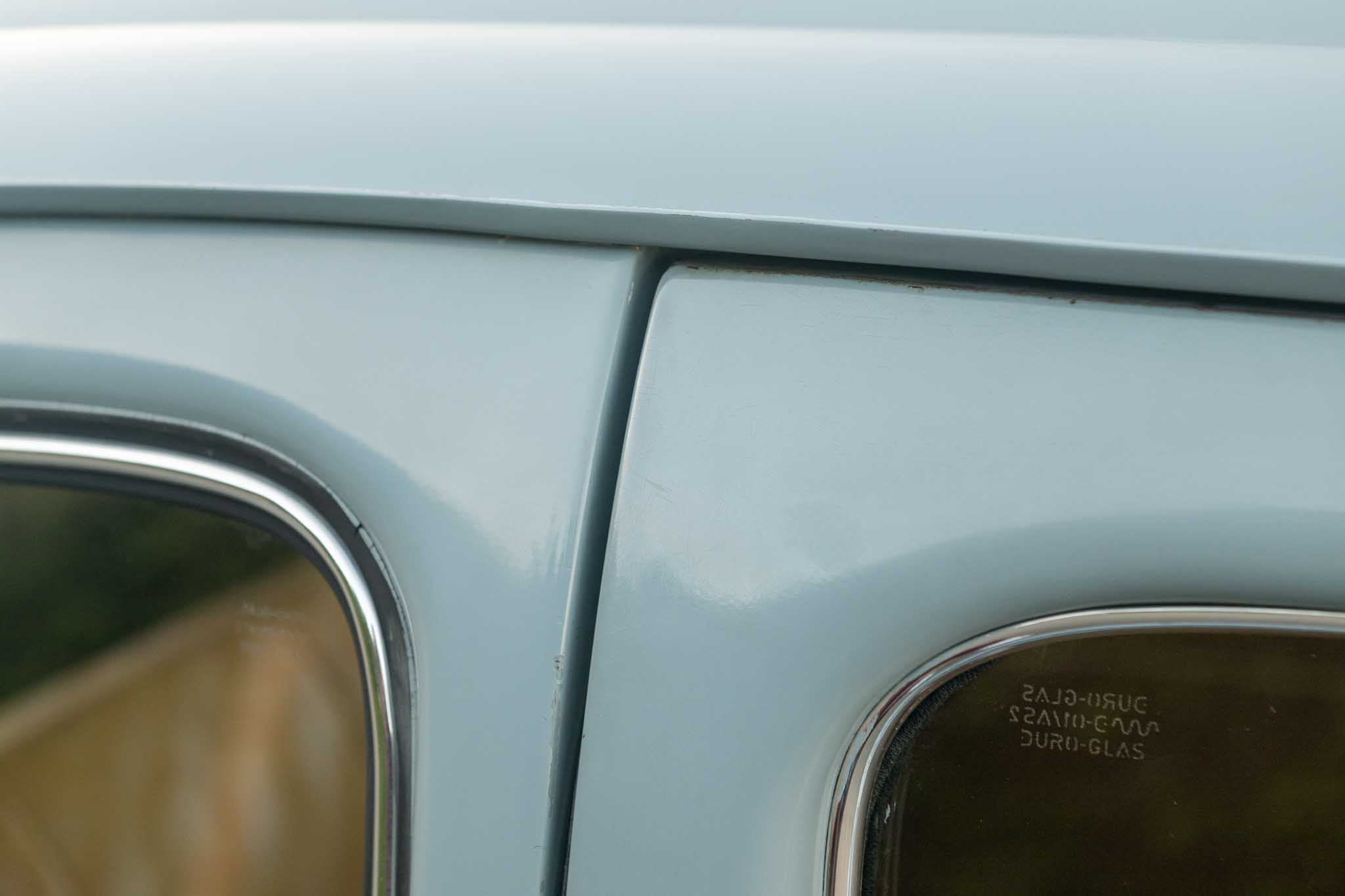

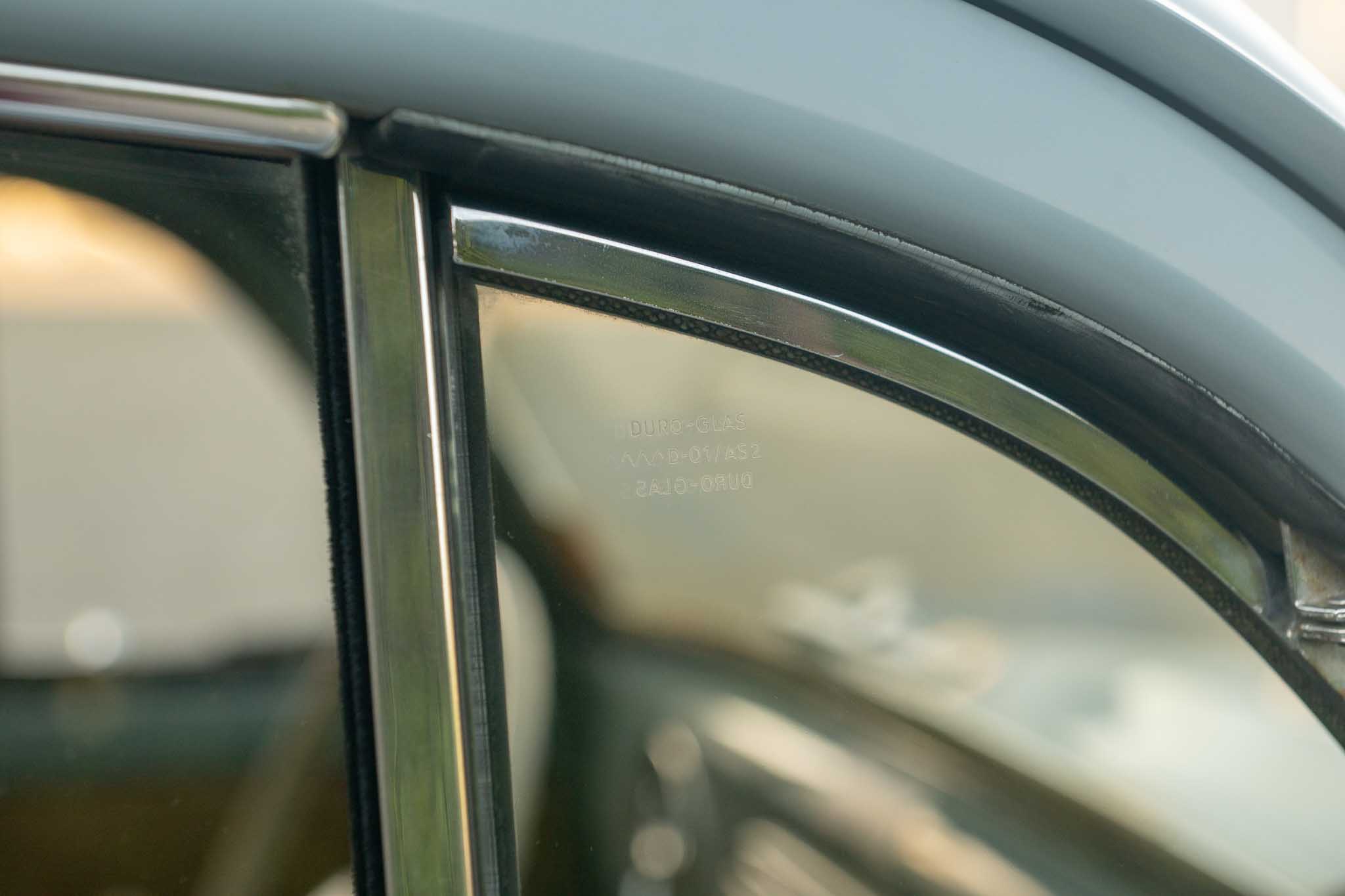

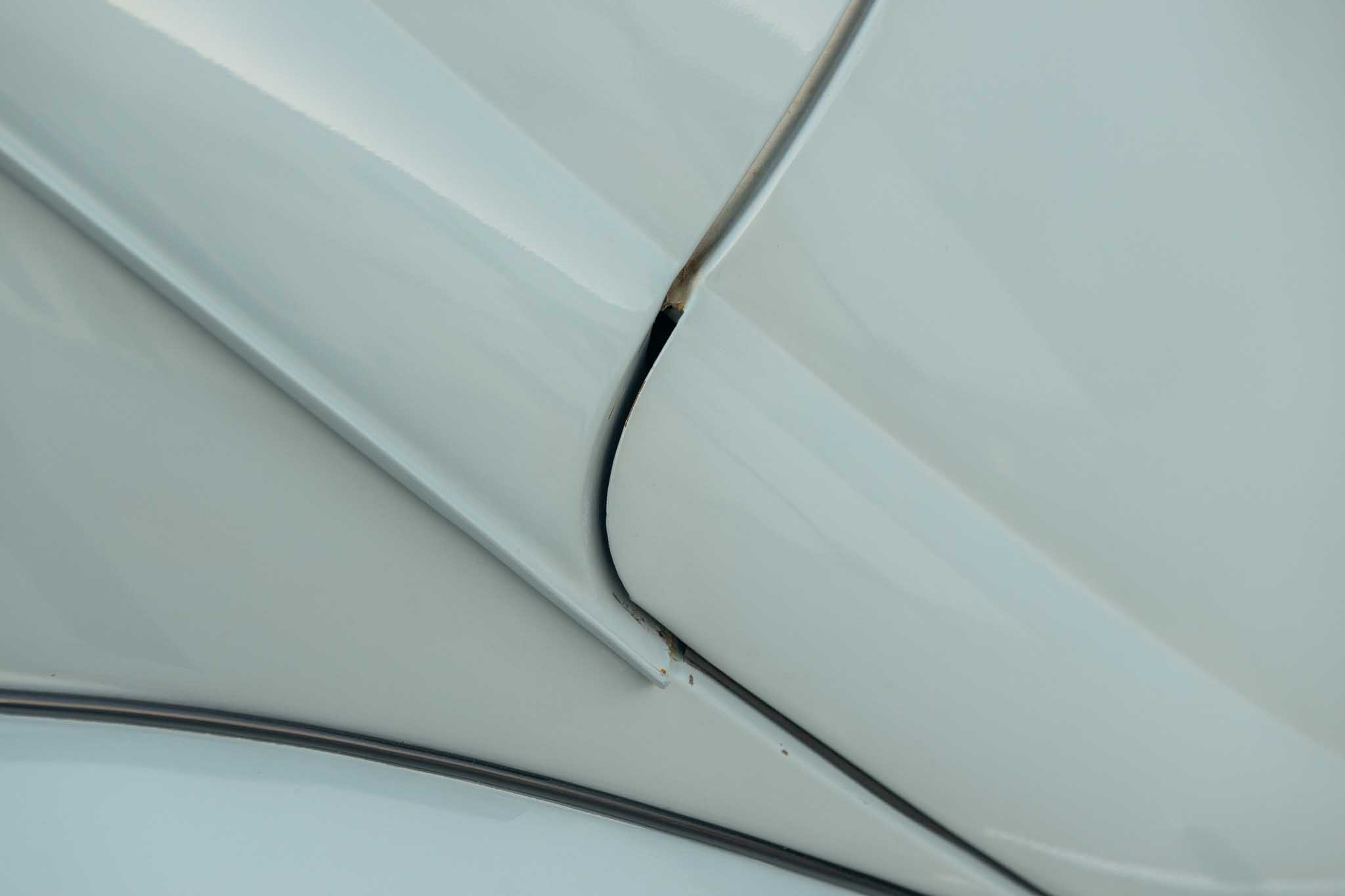

• All body rubber was replaced due to cracking (window rubber was left as is with some cracking but still supple to preserve the headliner).

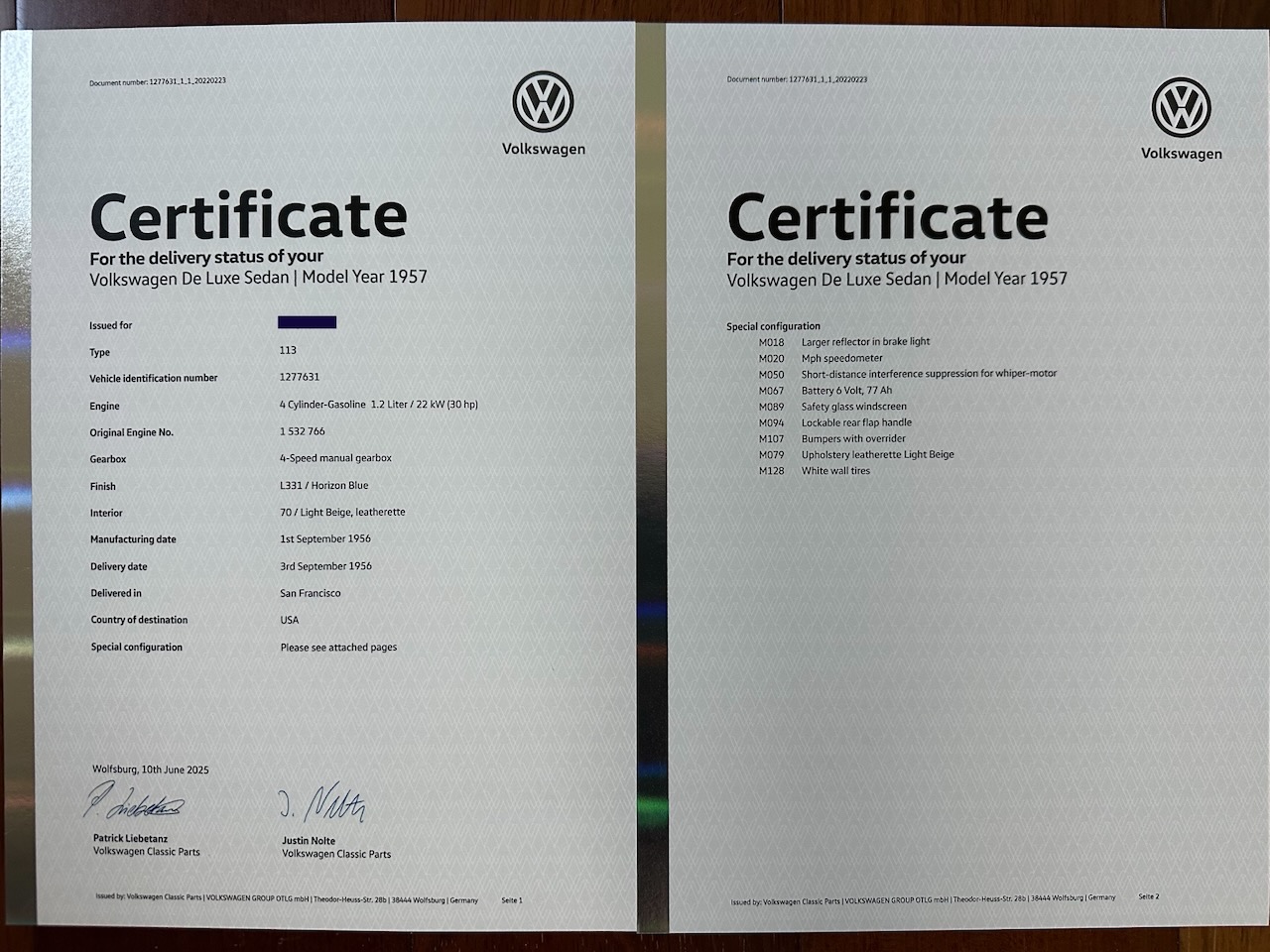

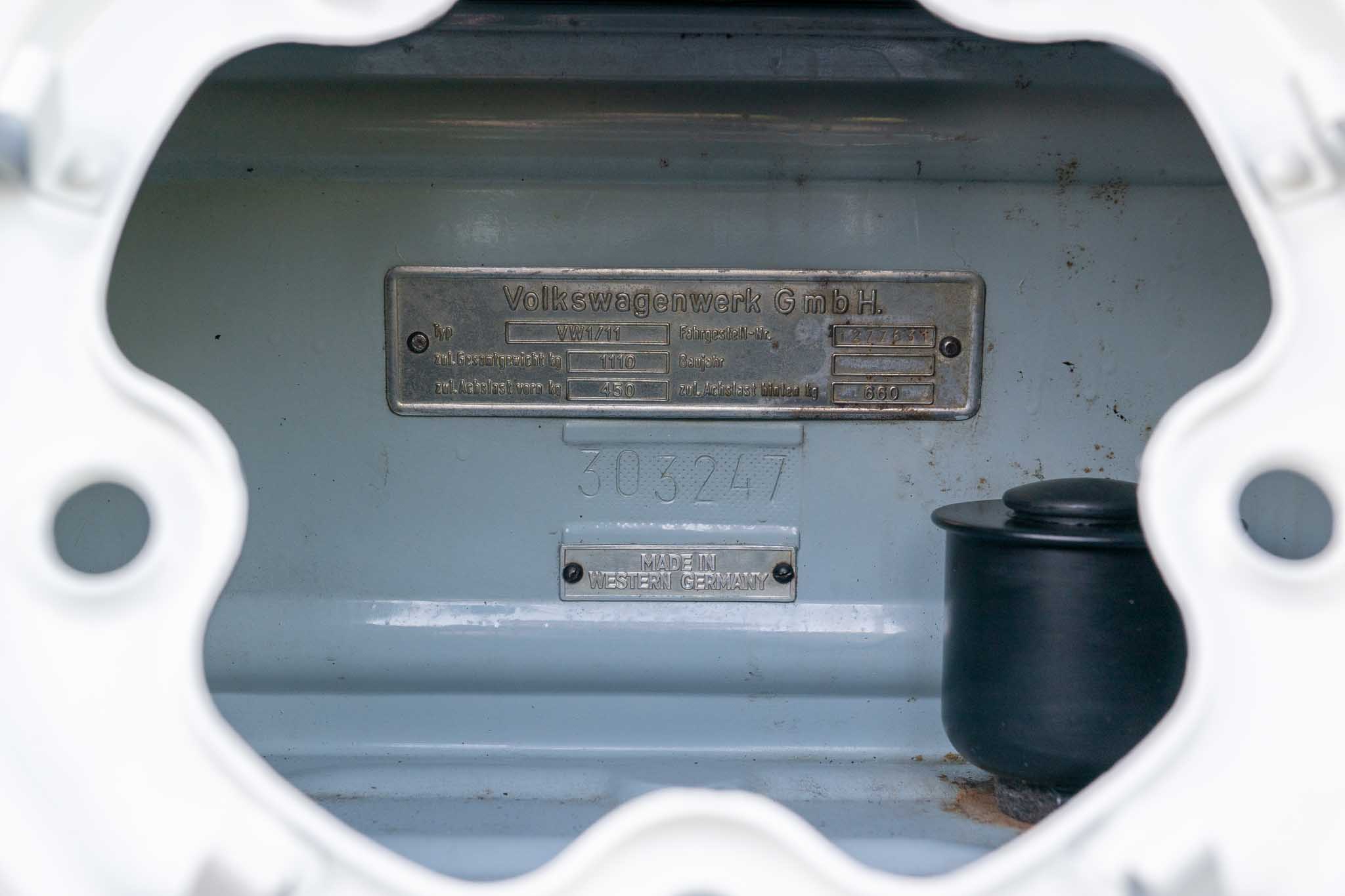

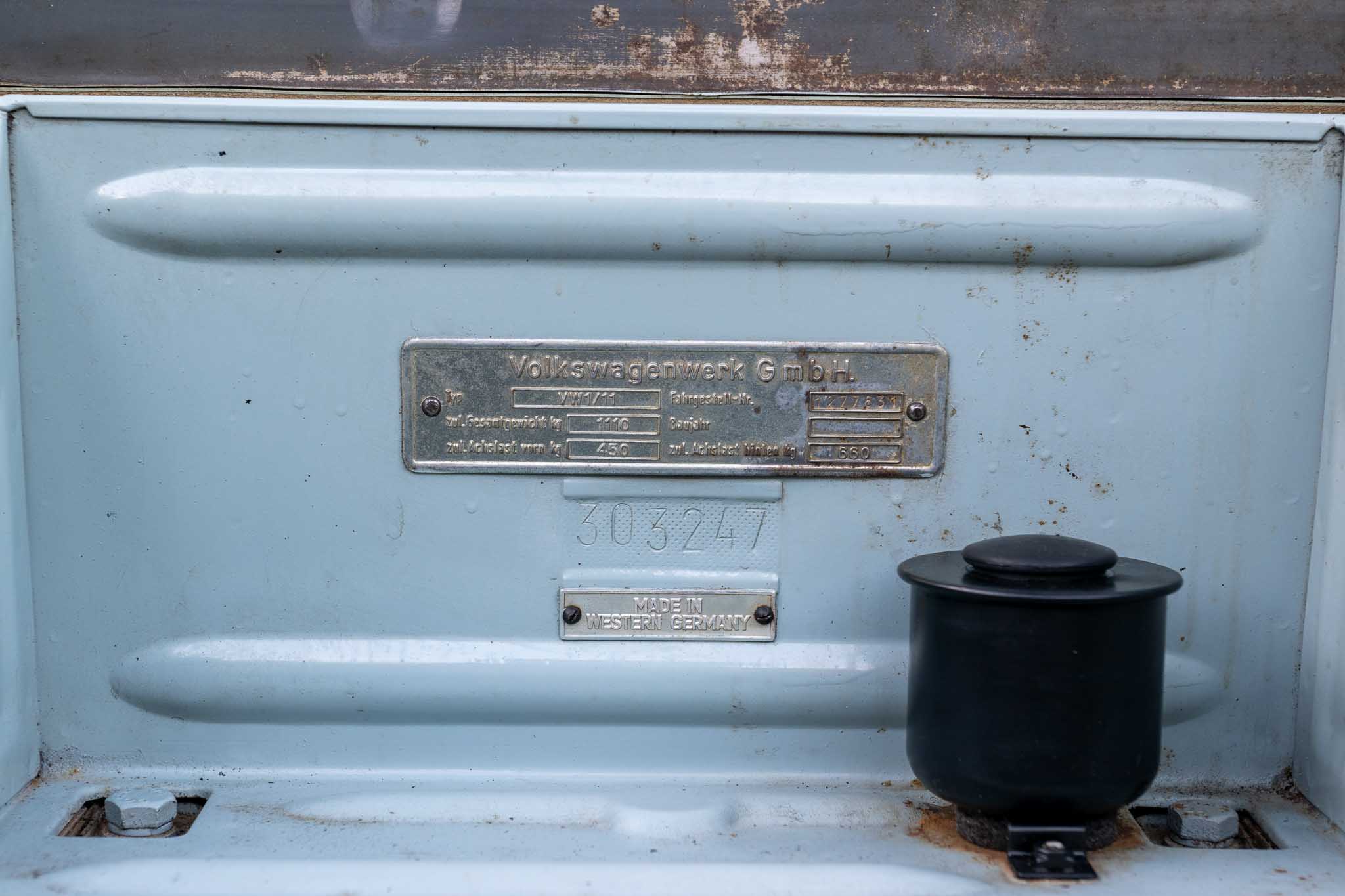

• Here you can see the birthdate of the car is 9/1/56 and exported on 9/3/56

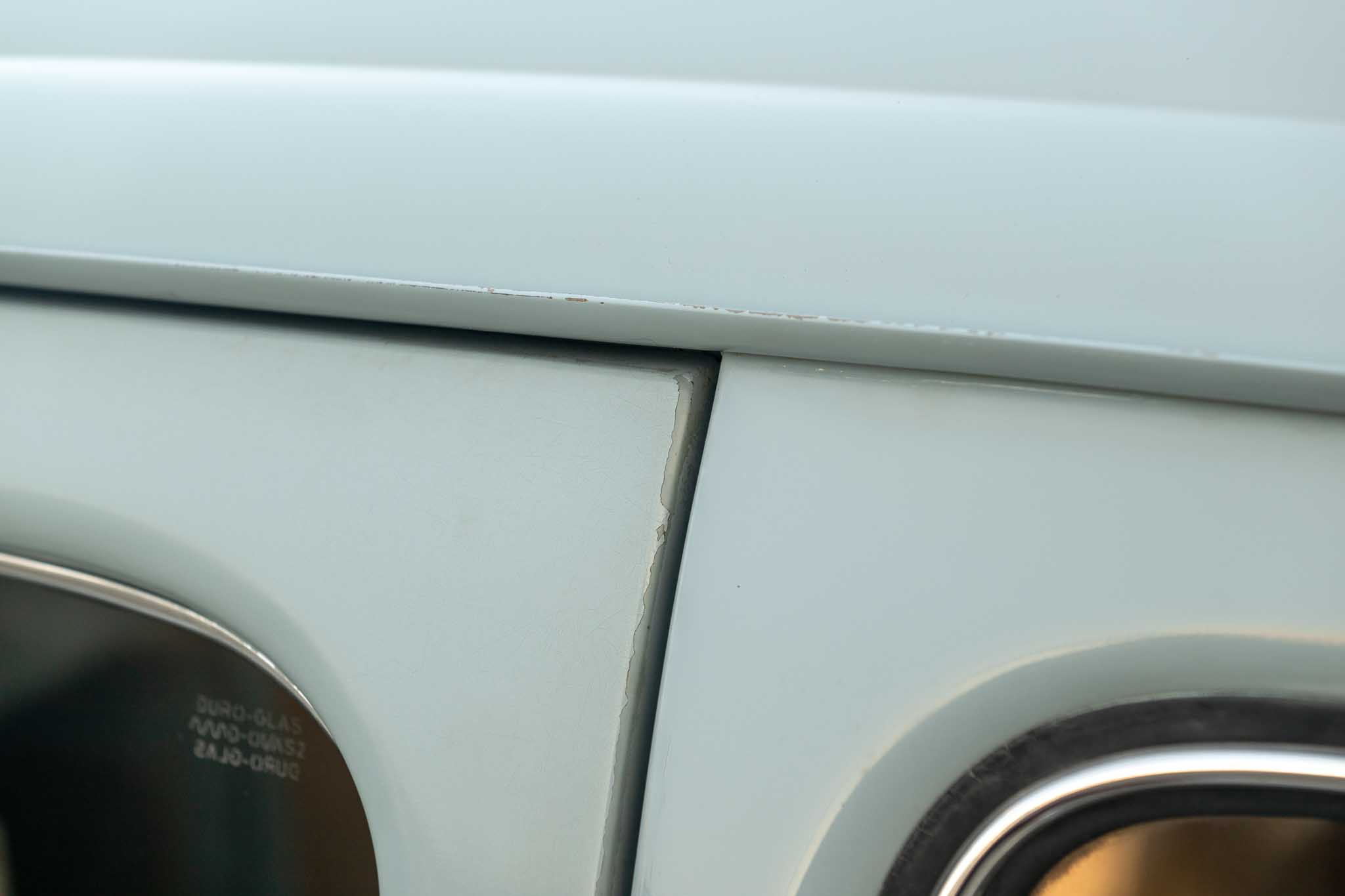

• The color of L331 Horizon Blue was the factory color

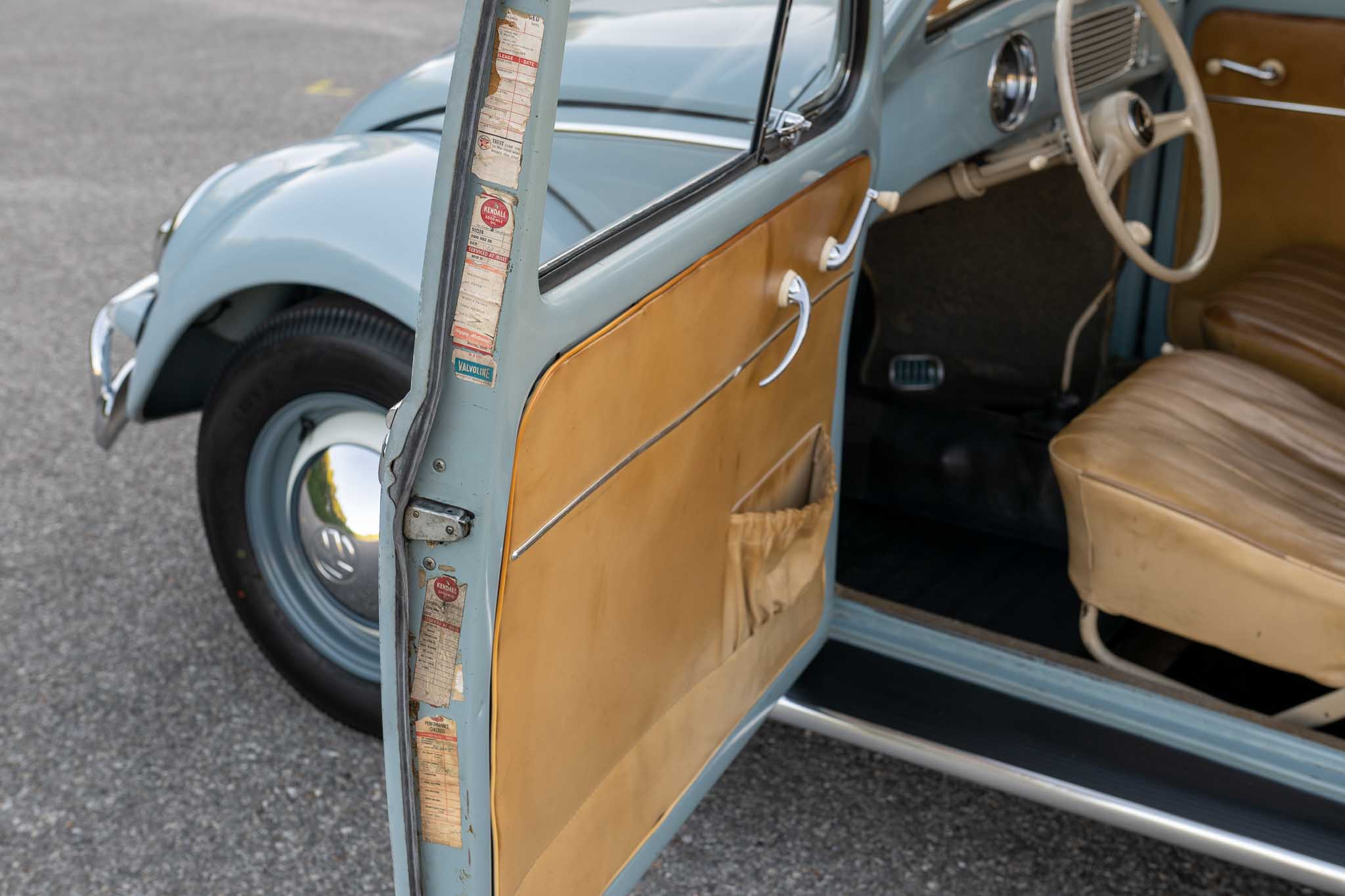

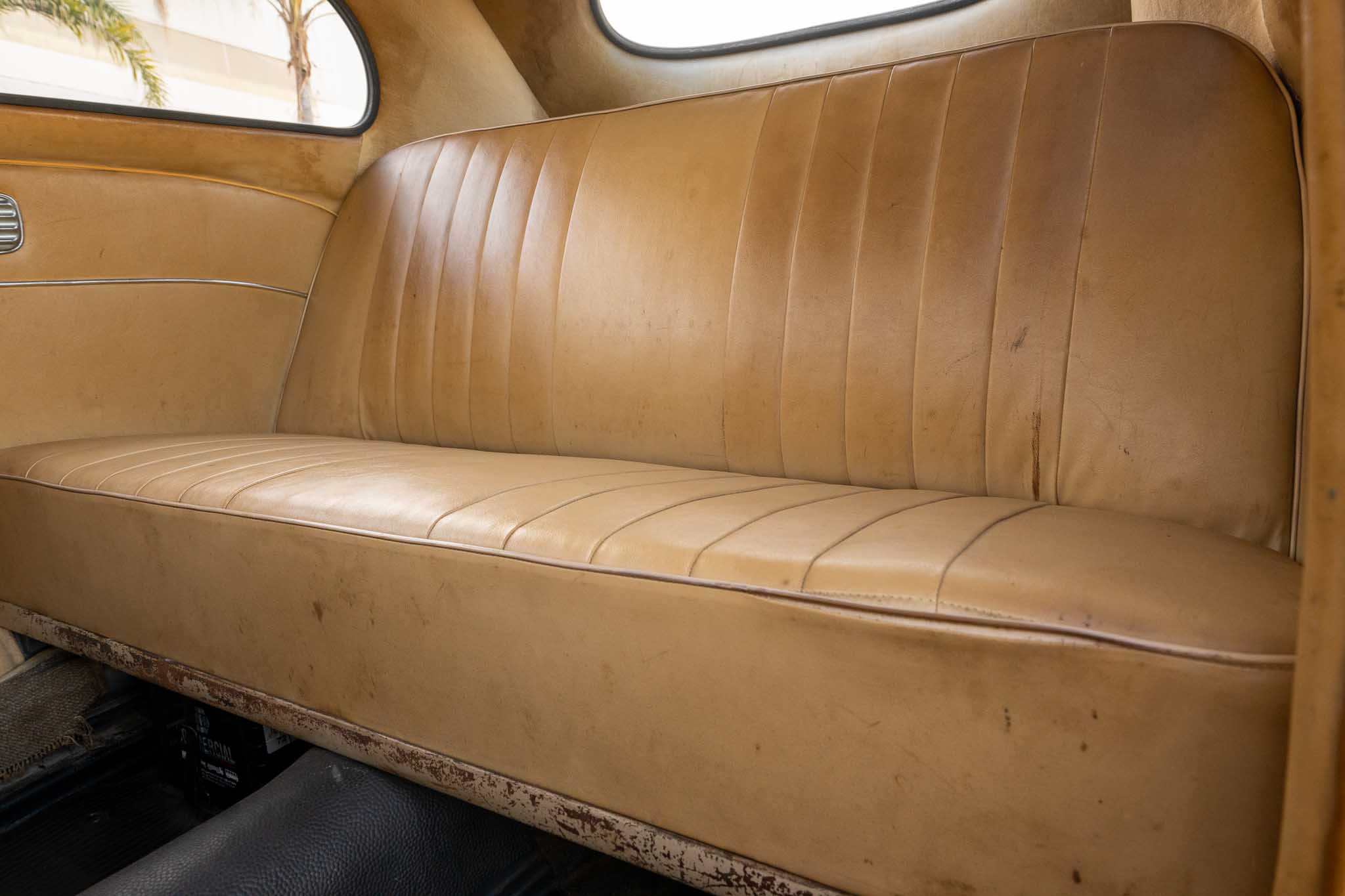

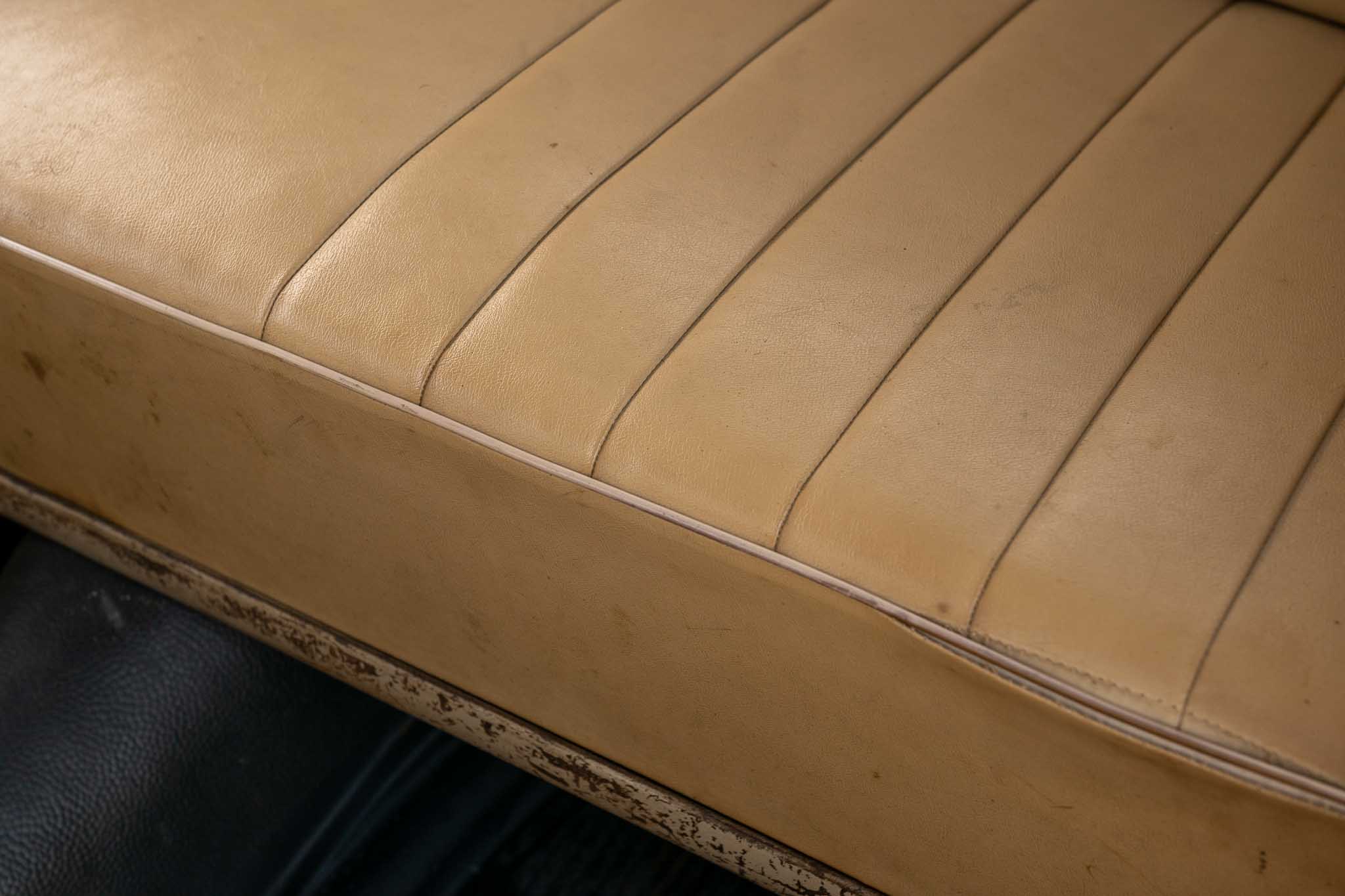

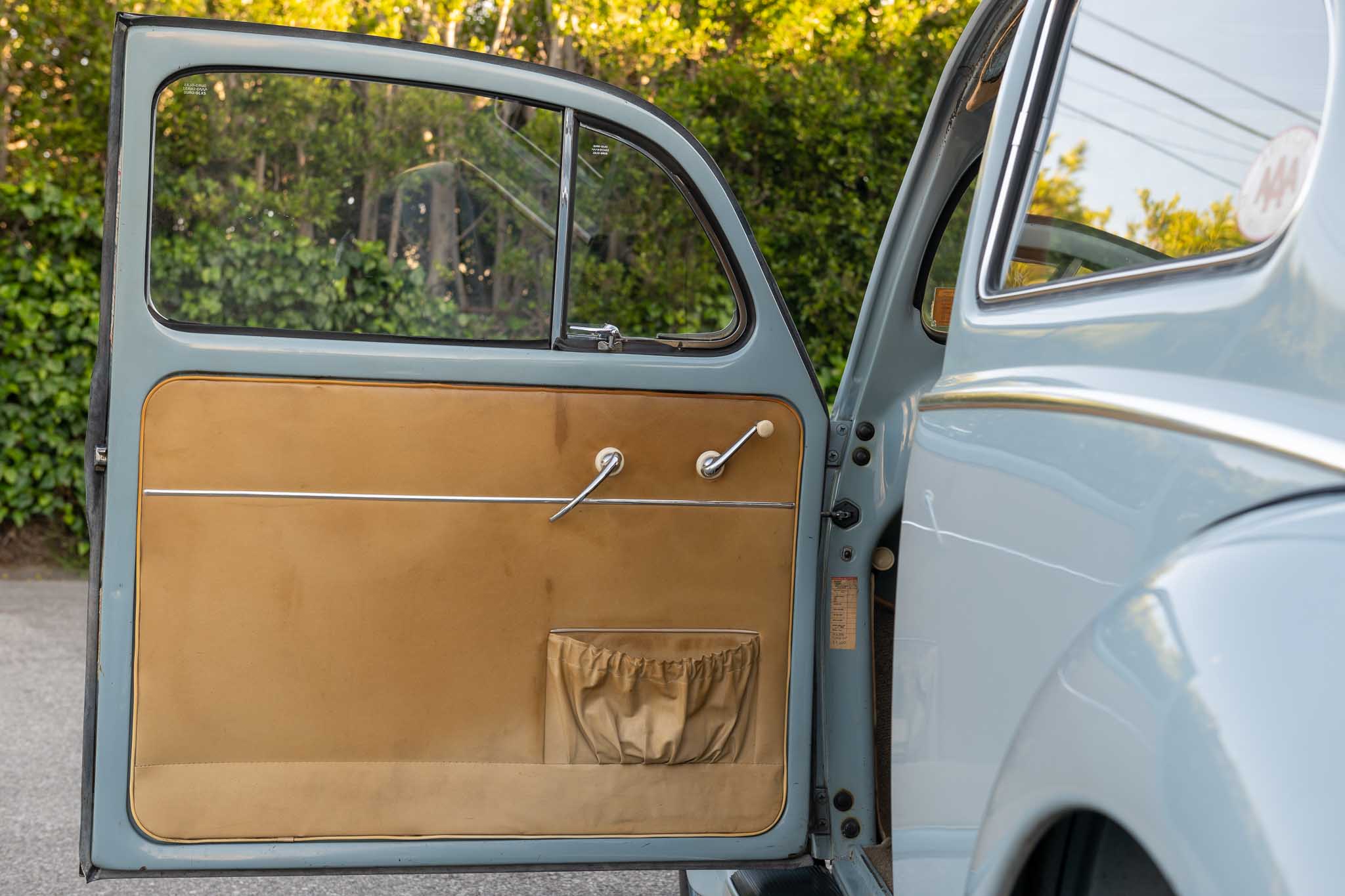

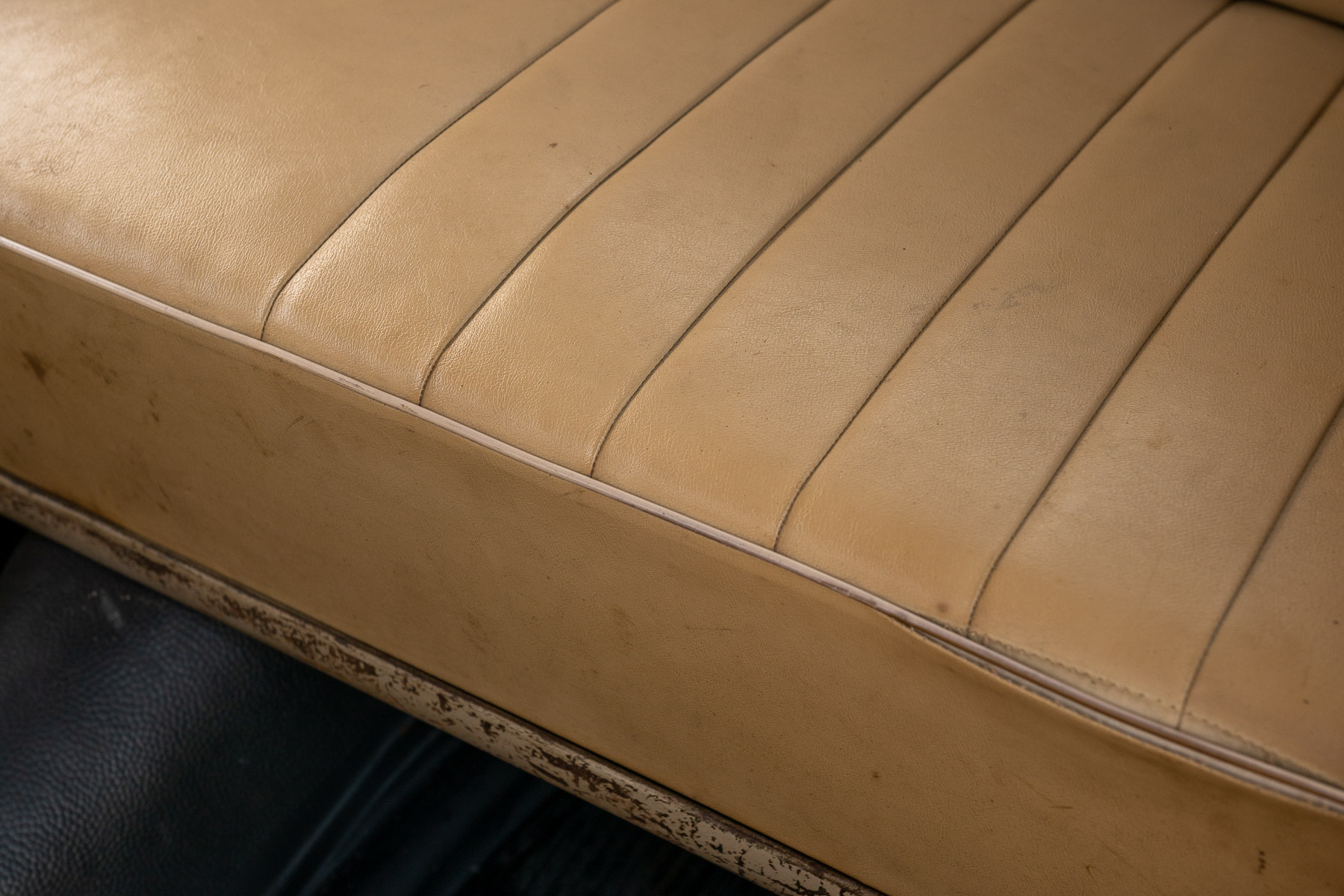

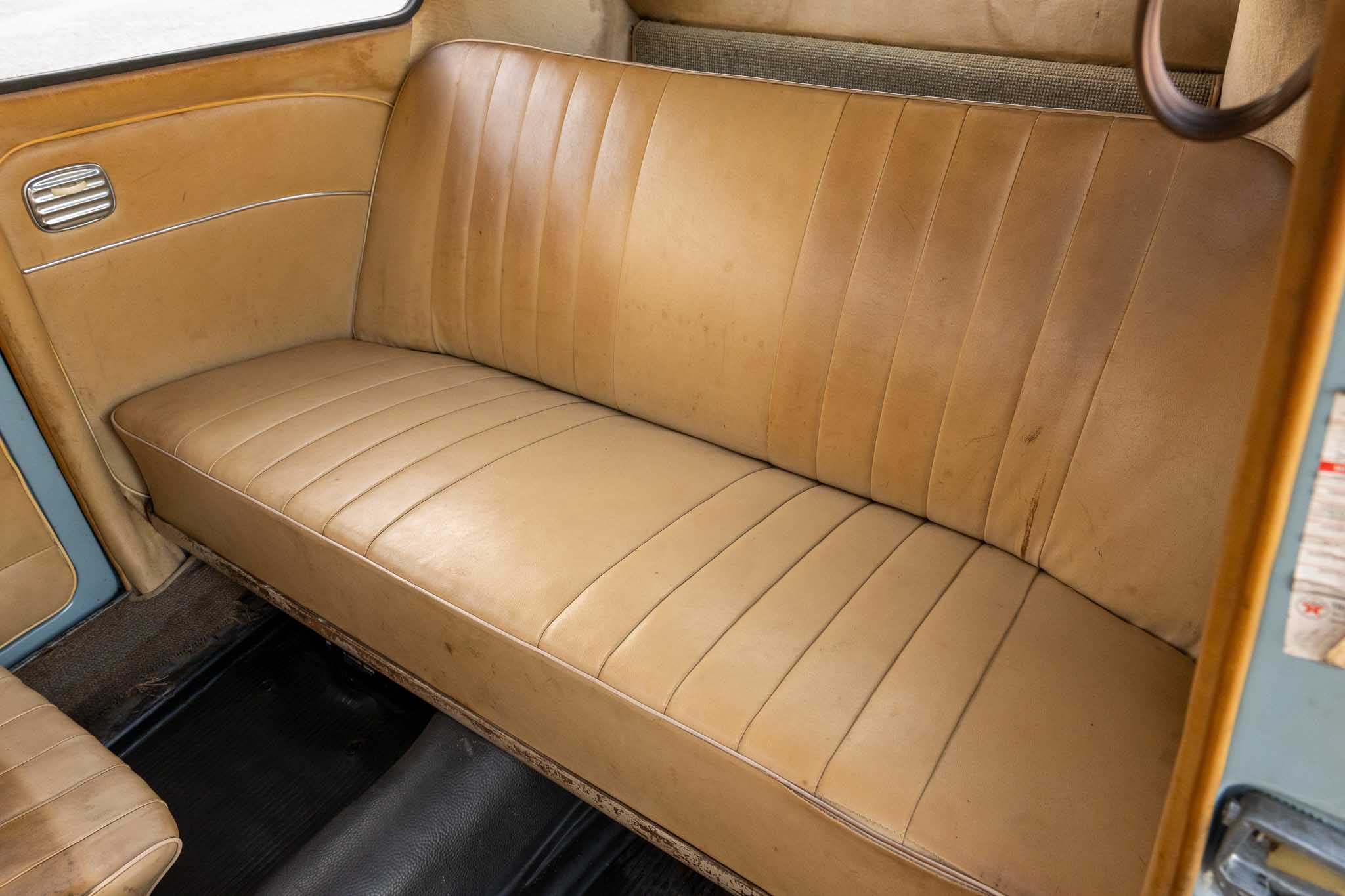

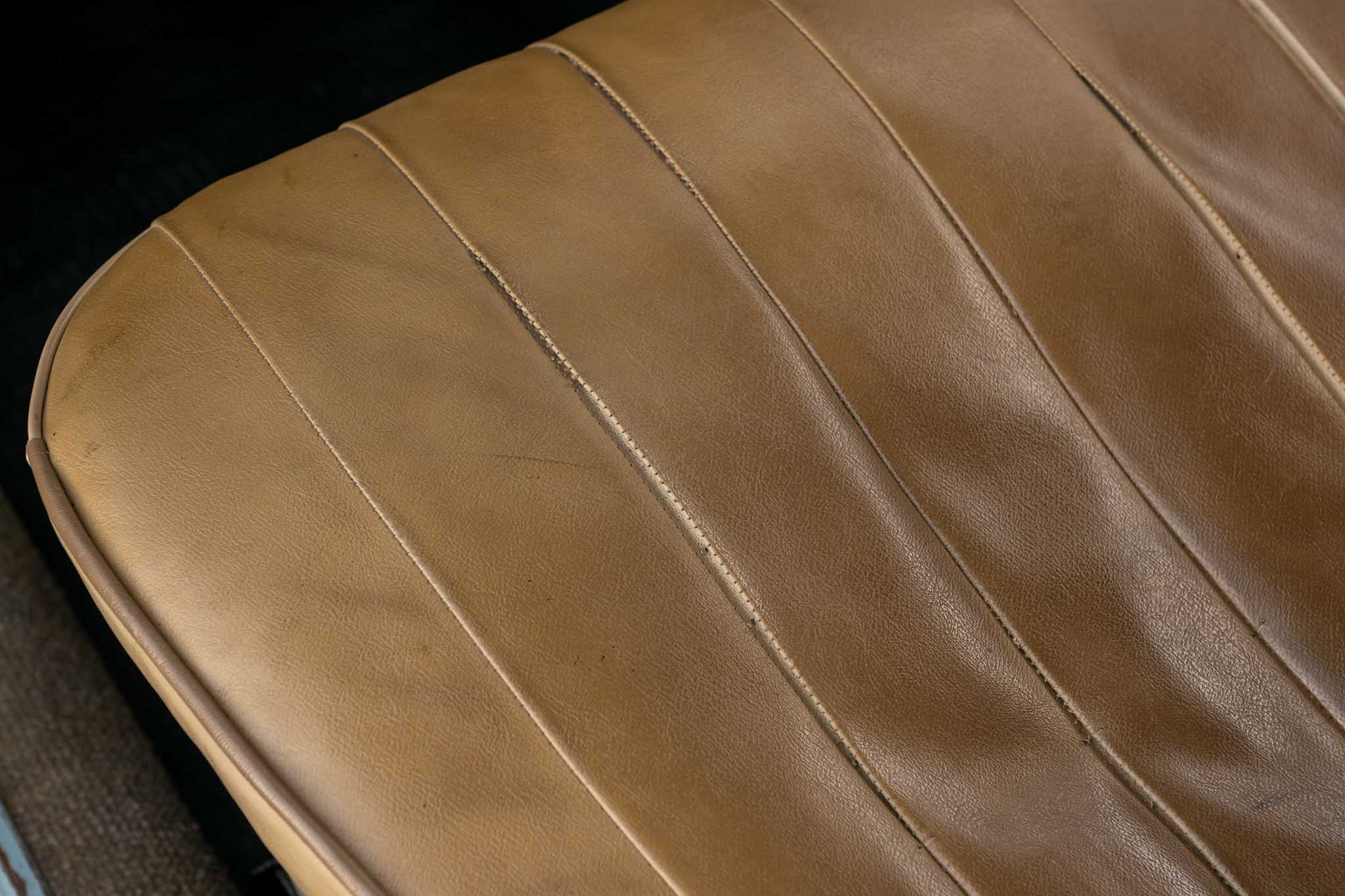

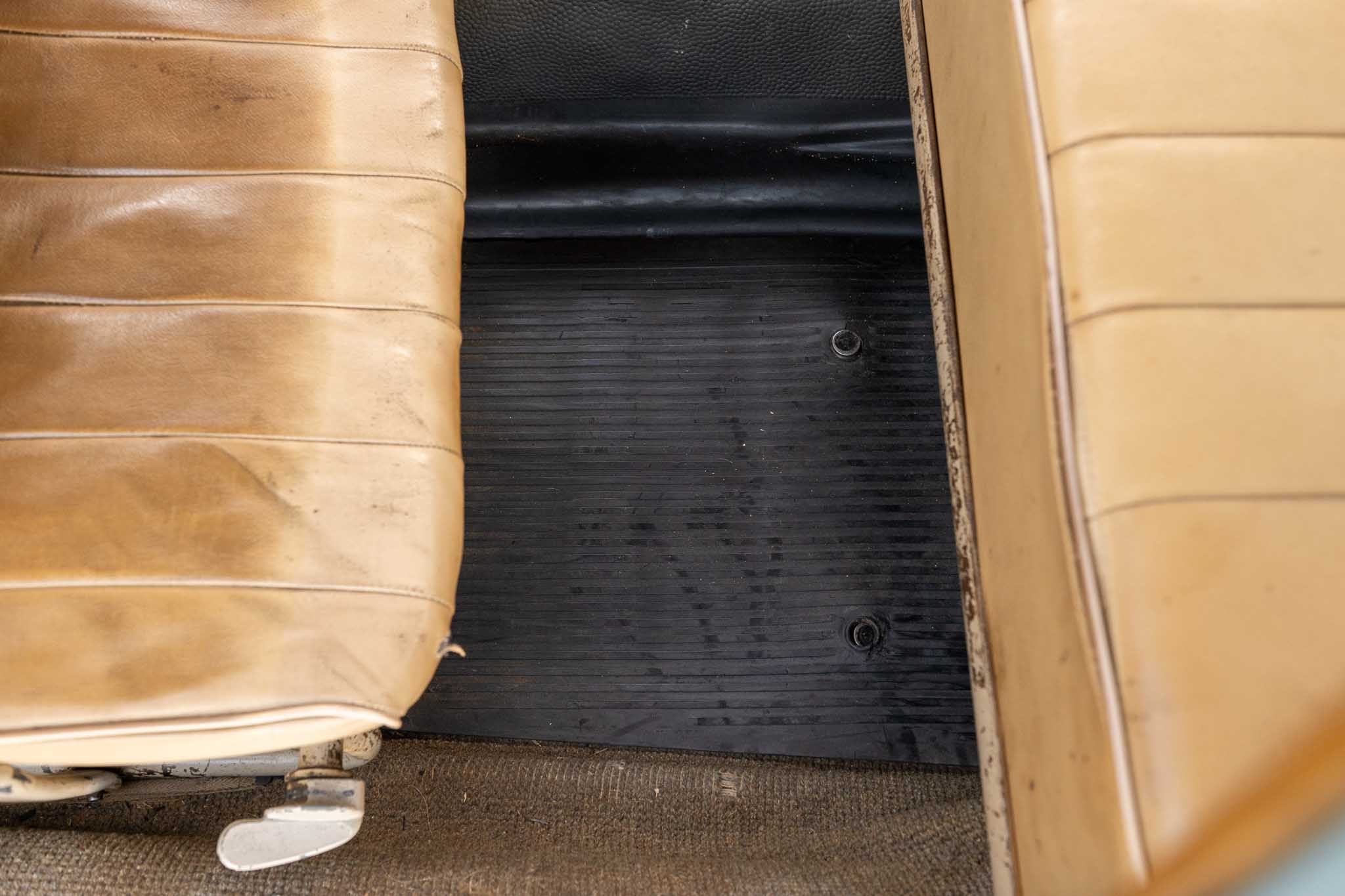

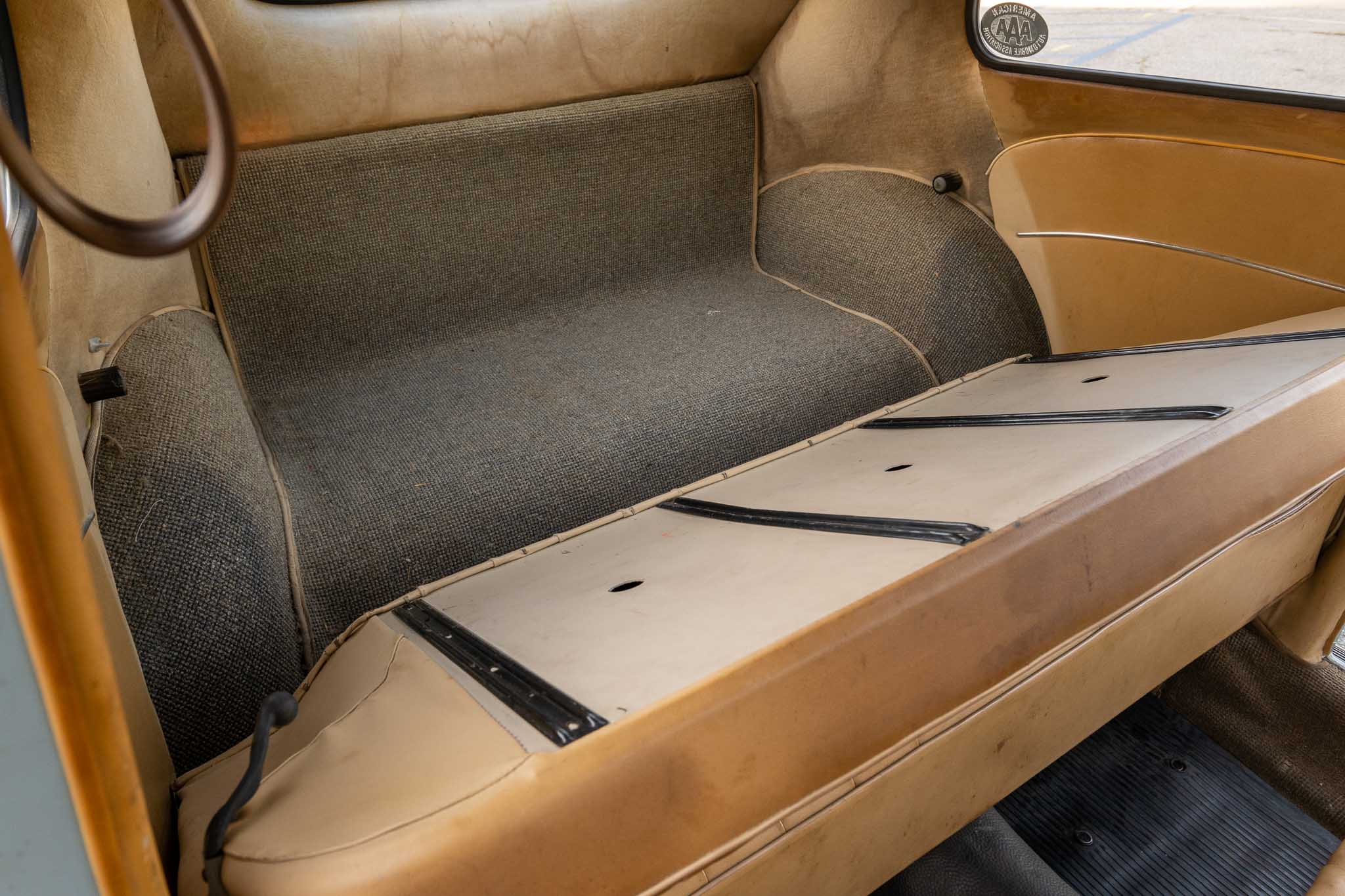

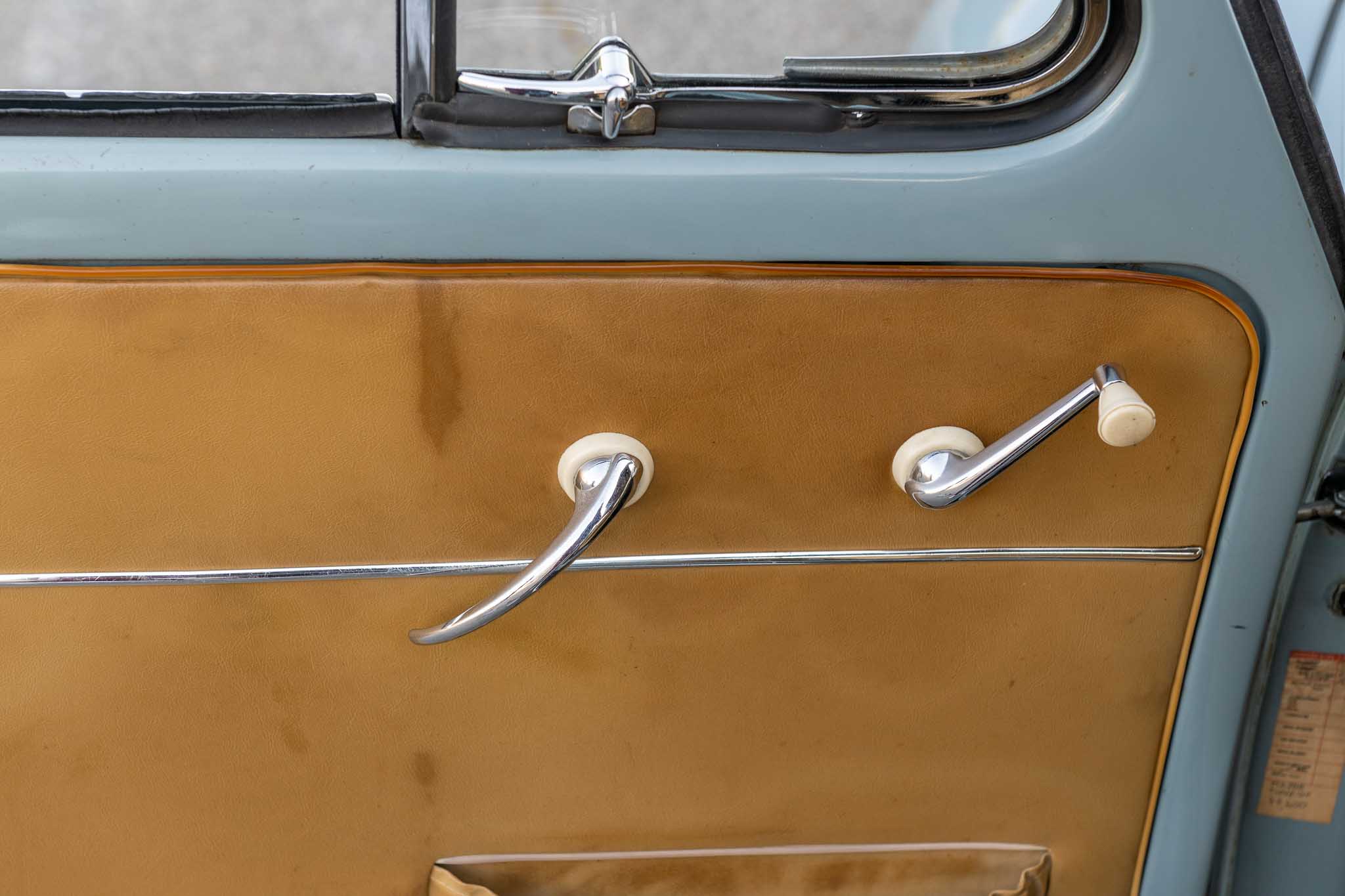

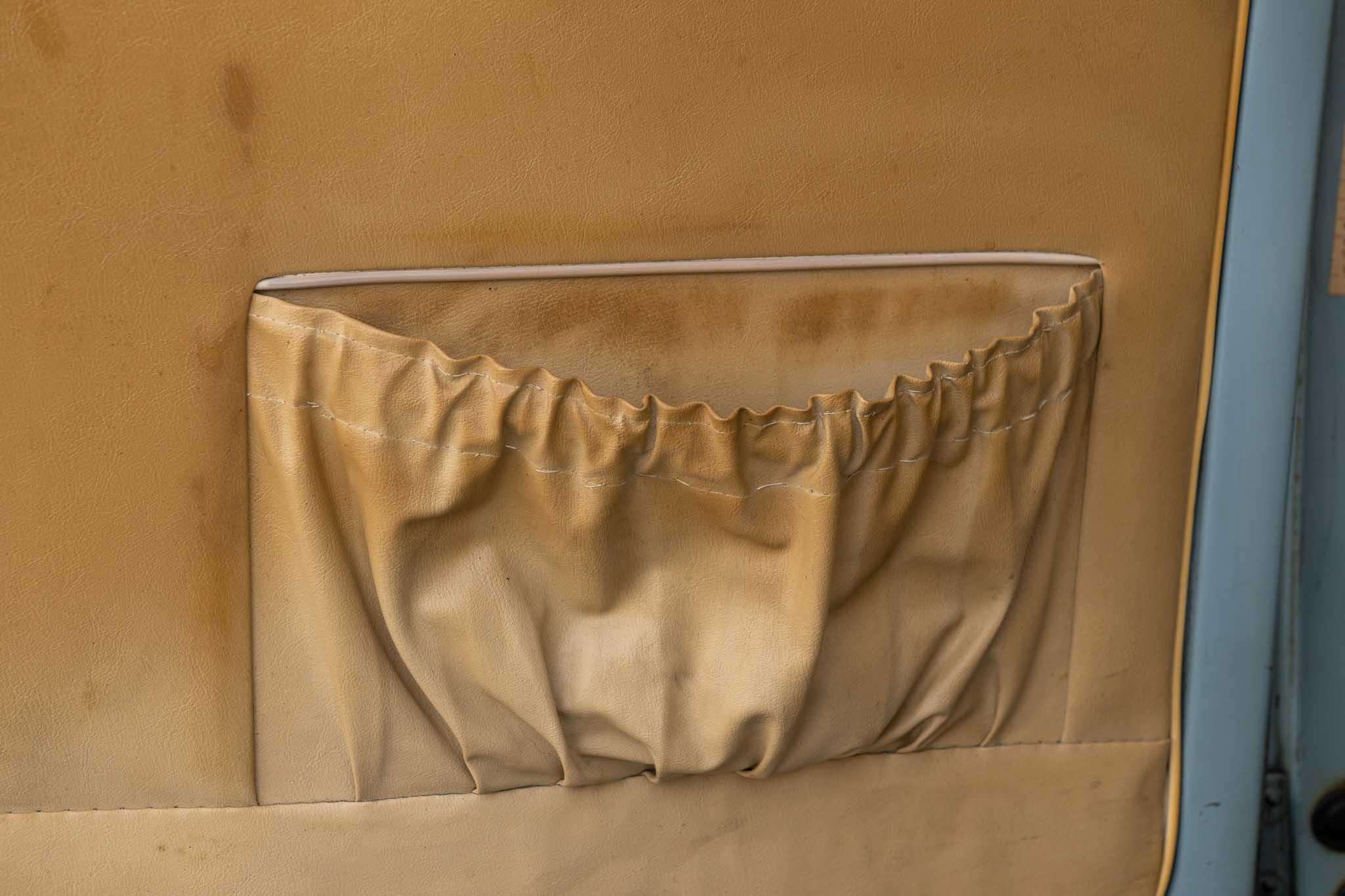

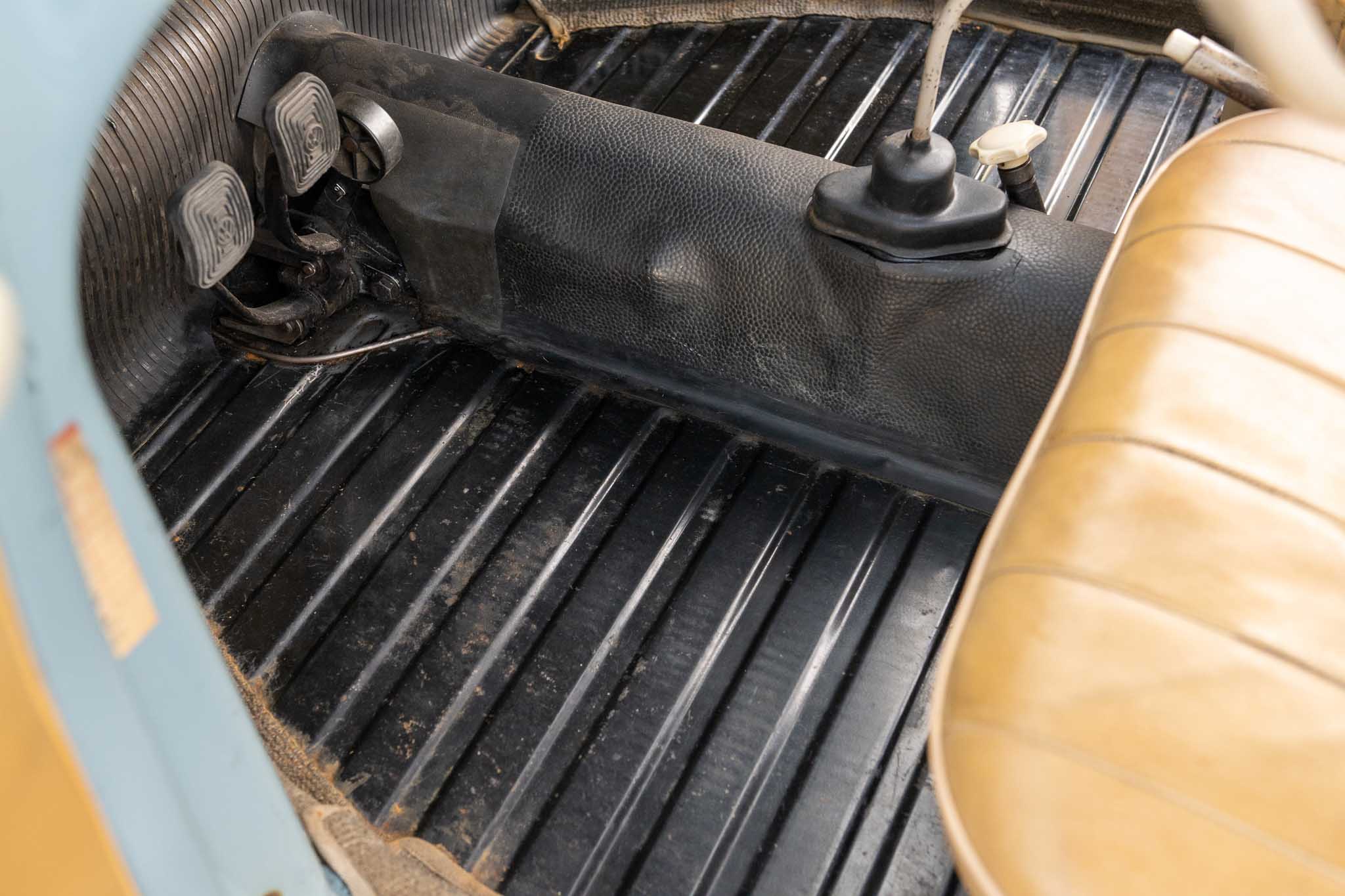

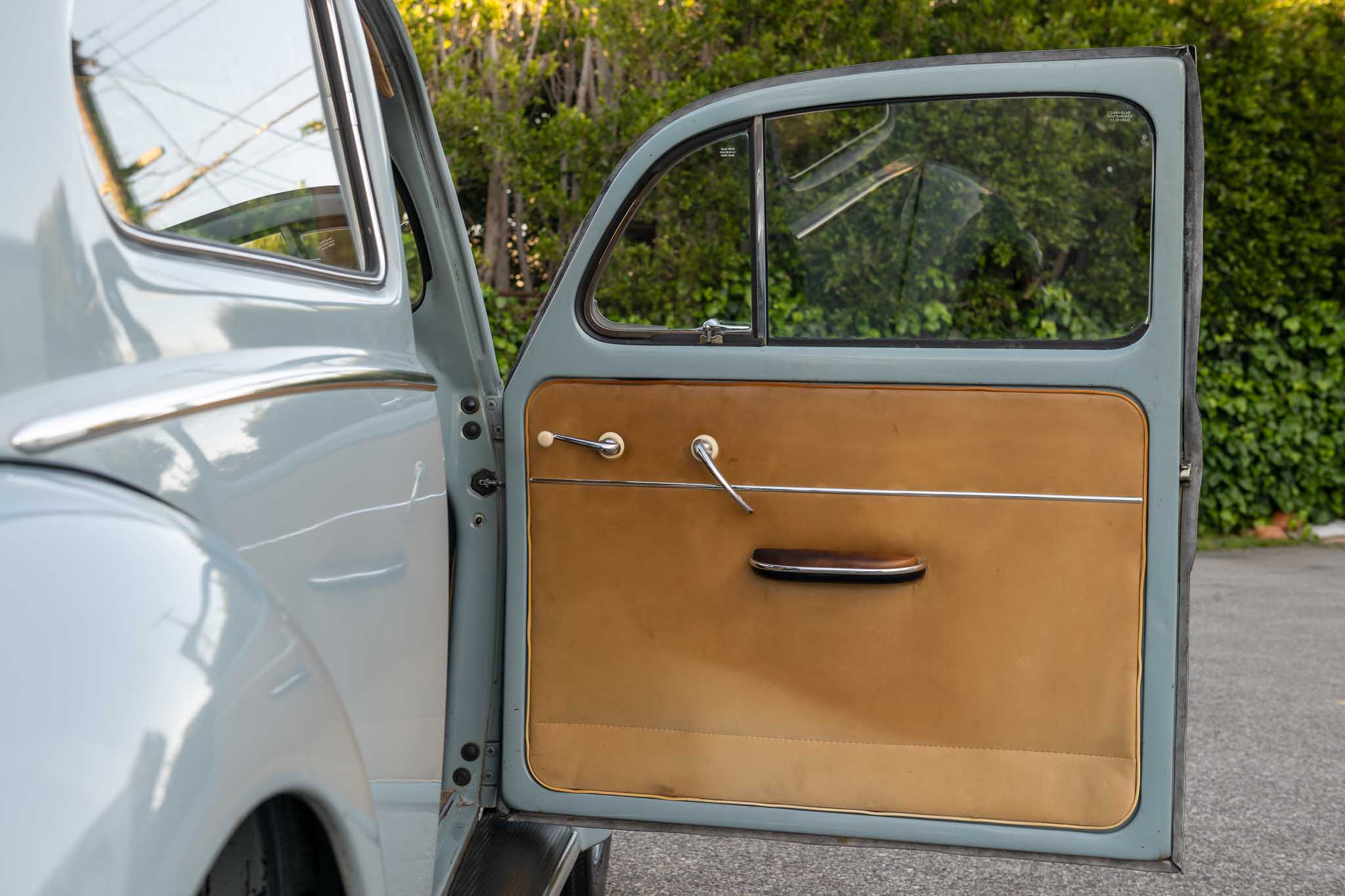

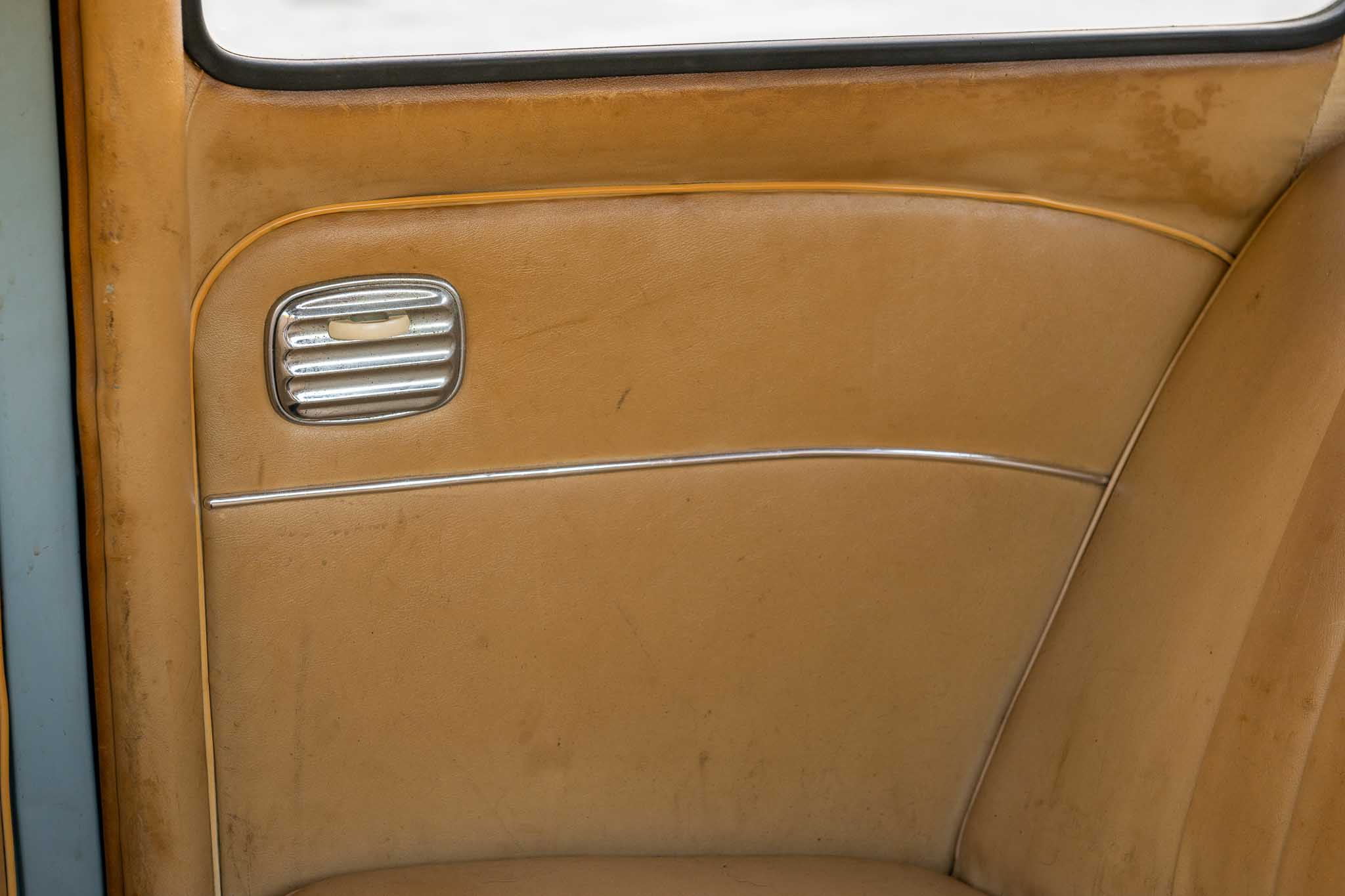

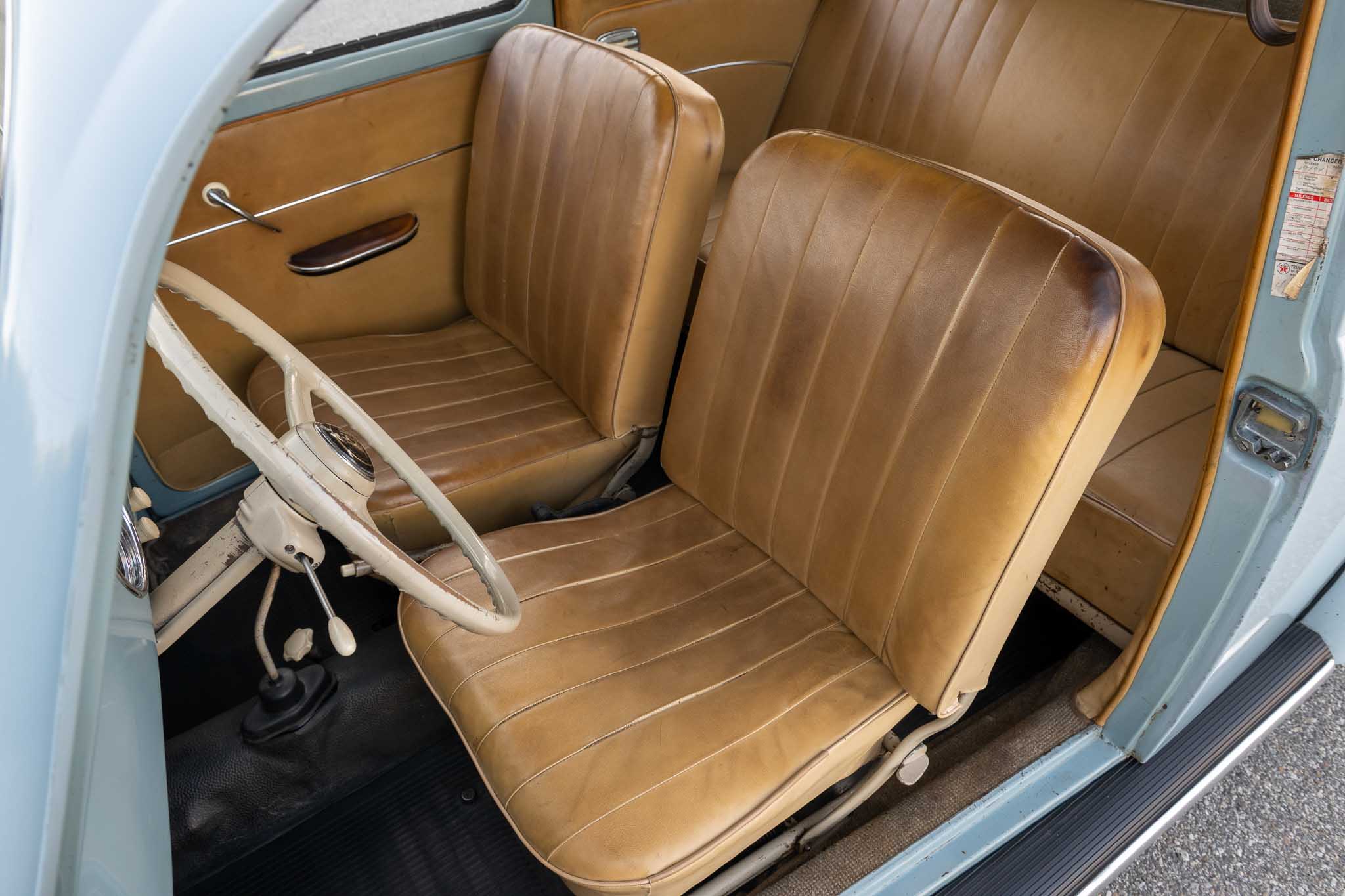

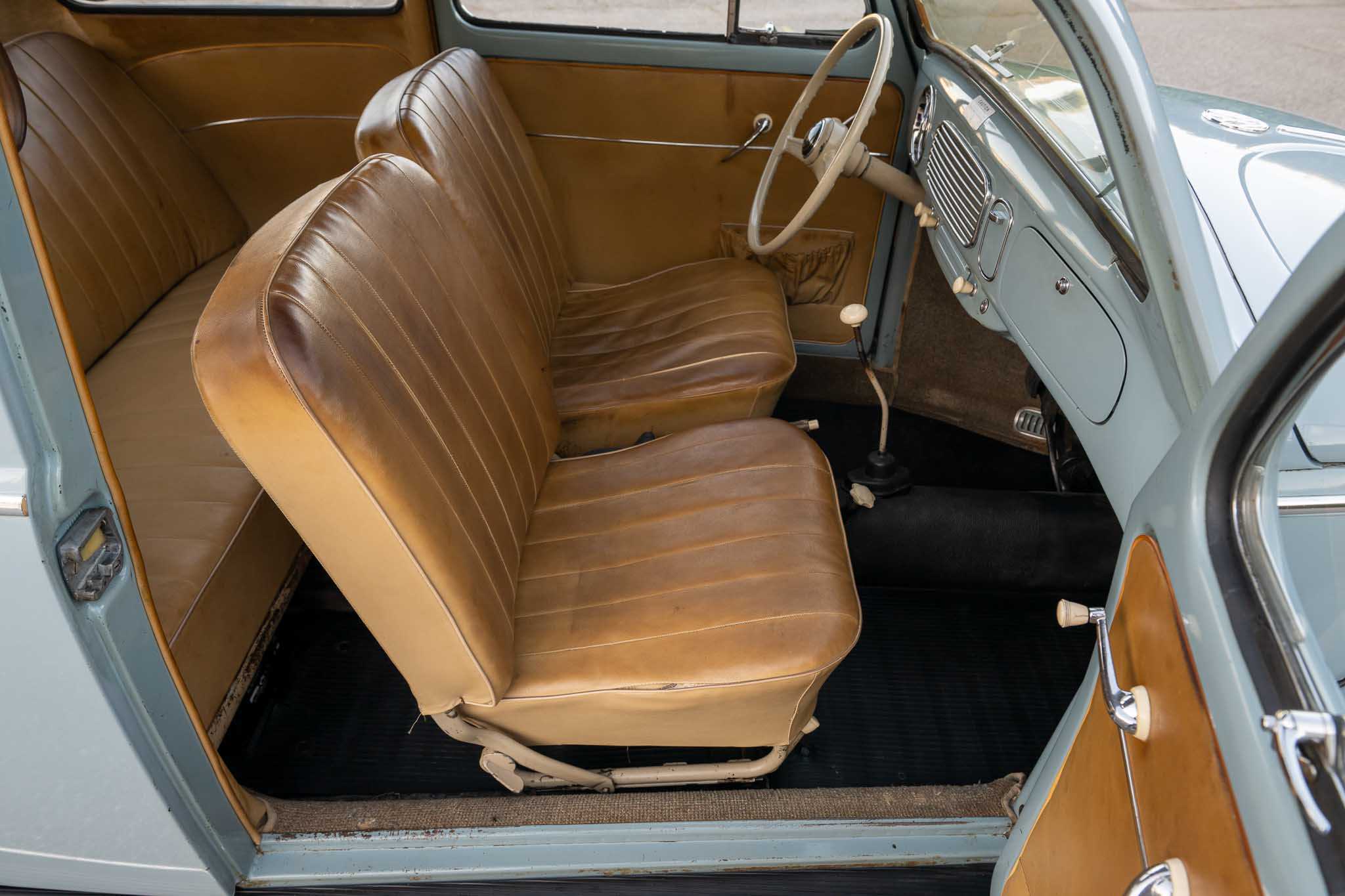

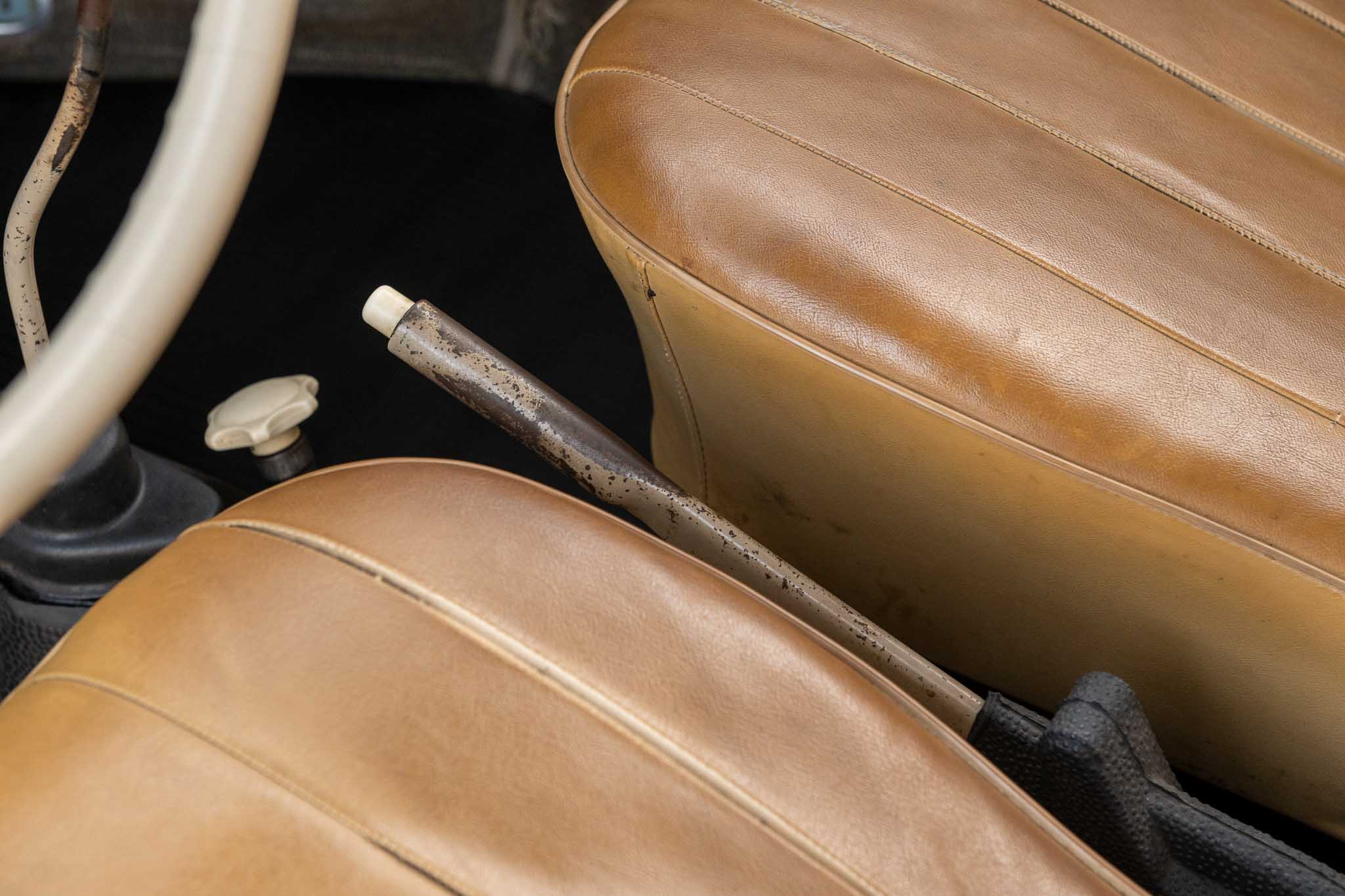

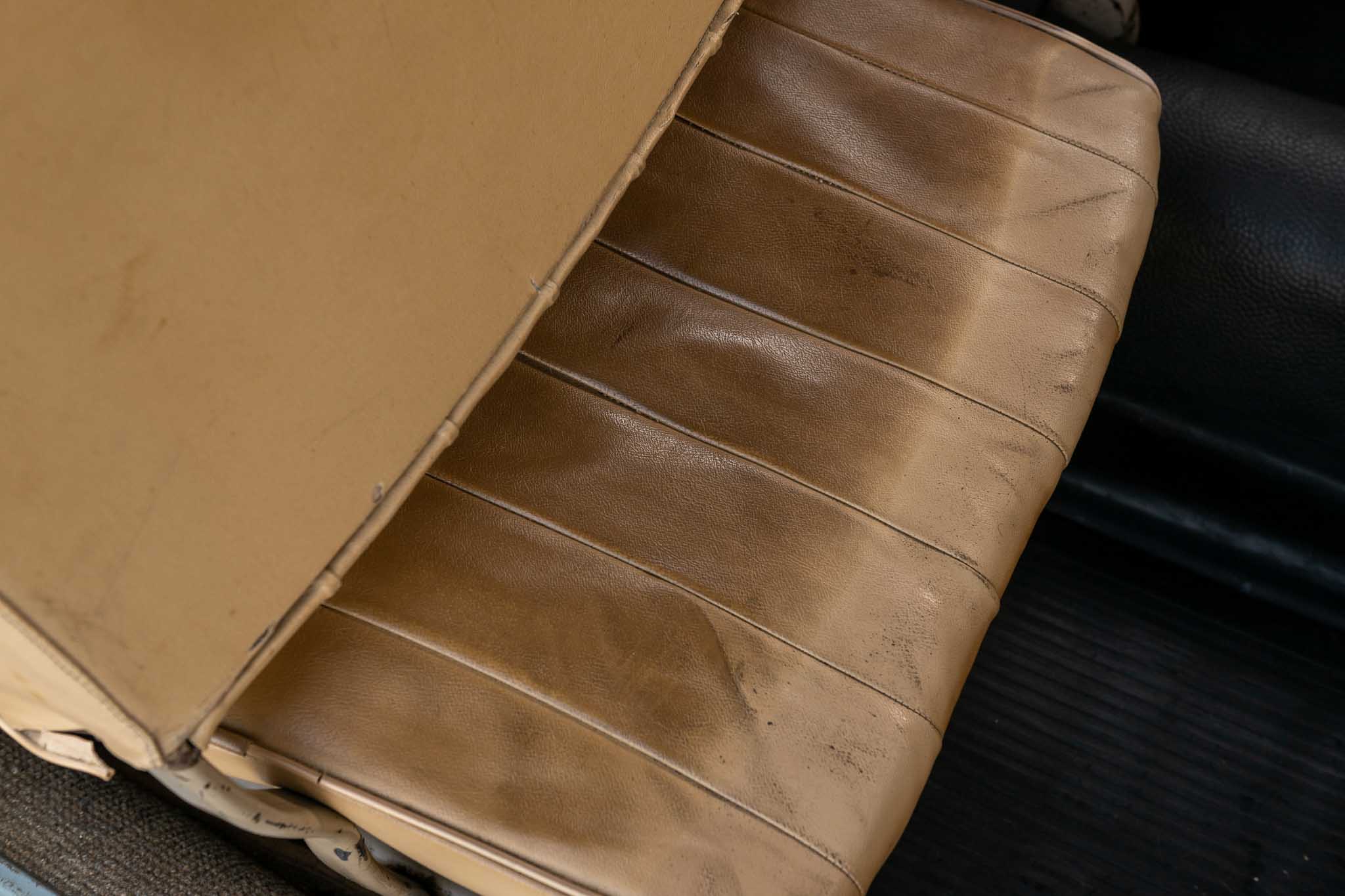

• It has an m-code for Light Beige Leatherette which is unique. These cars generally came with dark blue leatherette when exported to the USA
• It was imported through San Francisco before making its way to a dealer in Houston Texas

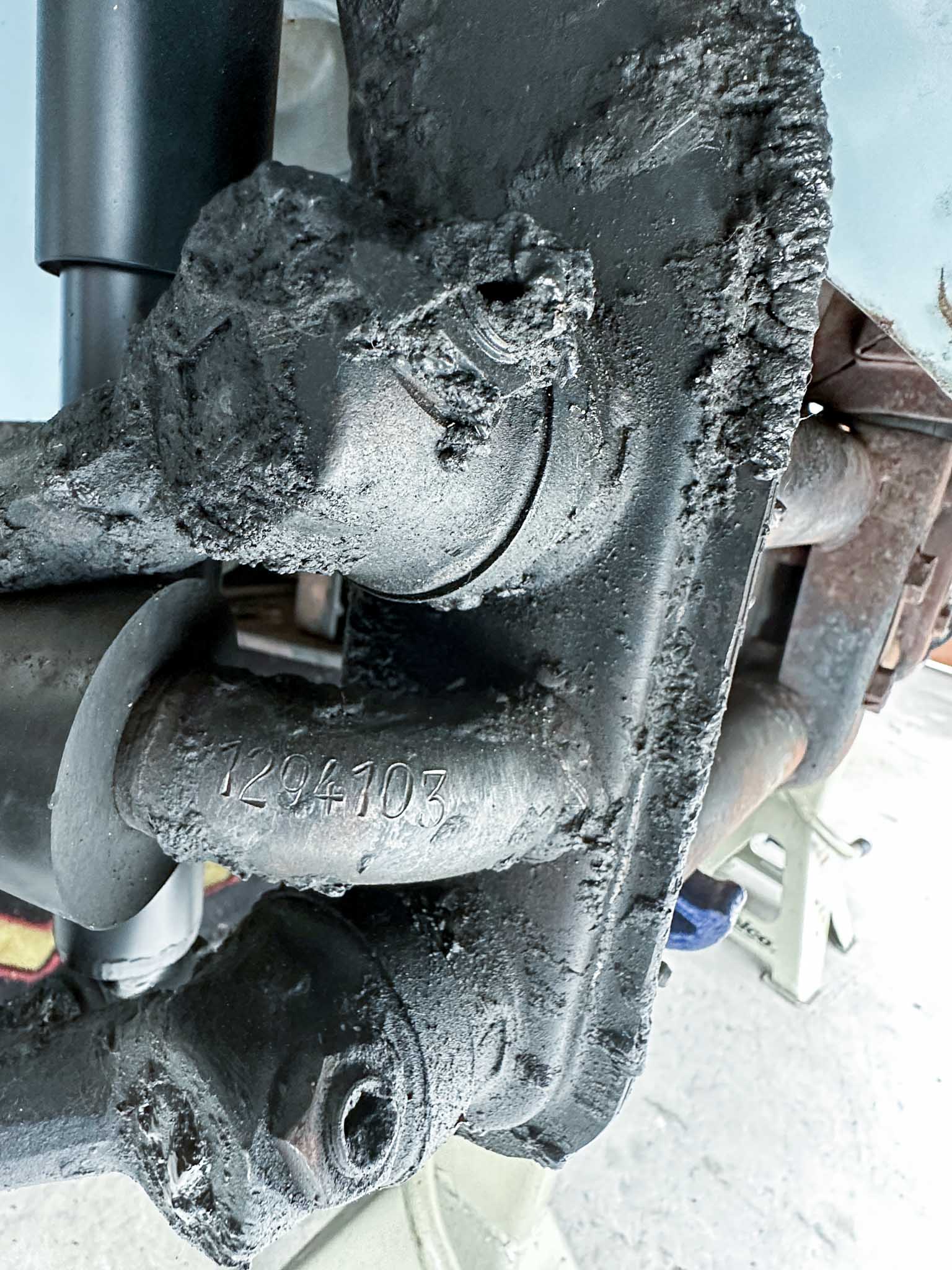

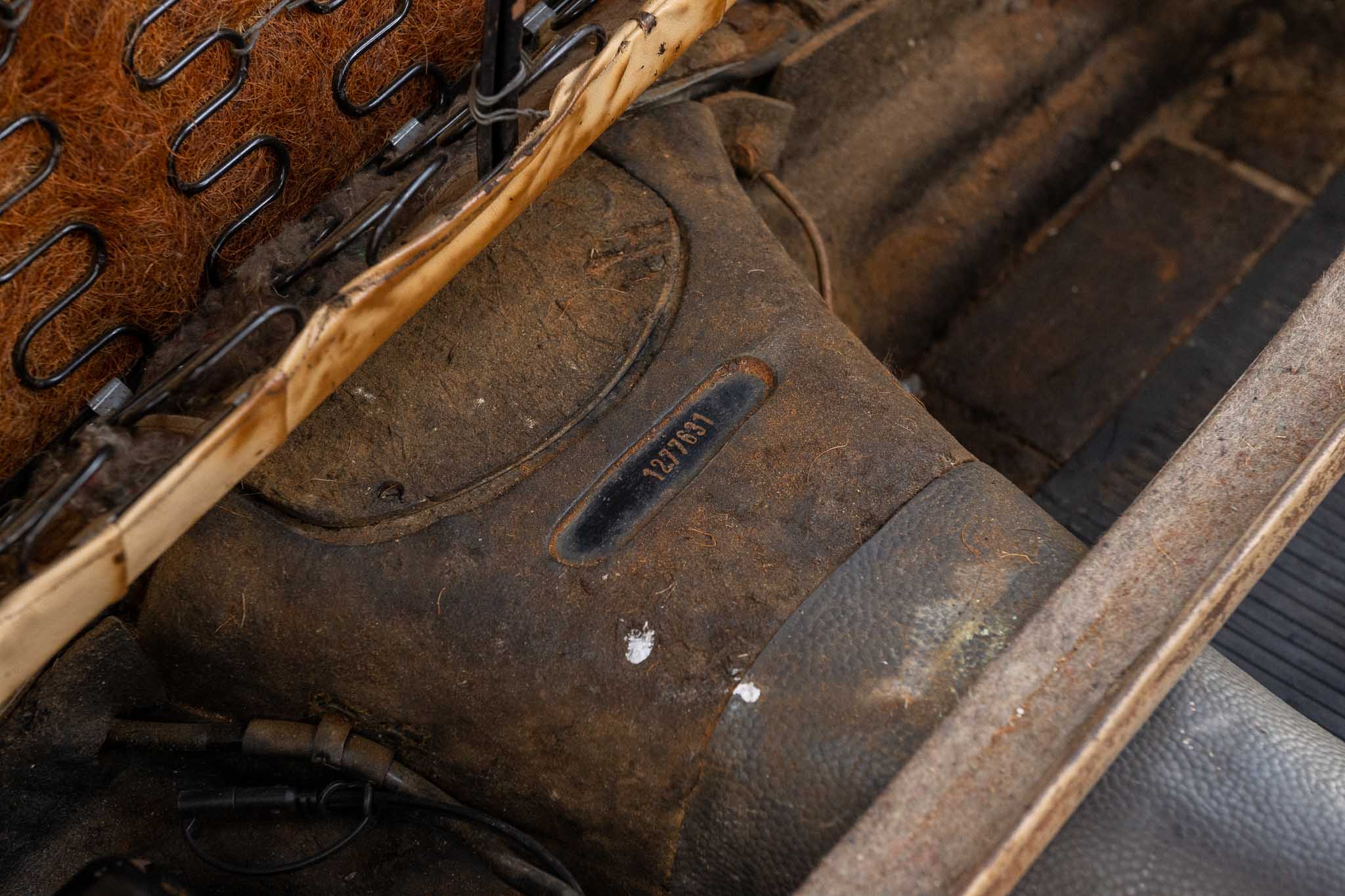

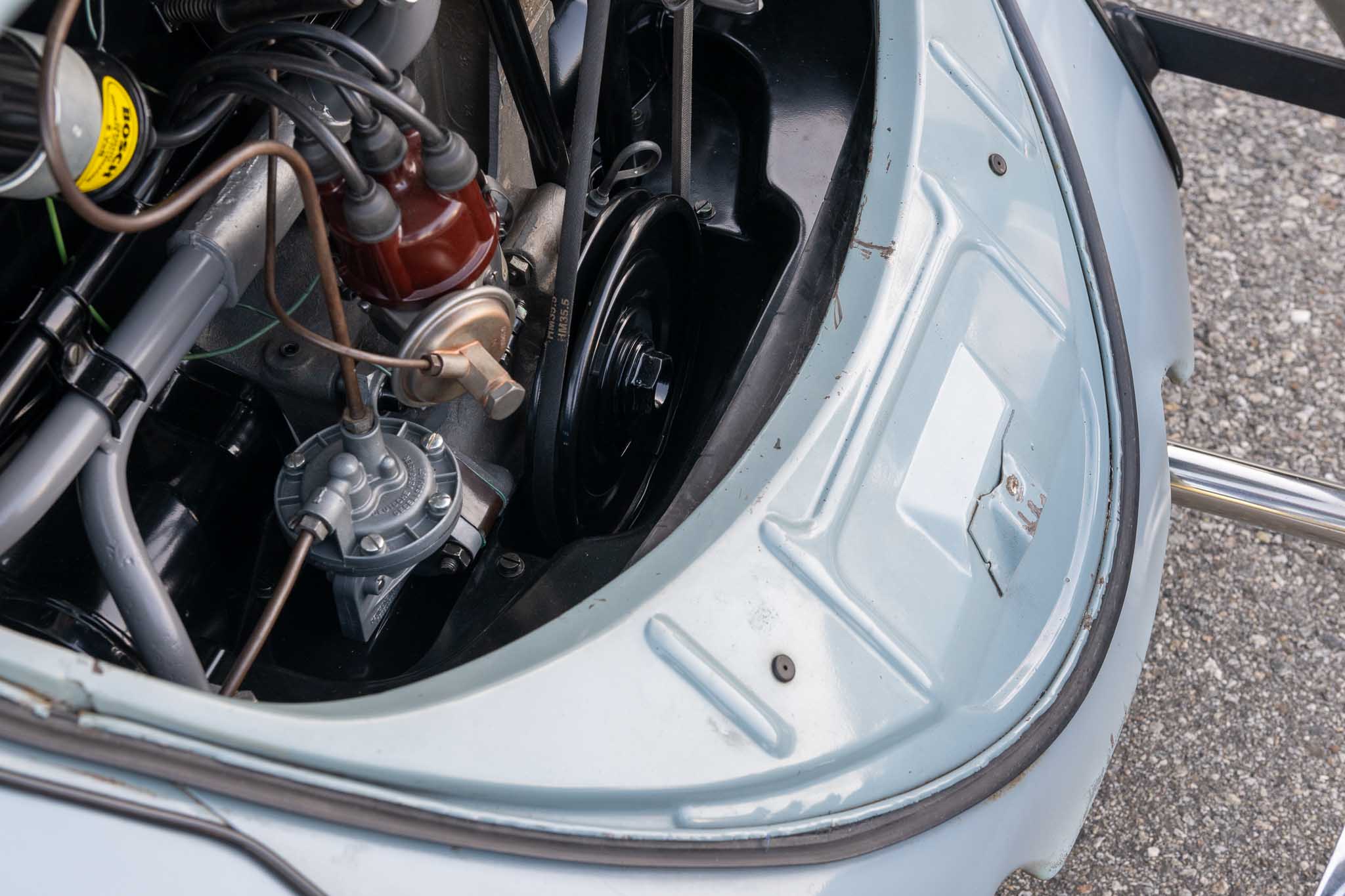

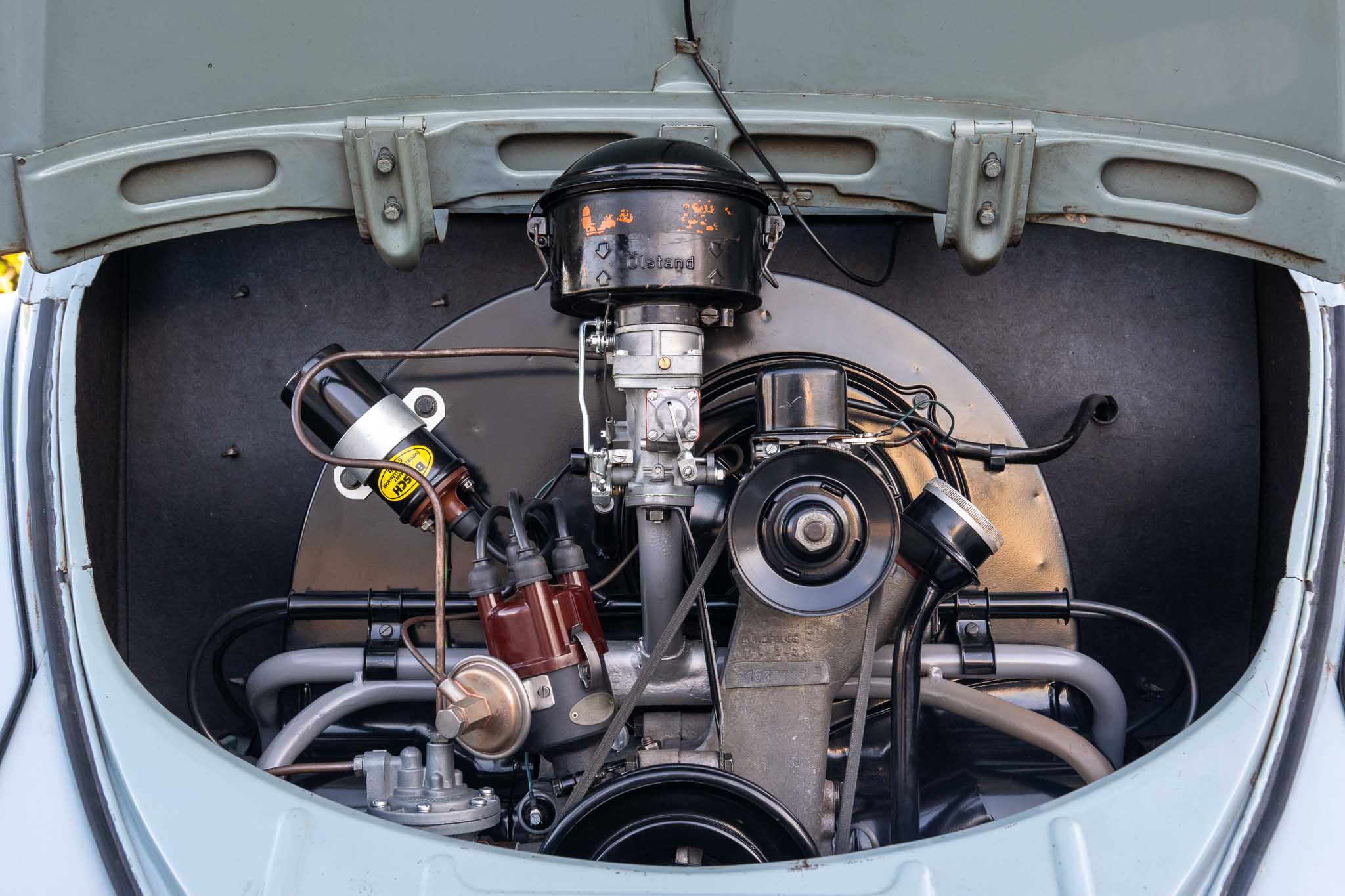

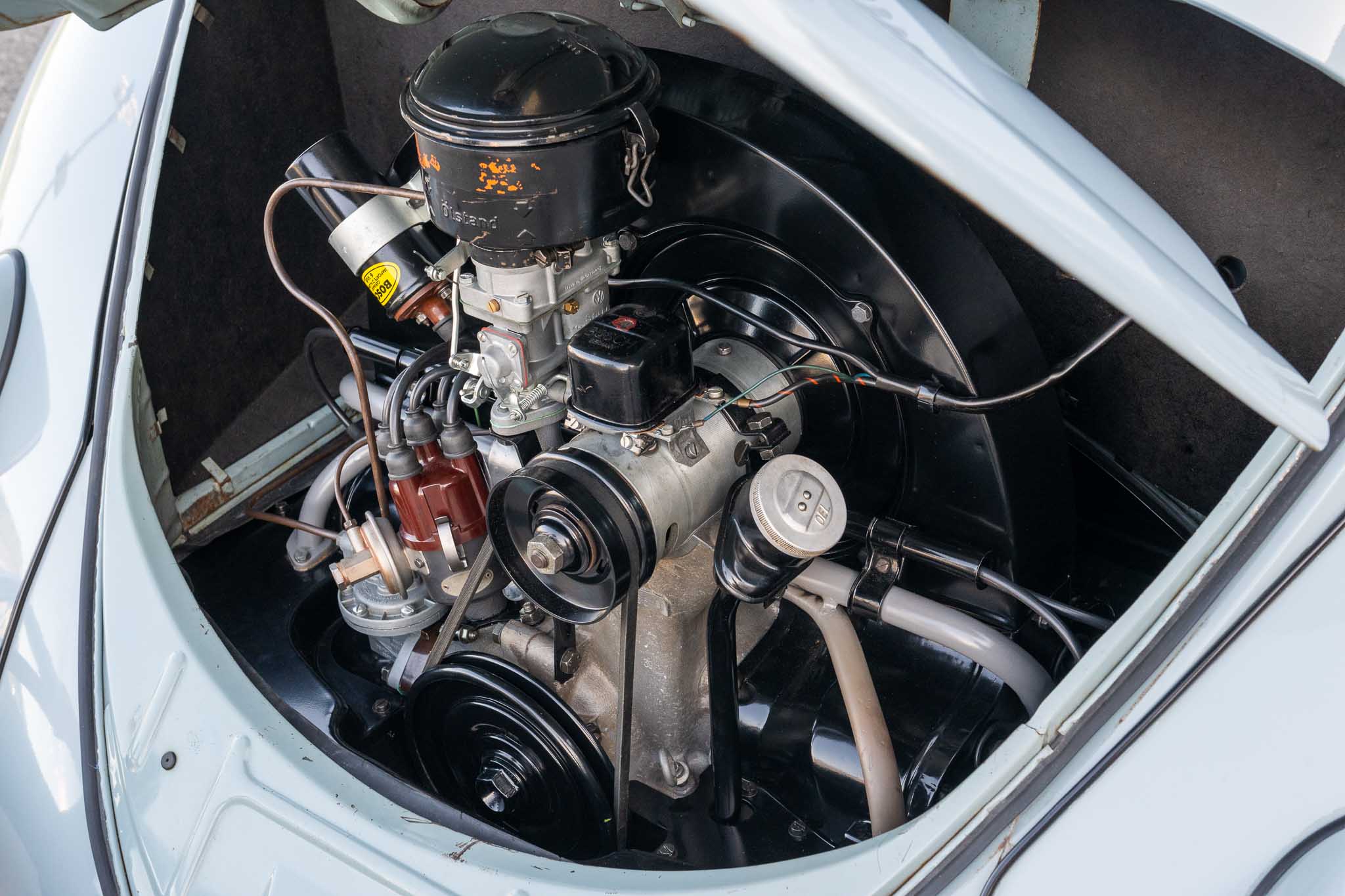

• The engine has been verified as original to the car as you can see

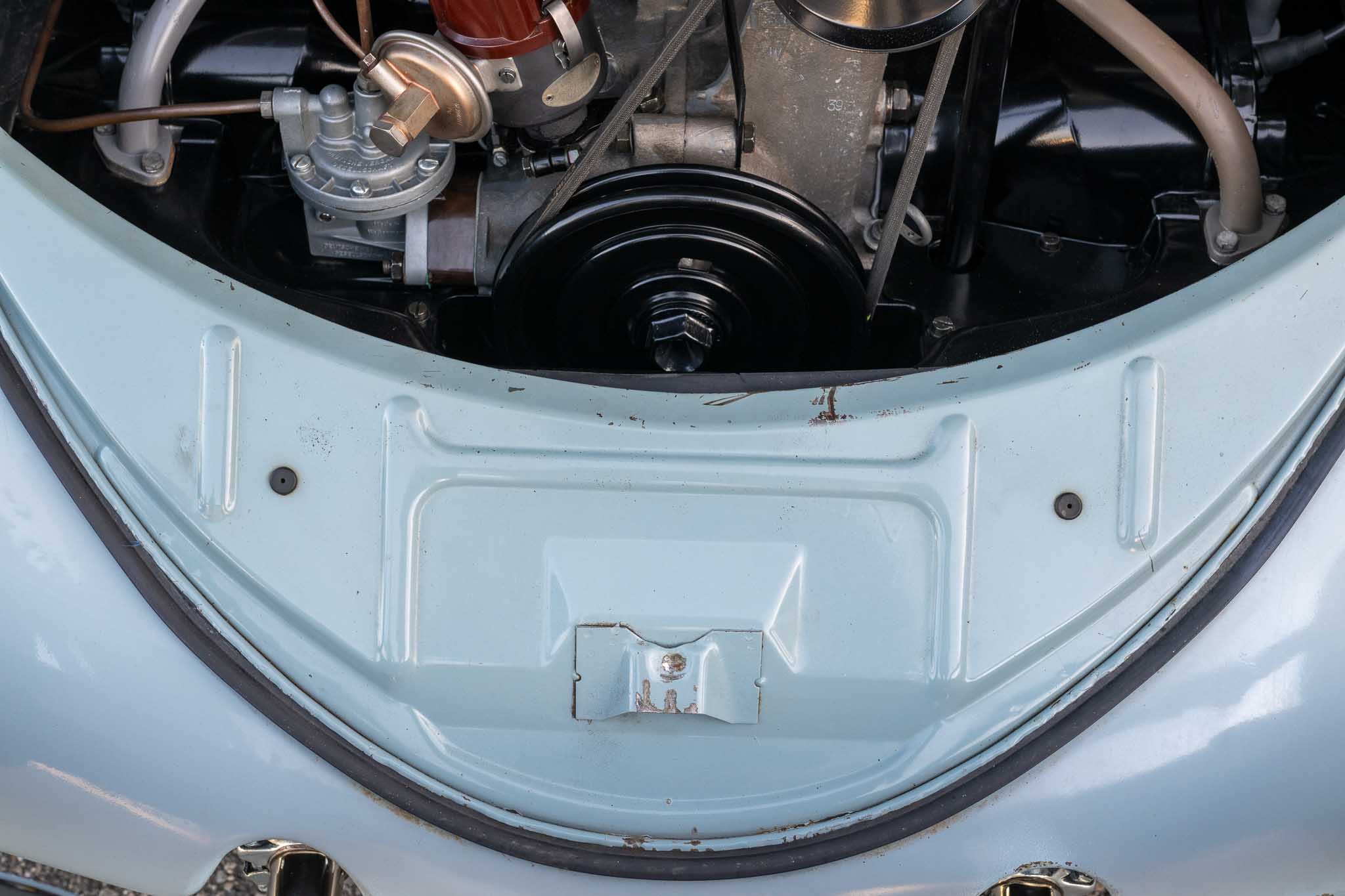

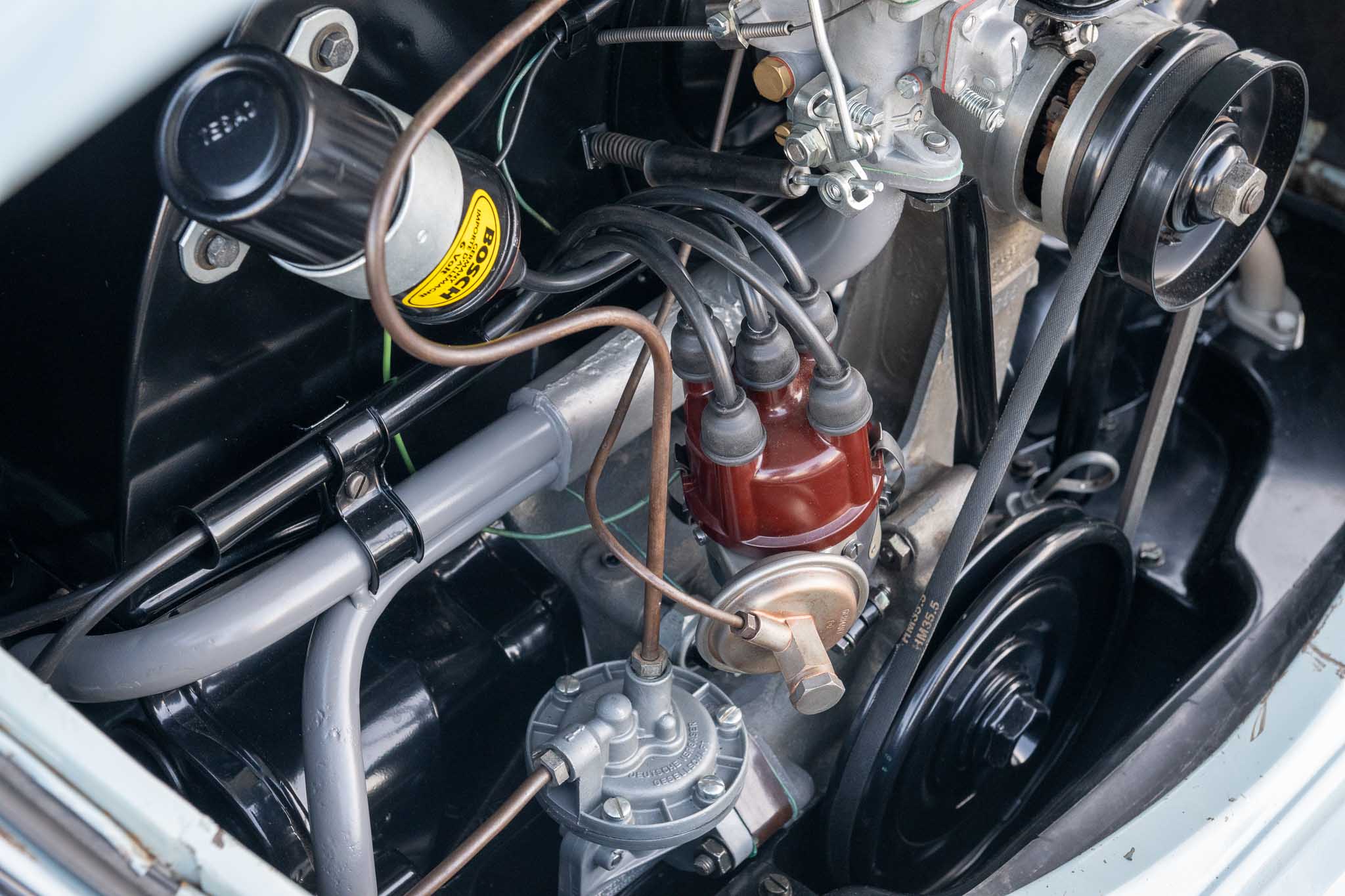

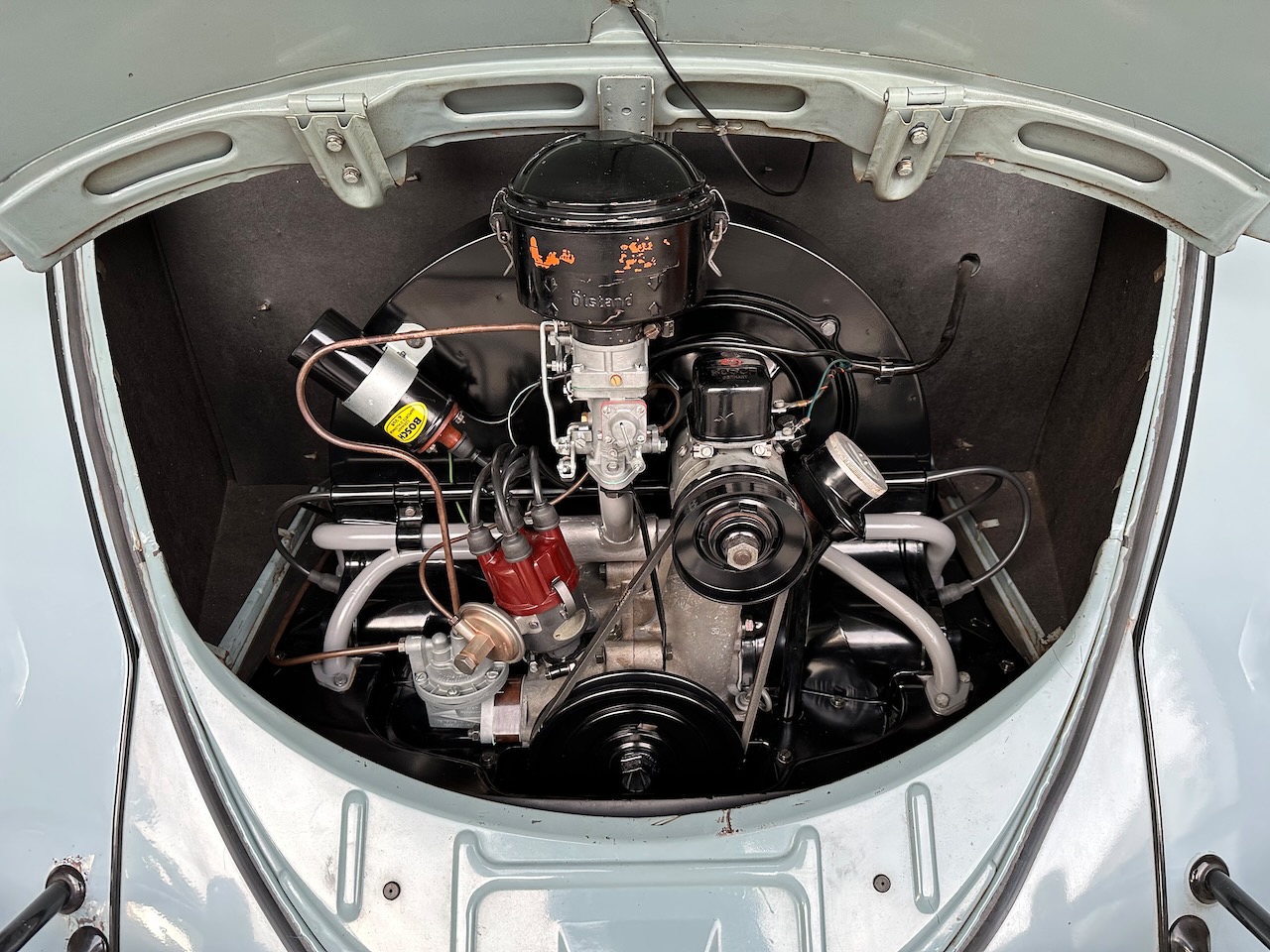

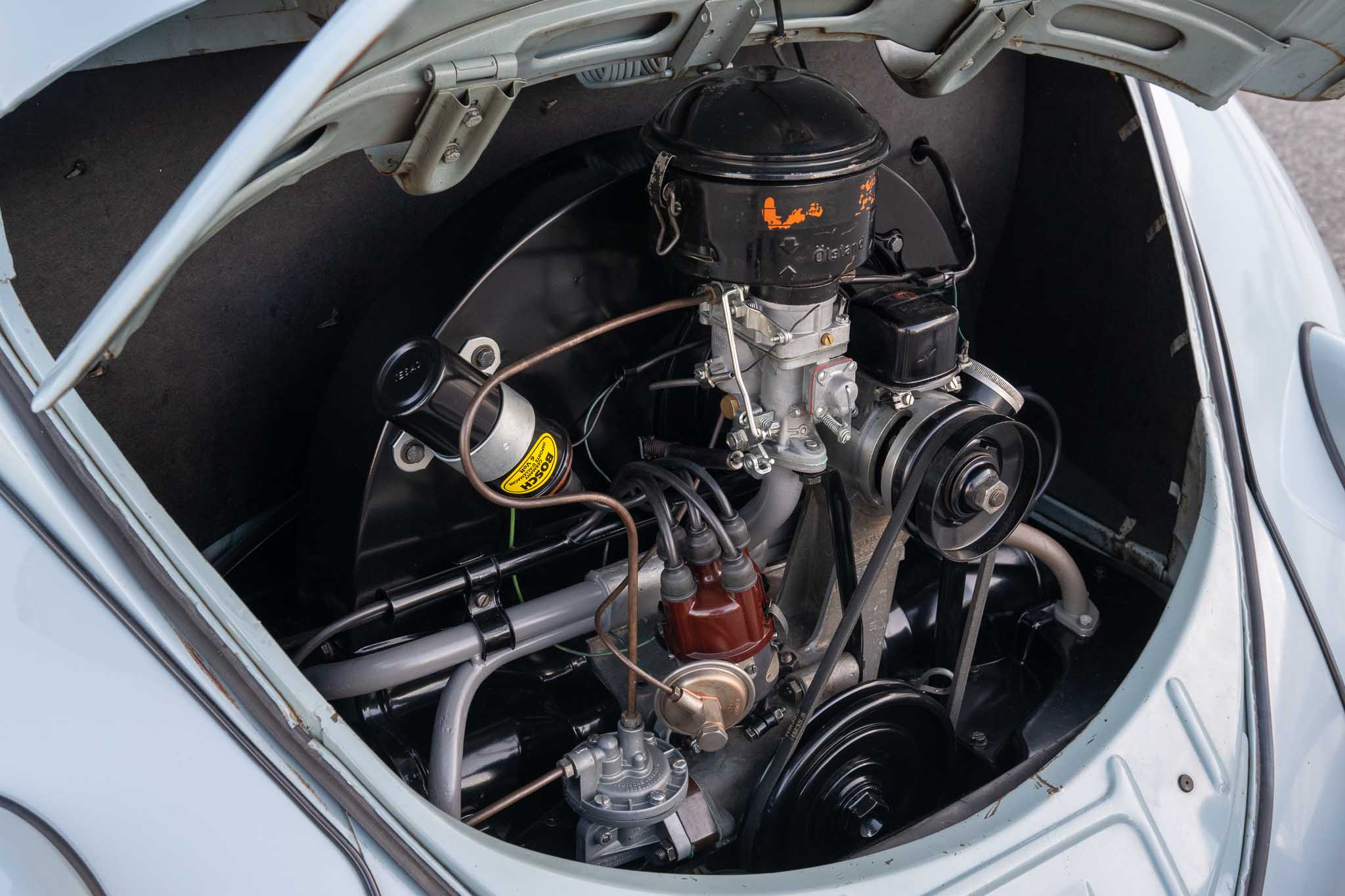

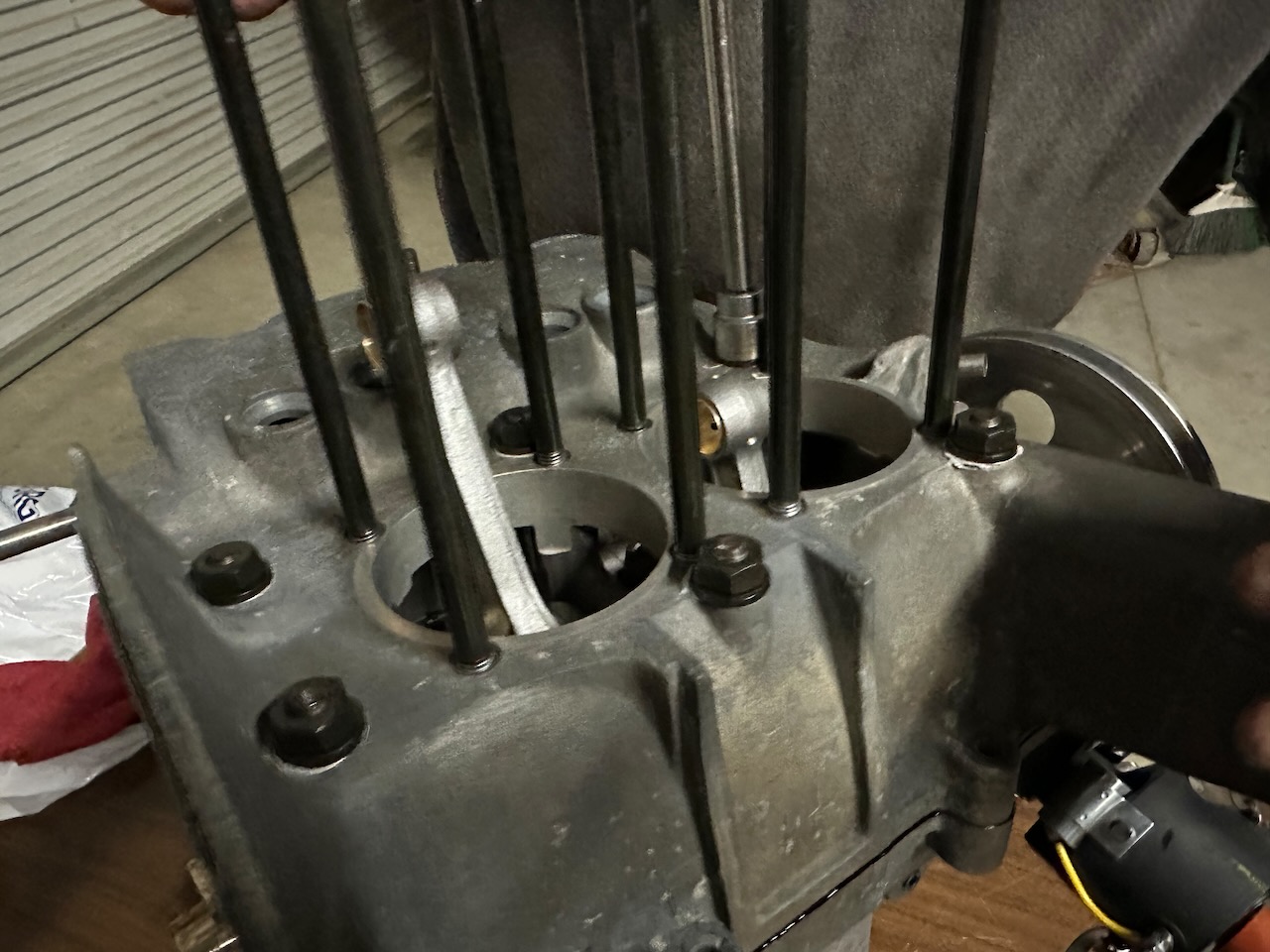

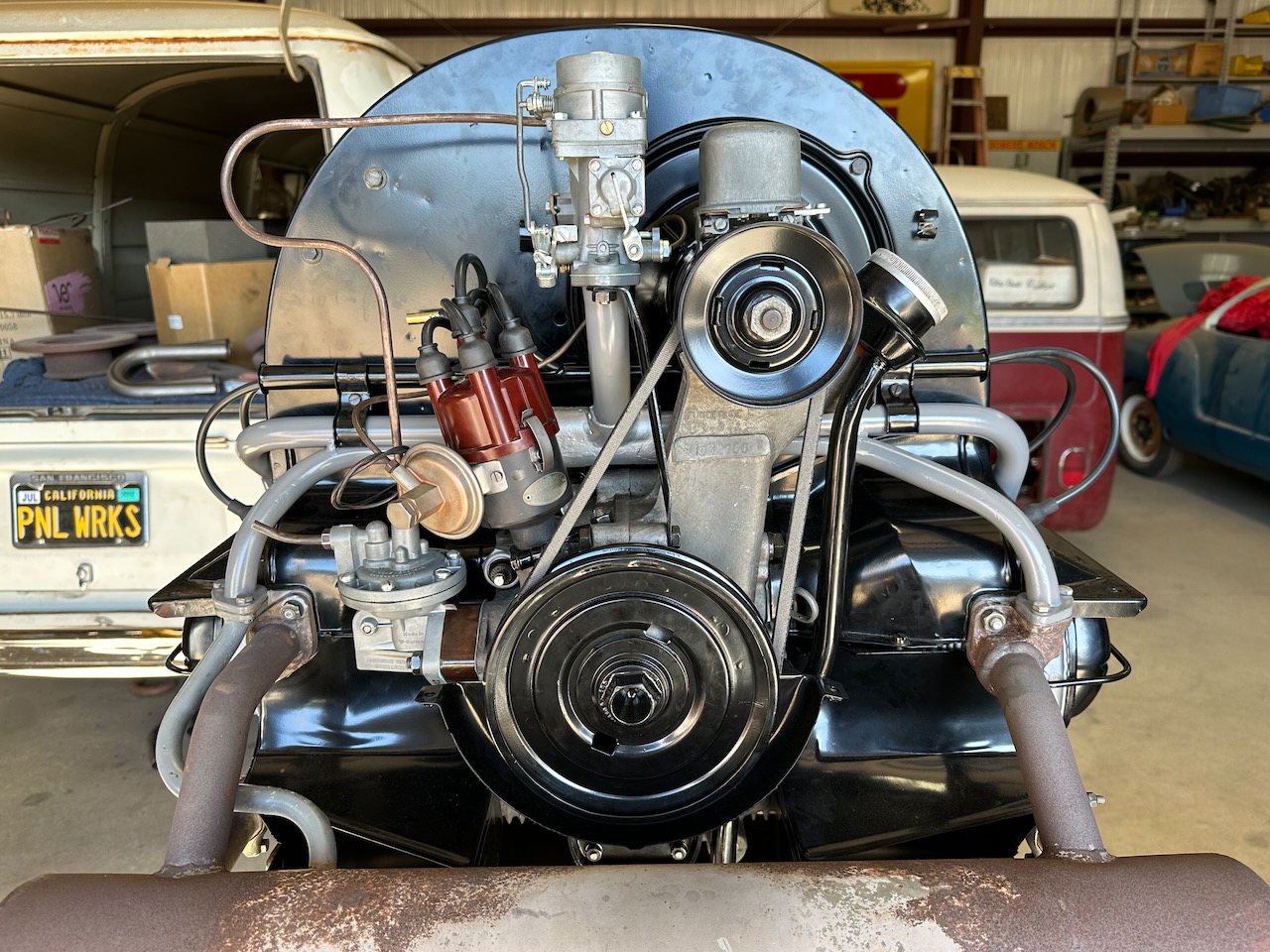

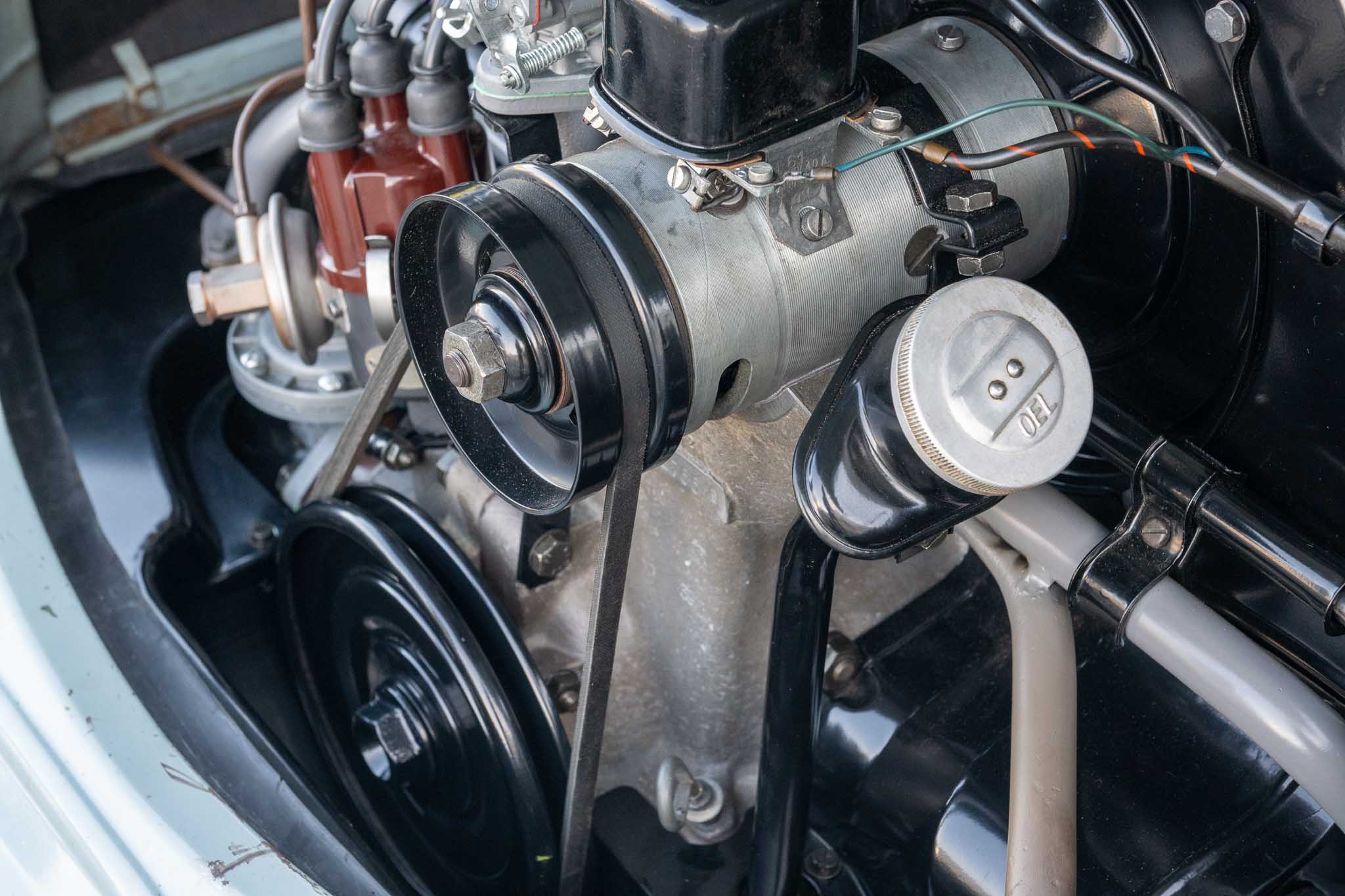

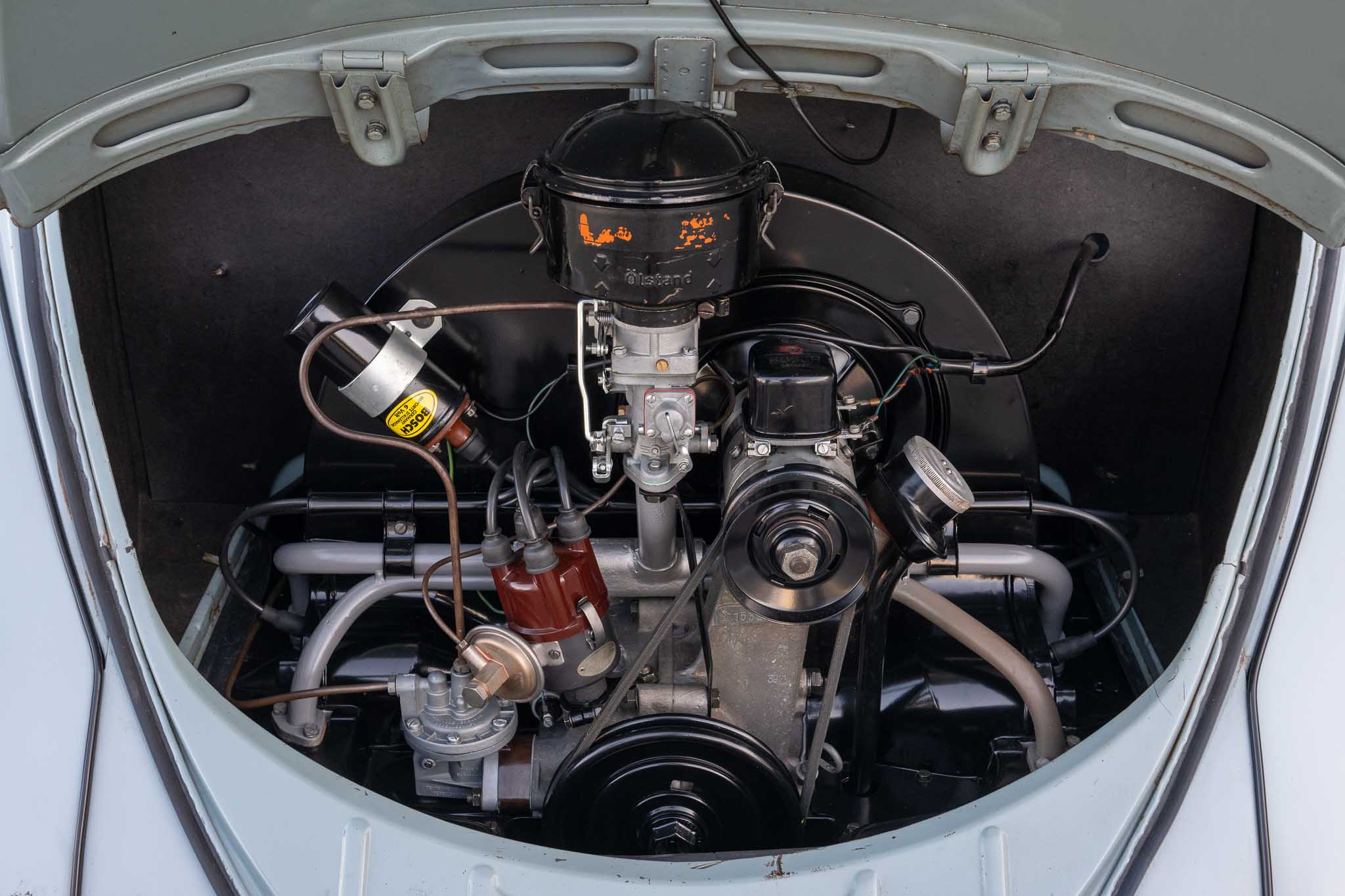

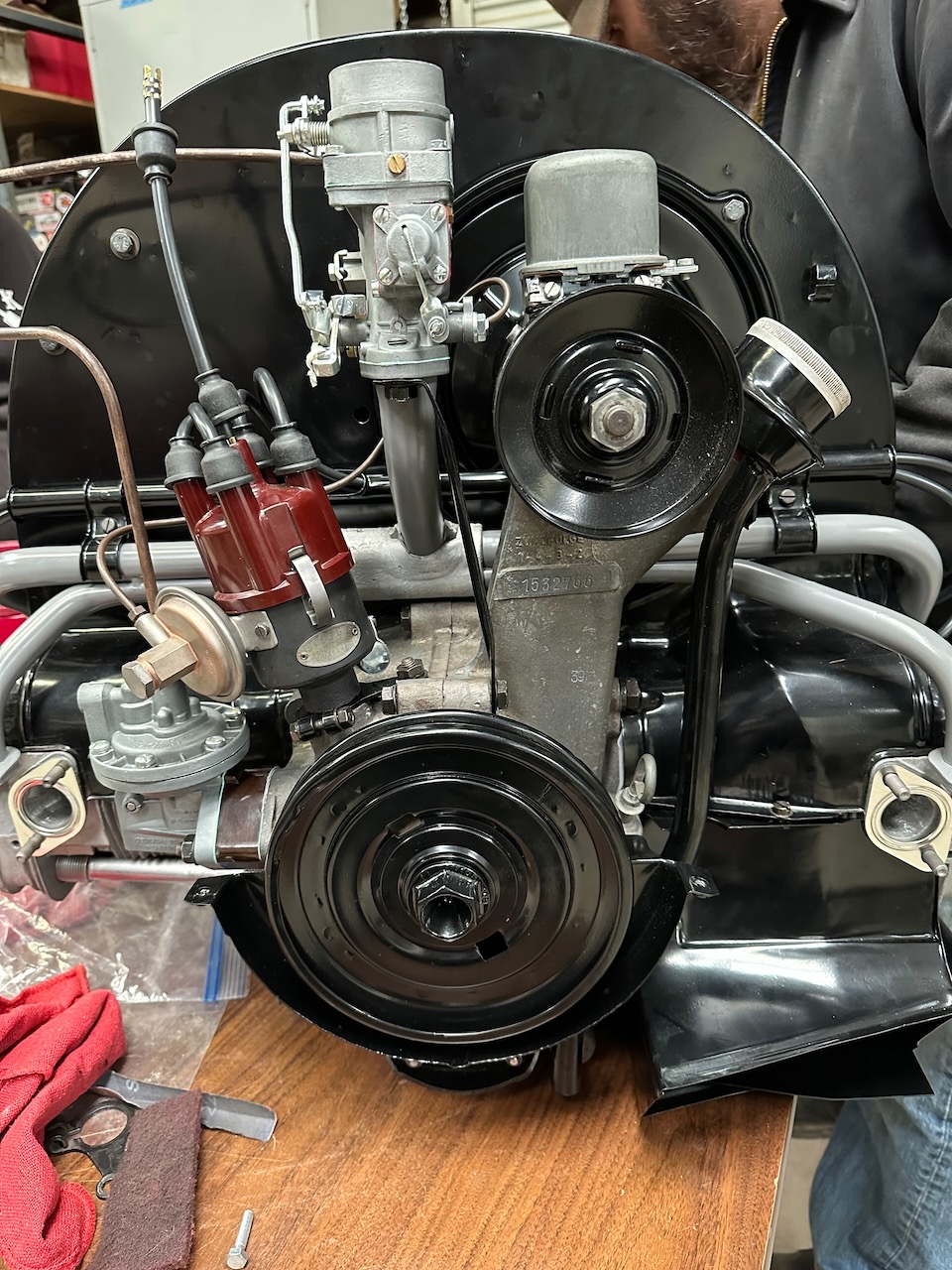

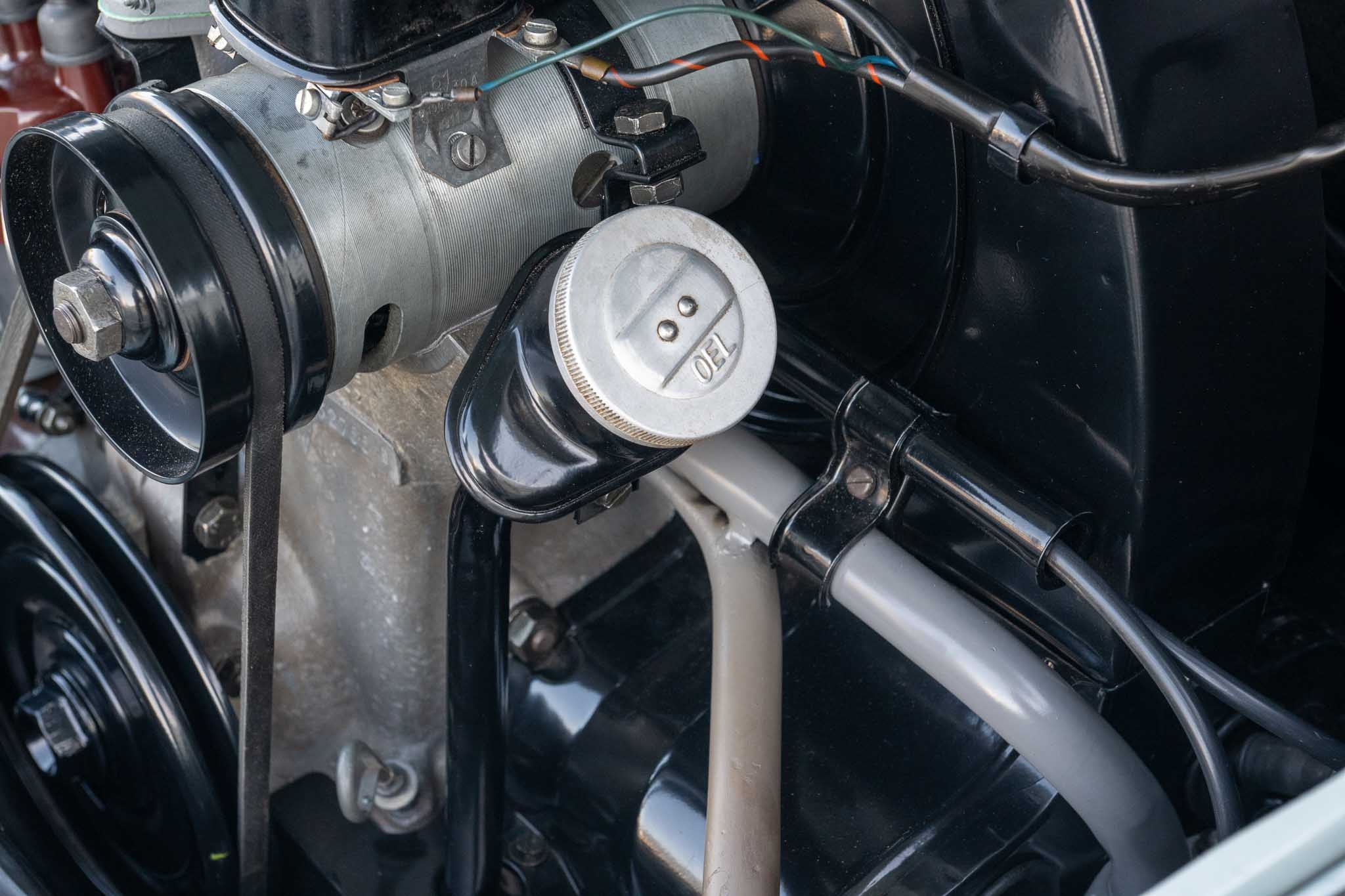

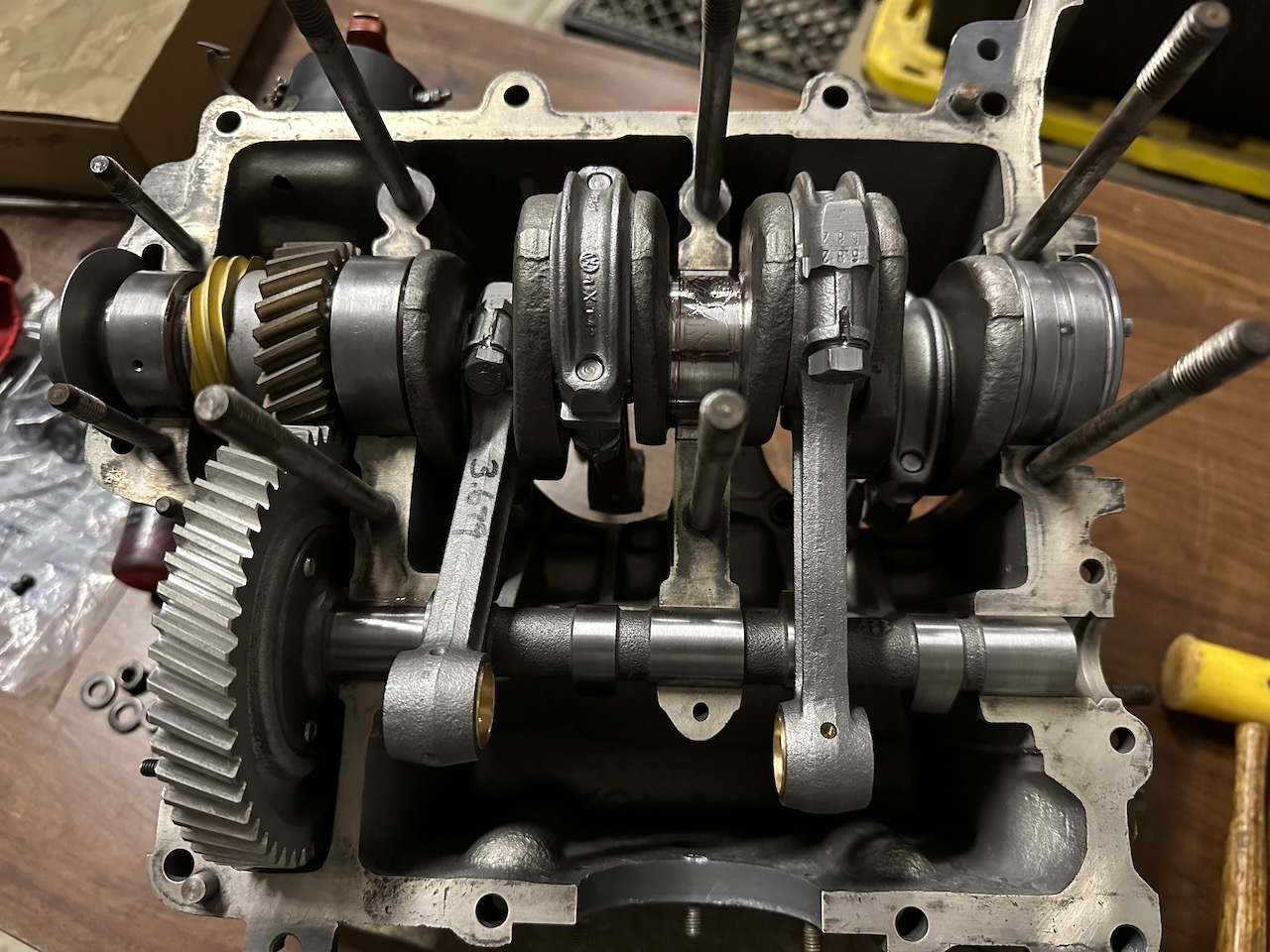

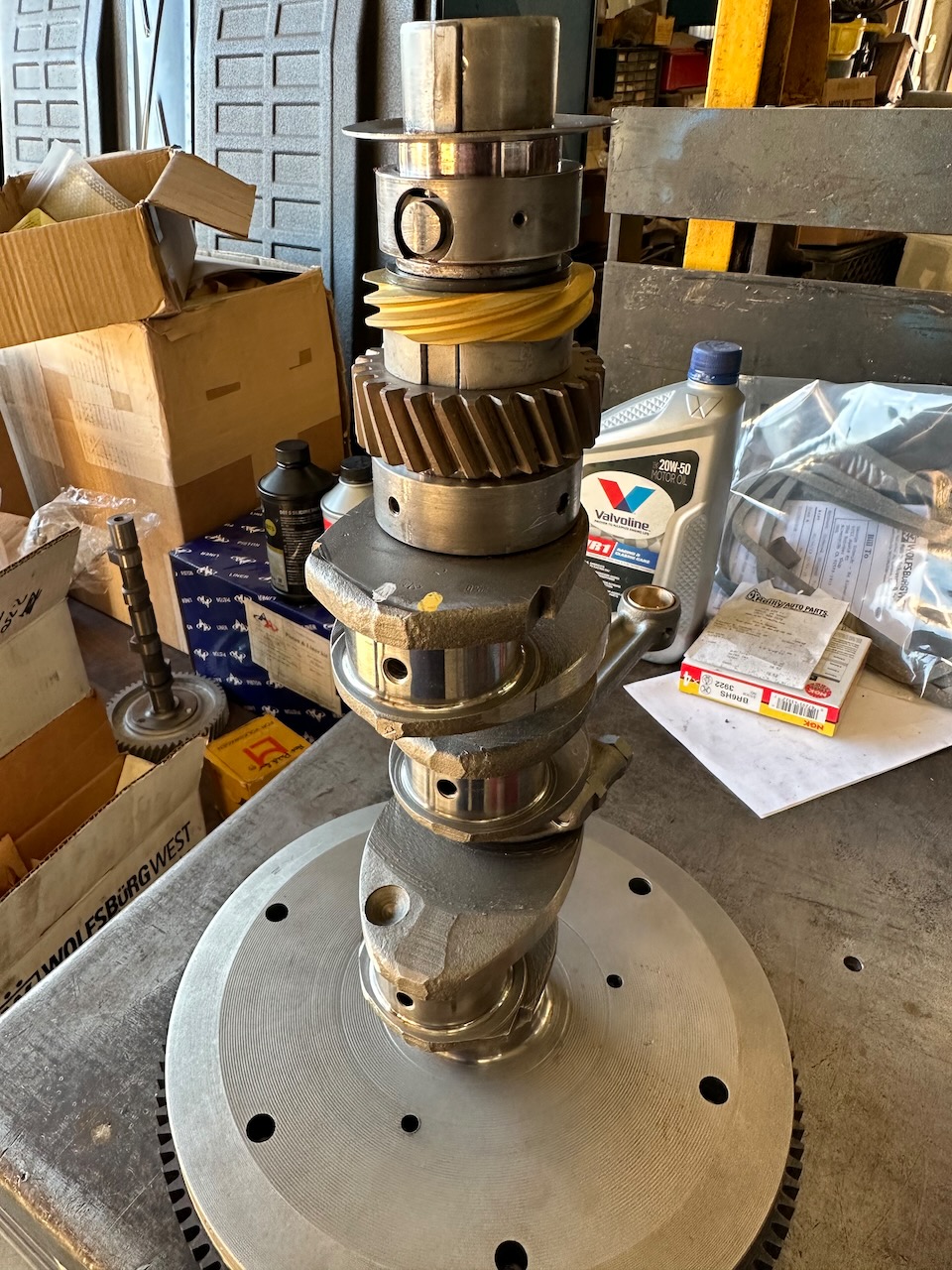

Engine Build Details

The goal for the engine rebuild was to give it a little more power to keep up with modern traffic while still retaining the stock look. To that end, George opted for AA 80mm pistons and a mild cam manufactured by Wolfsburg West.

• Case machined by Brothers
• Case savers installed
• Oil galley plugs were removed and tapped
• Machined for 80mm pistons
• The case was in such good condition that a align bore and thrust cut were not required
• 80mm AA pistons
• Wolfsburg West mild cam
• Crank machined by DPR (10/10)

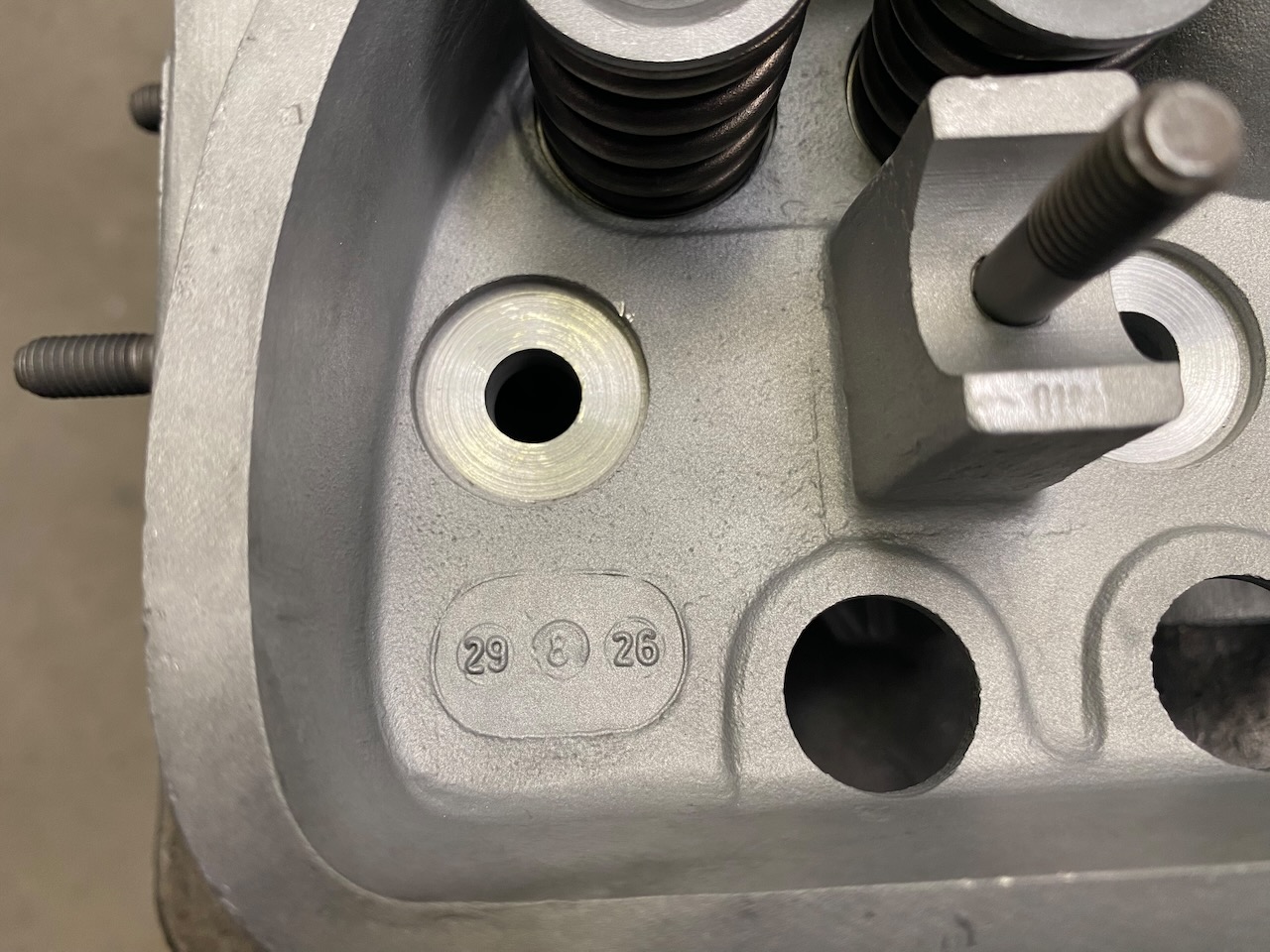

• Heads rebuilt by Rimco
• Flywheel re-ringed and surfaced by DPR
• Pistons, crank, flywheel & clutch plate, pulley, and fan balanced

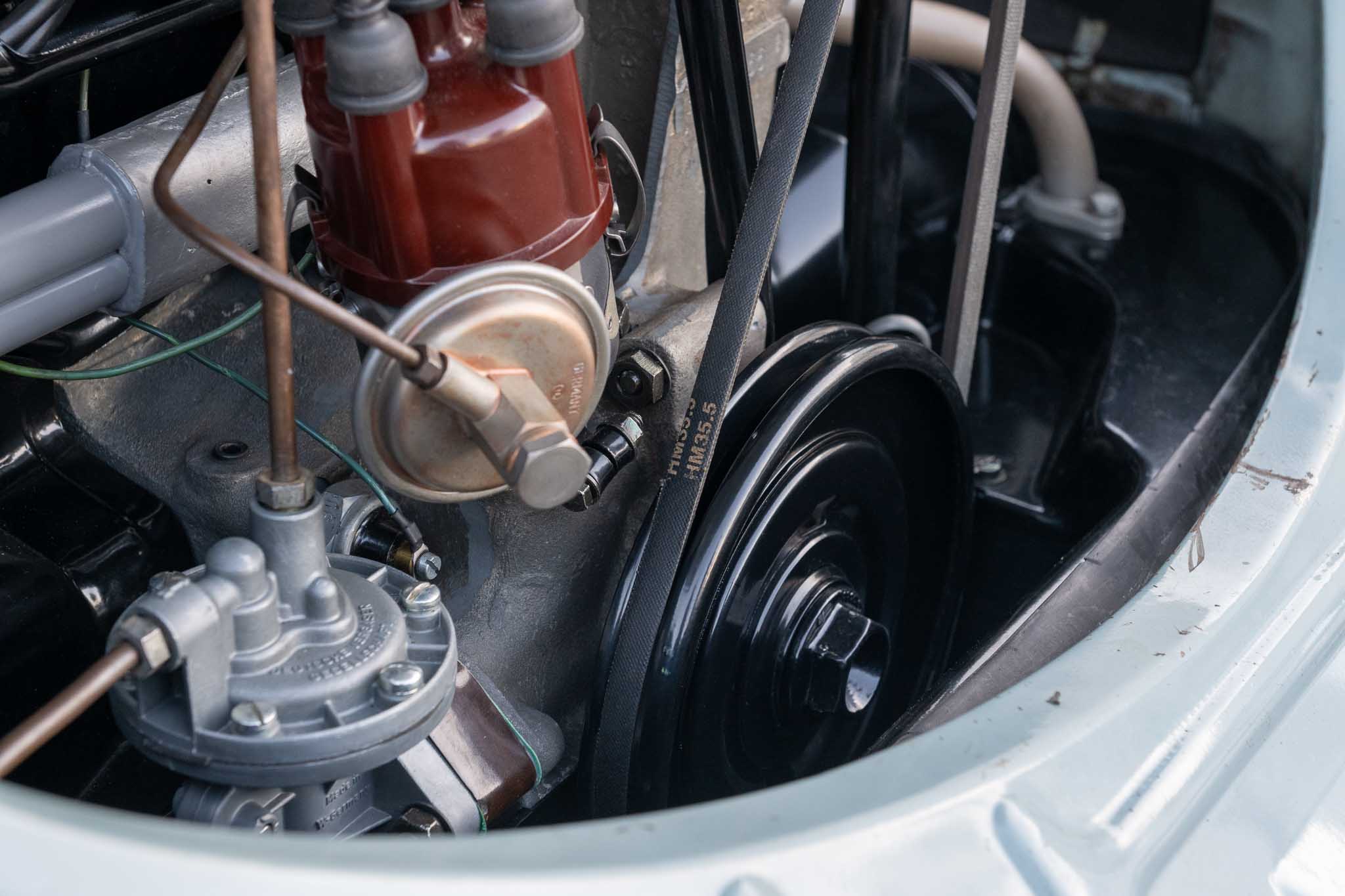

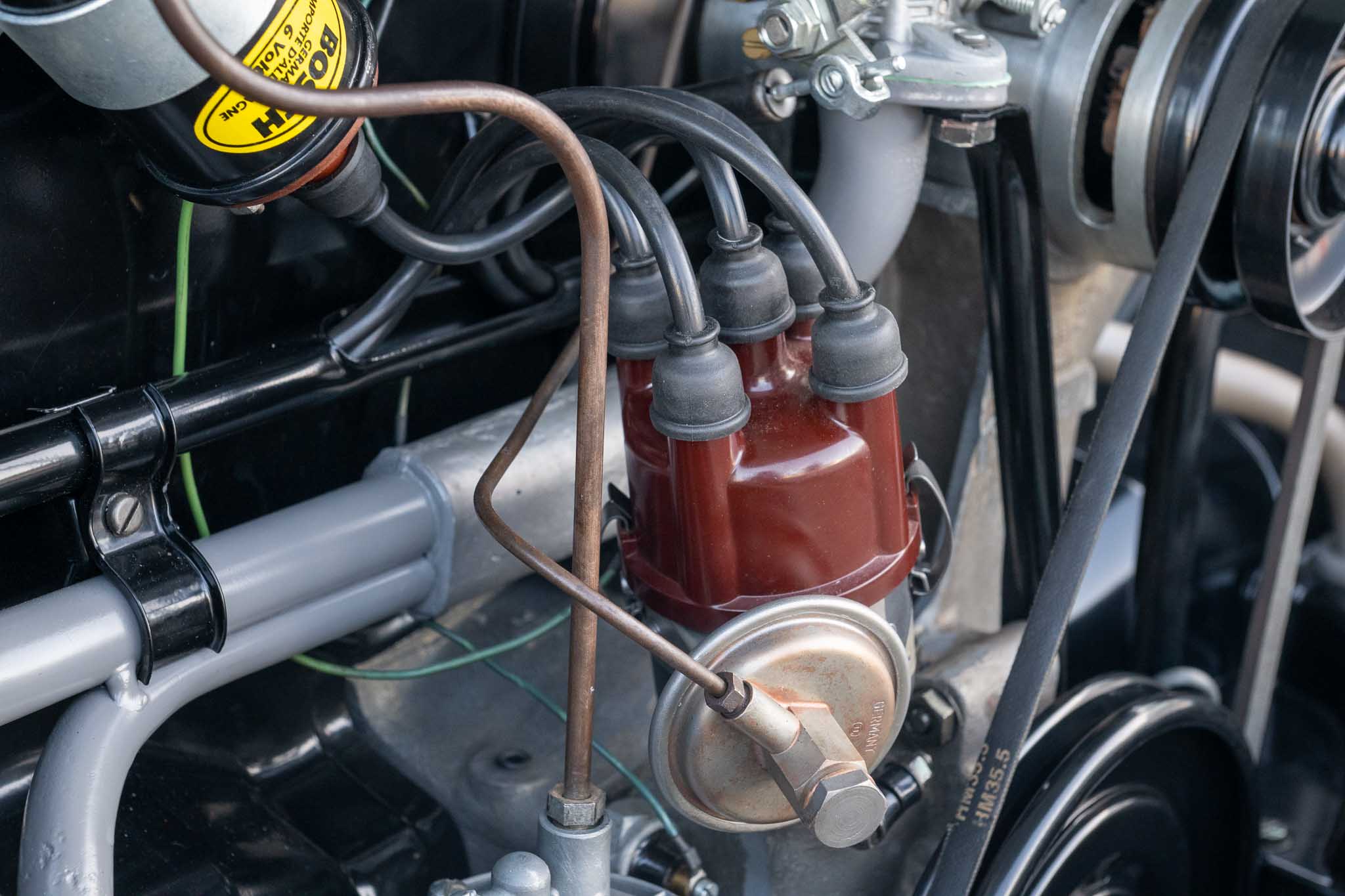

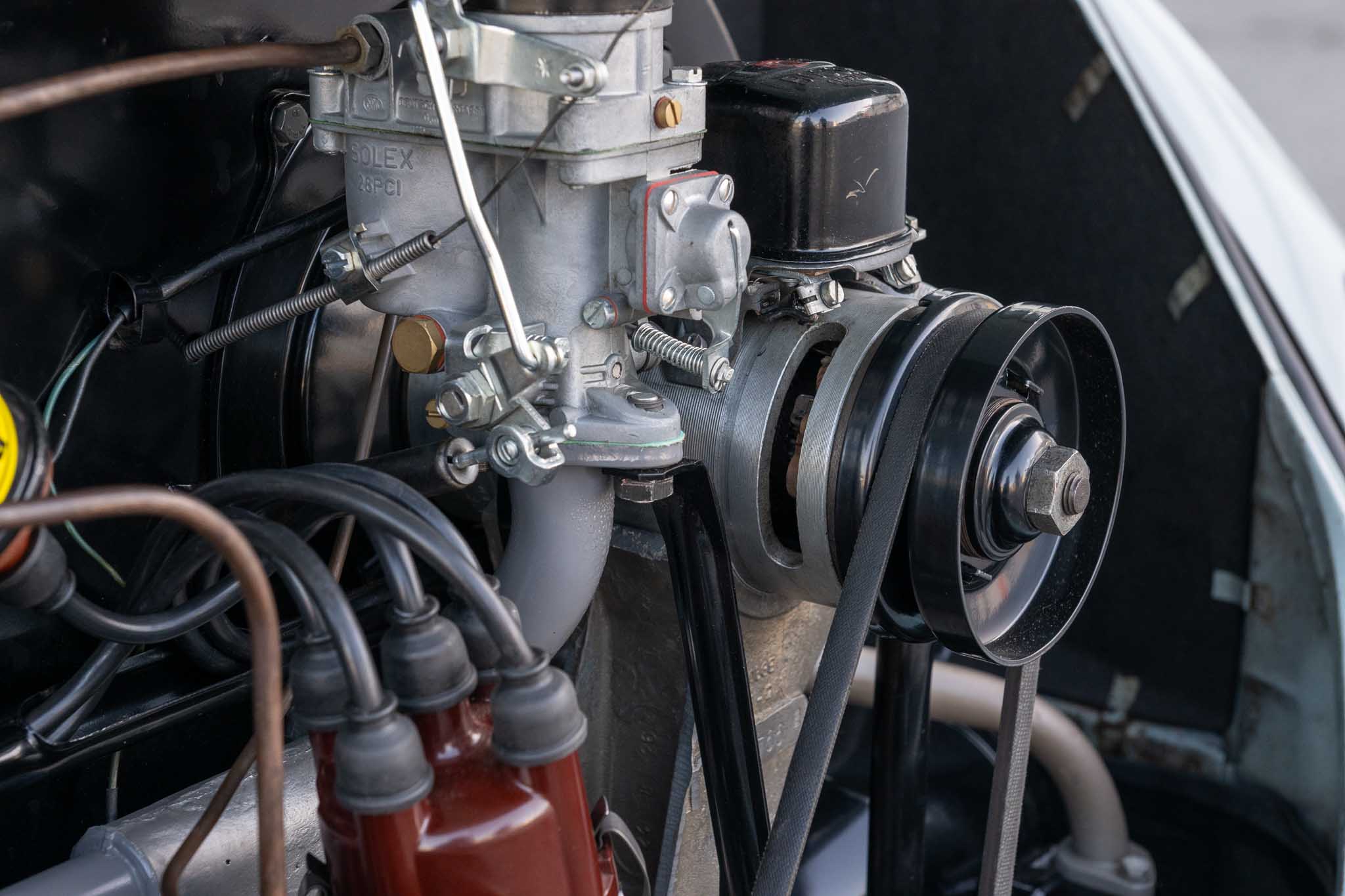

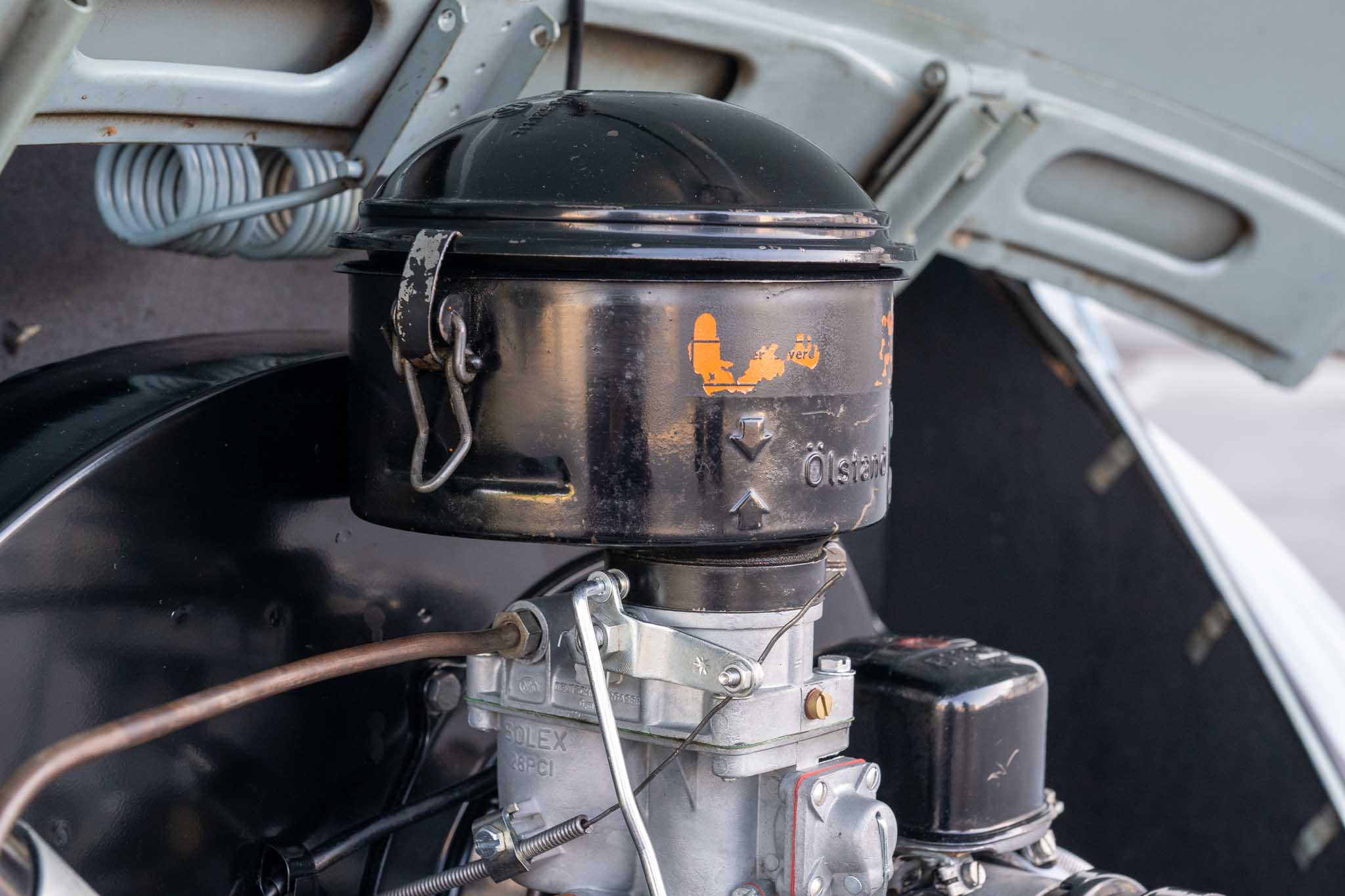

• Fuel Pump, Distributor, and Carburetor were rebuilt by Ed Fall
• Original hardware re-plated black zinc

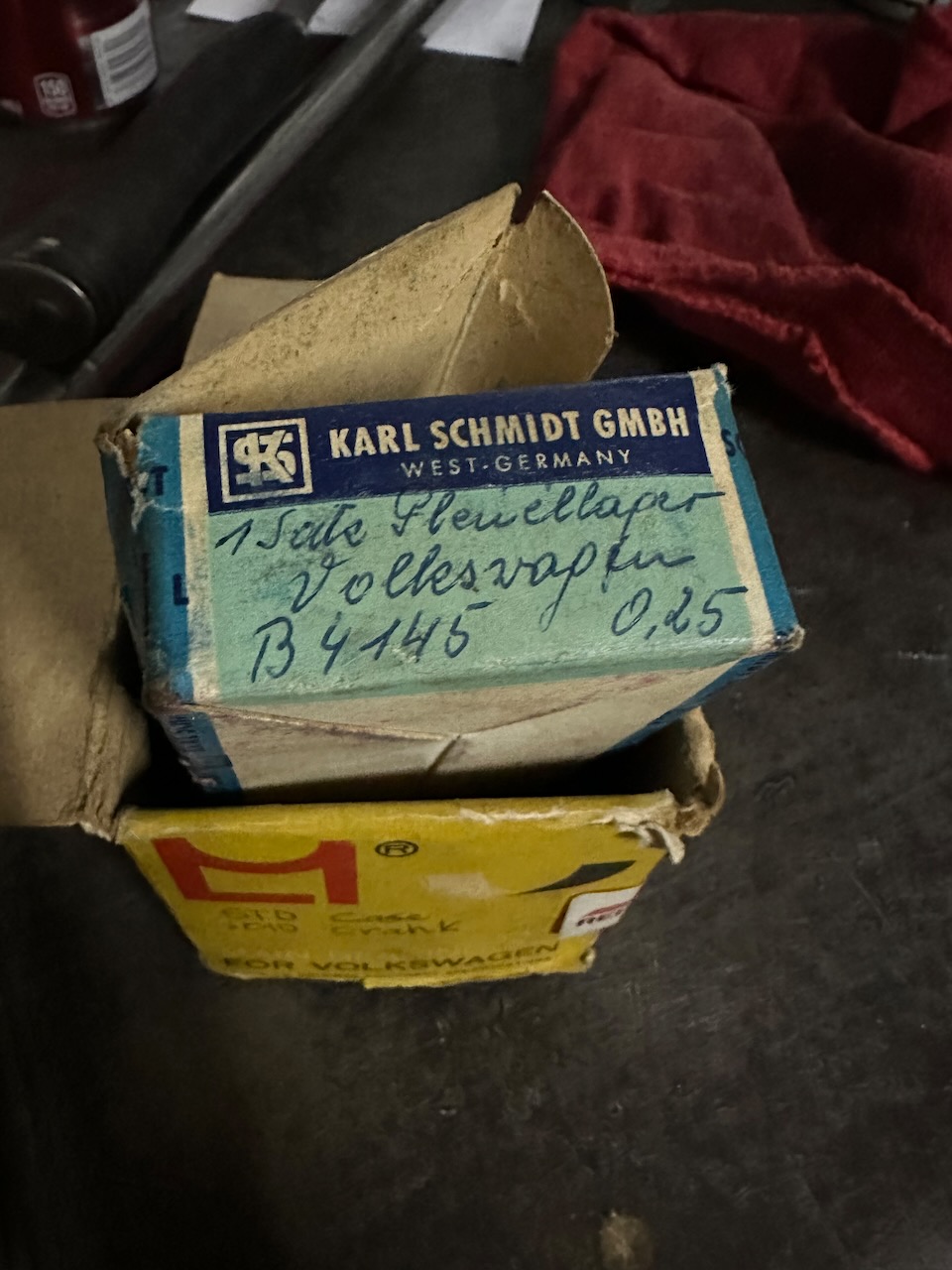

• Rod bearings are NOS Karl Schmidt’s .010
• Main bearings are NOS Metal Leve std/.010
• NOS intake manifold ceramic coated
• Engine meticulously assembled and tuned by George Schmidt
